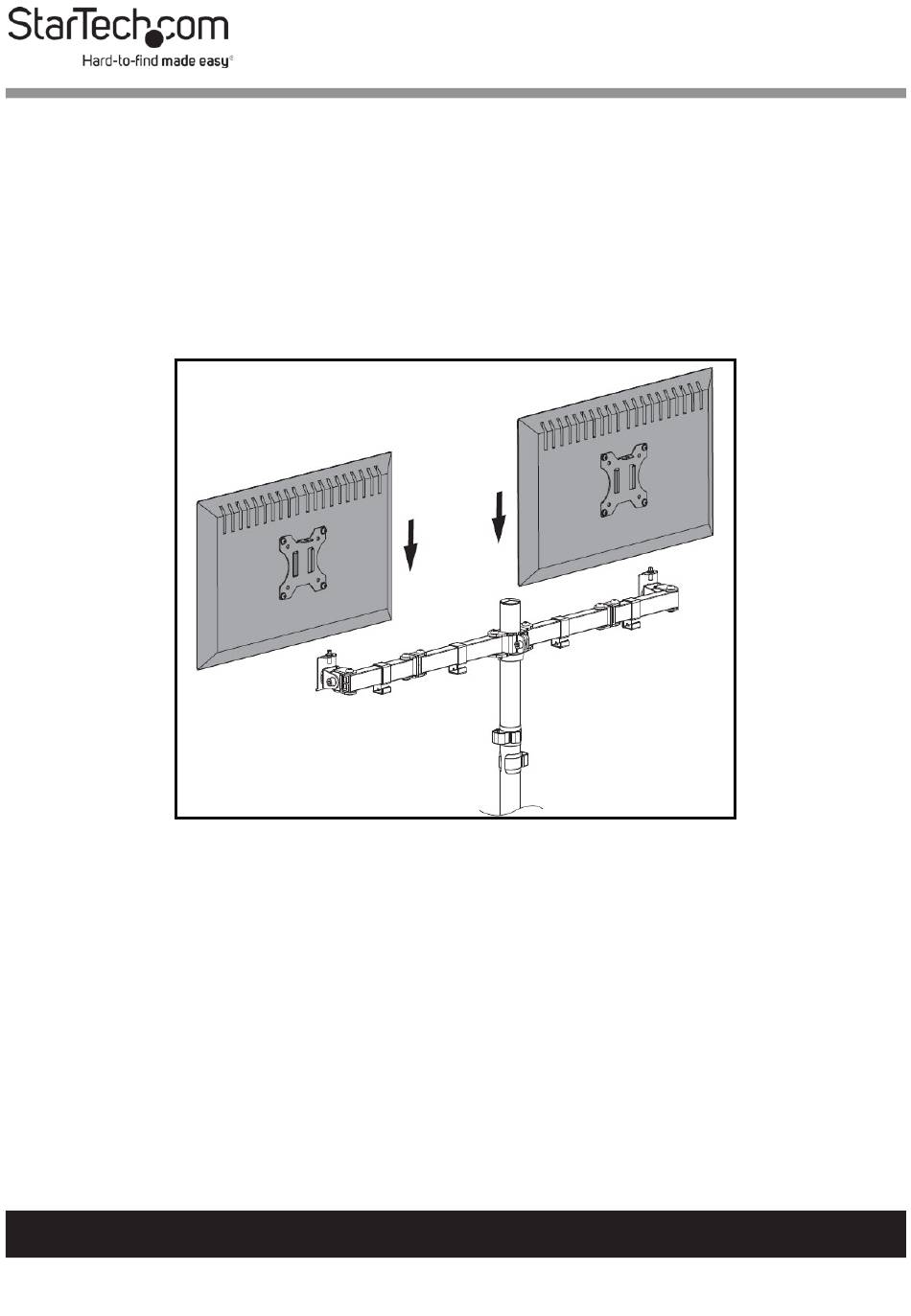

Mounting the Monitors
While supporting the weight of the Monitor, slide the VESA
1.
Mount down onto the Swivel Arm Assembly, aligning the
hole on the Mounting Flange (located on the VESA Mount)
with the Micro-Adjustment Screw Protrusion on the
Monitor Holder.
When the Mounting Flange on the VESA Mount is sitting
2.
on the Micro-Adjustment Screw Protrusion, mount
the Micro-Adjustment Knob on the top of the Micro-
Adjustment Screw Protrusion.
Insert the Micro-Adjustment Screw through the center
3.
of the Micro-Adjustment Knob and into the Micro-
Adjustment Screw Protrusion.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
