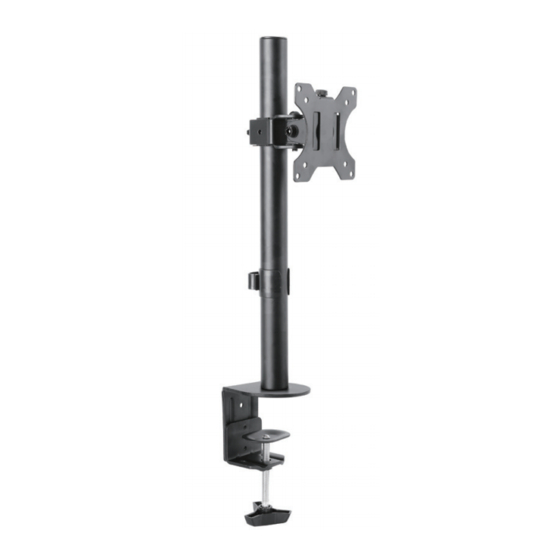

Single-Monitor Desk Mount
ARMPIVOTV2
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ARMPIVOTV2.
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ARMPIVOTV2
Summary of Contents for StarTech.com ARMPIVOTV2
- Page 1 Single-Monitor Desk Mount ARMPIVOTV2 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMPIVOTV2.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 注意 Warning statements Make sure to assemble this product according to the instructions. Failure to do so might result in 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤った場合に、 傷害を負う恐れ personal injury or property damage. や物的損害が発生する恐れがあります。 Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment.
-
Page 4: Table Of Contents
Package contents ............................4 Requirements ............................. 7 Assembly ....................7 Attach the ARMPIVOTV2 to your mounting surface ..............7 Attach the VESA pole clamp ........................11 Attach a monitor to the VESA monitor mount ................12 Attach the monitor to the VESA pole clamp ................... 14 Adjust the tilt angle of your monitor .................... -
Page 5: Introduction
Introduction Product diagram VESA monitor mount Pole Cable-management clip Desk clamp Instruction manual... -
Page 6: Product Dimensions
Product dimensions ±90° ±45° ±180° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 75x75 100x100 Weight capacity Up to 8 kg (17.6 lb.) Tilt +450 to -450 Screen size Between 330 mm and 813 mm (13 in. and 32 in.) Rotate +1800 to -1800 Swivel +900 to -900 Instruction manual... -
Page 8: Package Contents
Package contents VESA monitor mount VESA pole clamp Qty: One Qty: One Pole Pole screws Qty: One Qty: Three Desk clamp Grommet plate Qty: One Qty: One Instruction manual... - Page 9 Grommet collar Cable-management clip Qty: One Qty: One Rubber pads Thumbscrew Qty: Five Qty: One 4 mm hex key 6 mm hex key Qty: One Qty: One Instruction manual...
- Page 10 M4x12 mm screws M4x16 mm screws Qty: Four Qty: Four M5x12 mm screws M5x16 mm screws Qty: Four Qty: Four Washers Spacers Qty: Four Qty: Four 1 x instruction manual • Instruction manual...
-
Page 11: Requirements
Assembly Attach the ARMPIVOTV2 to your mounting surface You can use either the desk clamp or grommet mount to attach the ARMPIVOTV2 to your mounting surface. Use the desk clamp to attach the ARMPIVOTV2 Warning! Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. - Page 12 Desk clamp 4. Turn the knob on the desk clamp until you reach the thickness of the mounting surface that you’re attaching the ARMPIVOTV2 to. 5. Slide the desk clamp over the edge of the desk or table. 6. Turn the knob to tighten the desk clamp. (figure 3)
- Page 13 Warning! Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. This product can support the following weight: Up to 8 kg (17.6 lb.). Using the grommet mount to attach the ARMPIVOTV2 requires the assistance of a second person.
- Page 14 3. Remove the backing from the five rubber pads and affix them to the underside of the grommet collar. (figure 5) figure 5 Grommet collar Rubber pad 4. Position the grommet collar over the grommet hole in the mounting surface, and position the pole over the grommet collar so that the projection on the grommet collar fits into one of the two holes on the pole.
-
Page 15: Attach The Vesa Pole Clamp
5. Thread the grommet plate onto the rod. 6. While another person holds the pole and the grommet collar upright, on the underside of the mounting surface, thread the rod up through the grommet hole and into the pole. 7. Turn the knob clockwise to tighten the grommet mount. (figure 7) figure 7 Pole 10 to 75 mm... -
Page 16: Attach A Monitor To The Vesa Monitor Mount
6 mm hex key Attach a monitor to the VESA monitor mount To accommodate different monitor sizes, the ARMPIVOTV2 comes with four sets of screws that are different lengths and diameters, and a set of spacers. To decide if the spacers are necessary and to select the appropriate screws for the type of monitor that you’re using, complete the following:... - Page 17 figure 10 VESA monitor mount Top of the monitor Washers M4x12 mm screw OR Spacers M4x16 mm screw OR (if required) M5x12 mm screw OR M5x16 mm screw Instruction manual...
-
Page 18: Attach The Monitor To The Vesa Pole Clamp
Attach the monitor to the VESA pole clamp Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself. 1. Carefully lift up the monitor and slide the VESA monitor mount on the back of the monitor into the VESA pole clamp attached to the pole. -
Page 19: Adjust The Tilt Angle Of Your Monitor
Adjust the tilt angle of your monitor 1. To change the angle that the monitor is tilted at, use the 6 mm hex key to turn the screw in the side of the VESA monitor mount counterclockwise. 2. When the screw is loose, position the monitor at the angle that works best for you. 3. -
Page 20: Organize Your Cables
Organize your cables • Run your cables along the pole and through the cable-management clip. (figure 15) figure 15 Pole Cable-management clip Adjust the angle of your monitor 180° +45° 360° -45° Instruction manual... -
Page 21: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 22 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
