When the Lower Arm is attached to the Base. Align the
19.
Mounting Peg on the Upper Arm with the Mounting Hole
on the Lower Arm.
Insert the Mounting Peg on the Upper Arm into the
20.
Mounting Hole on the Lower Arm.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

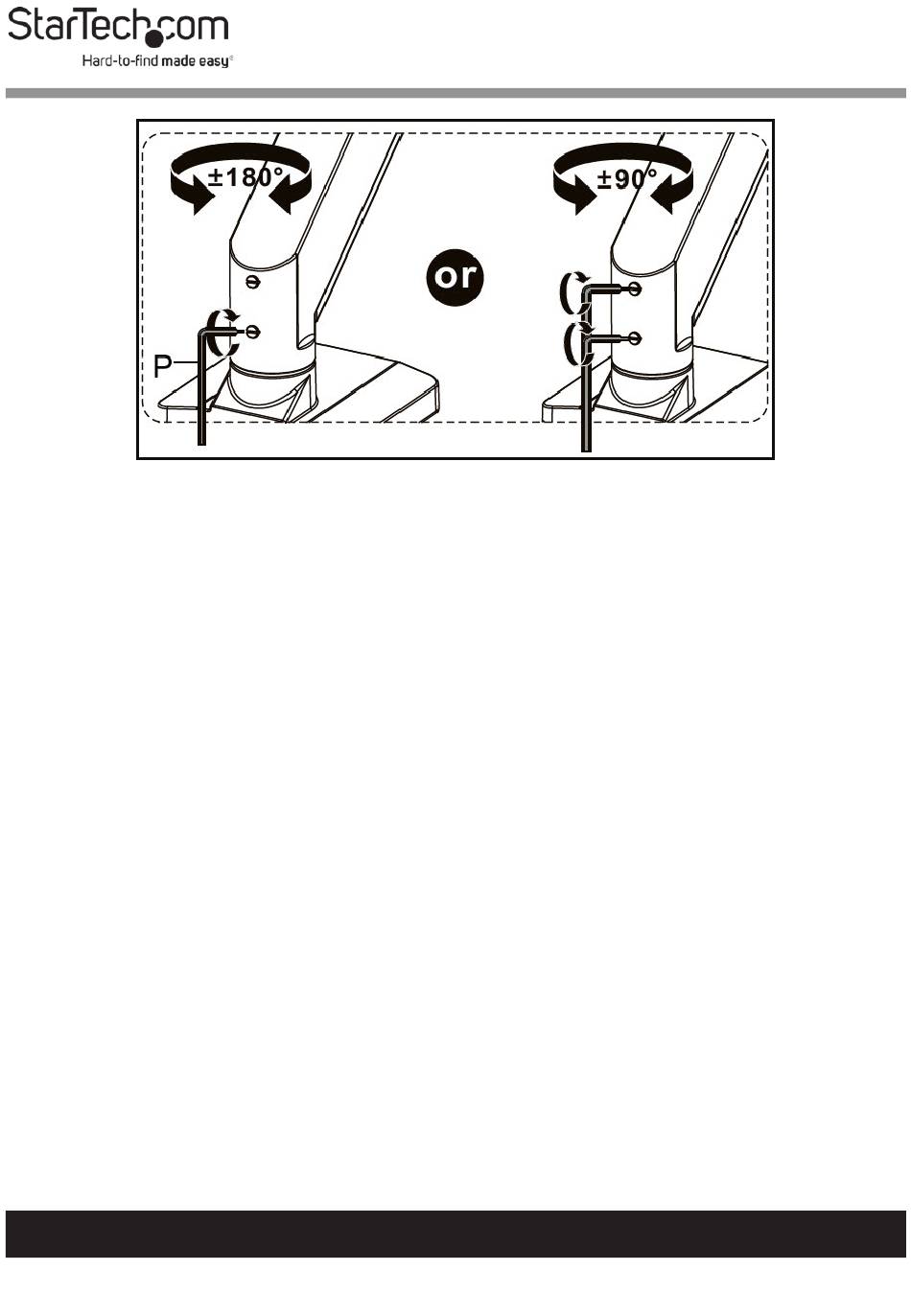

Setting the Arm Rotation
24
