START-UP

The Axioskop 2 FS plus / Axioskop 2 FS
himself. However, it is also possible to have the microscope installed or converted by Zeiss service staff
against an extra charge.
Before installation and start-up of the microscope, make sure to carefully read the Notes on
instrument safety.
2.1

Initial start-up

2.1.1

Unpacking and installation of the microscope

The basic instrument is supplied in two polyethylene cases in cardboard packaging.
One case contains the stand and the major modules (such as objectives, eyepieces, tubes, condensers,
etc.). The second case contains the HAL 100 and HBO 103 illuminators with their relevant power supply
units, a tools bag and the control unit and the keypad (for the motorized version).
The following modules are factory-attached to the microscope stand: stage carrier with mechanical
stage, universal mounting frame, filter mount and SENARMONT polarizer, technique modules and the
epi-fluorescence equipment with adjusting aid.
If the equipment was ordered for applications in
differential interference contrast, the DIC sliders
are already inserted in the objective slider and
centered.
• Use the carrying handle (2-1/2) to remove the
stand with polyethylene components from the
cardboard packaging. Remove the polyethylene
components from the stand. Remove all the
other instrument
packaging.
• Use delivery note to check the consignment for
completeness.
• Place instrument (2-1/4) on a vibration-free, flat
worktable on
(2-1/5). The size of the microscope mat is
500 mm x 400 mm (width x length).
• Orderly dispose of original packaging or keep it
for storage or return of the instrument to the
manufacturer.
B 40-076 e 02/01

Initial start-up

can be installed, converted and started up by the customer
MOT
components from
the microscope
START-UP
the
mat

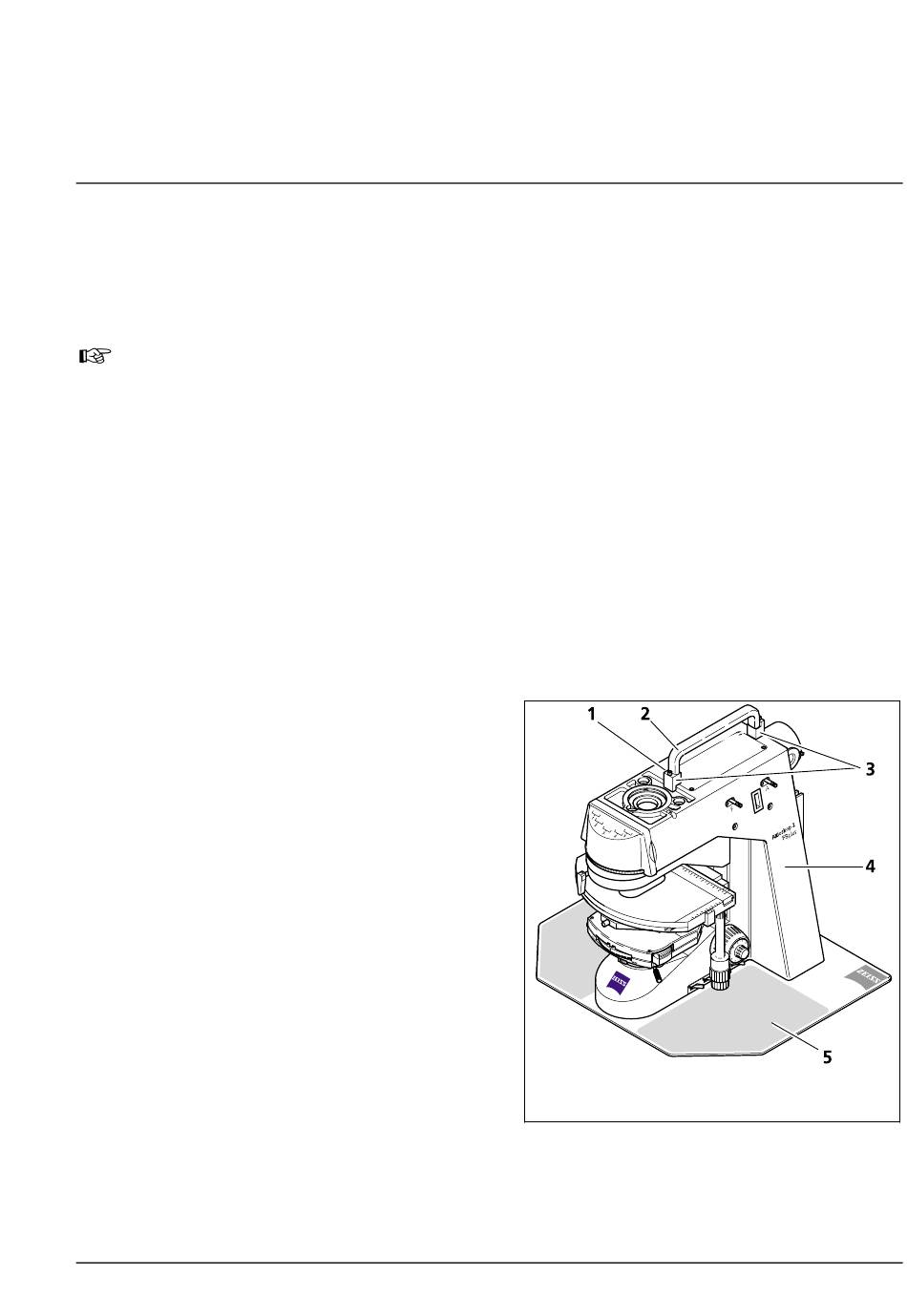

Fig. 2-1 Setting up the microscope
