Zeiss Axioskop 2 FS plus Manual page 61

Axioskop 2 FS plus
Axioskop 2 FS
MOT
• Loosen the fixing screw (2-40/5) on the heat
sink (2-40/6) and remove heat sink. If you
cannot remove (or replace) the heat sink, take
out the screw completely, screw it into the
neighboring threaded hole and use it to press
out the heat sink.
• Dispose
of defective
regulations.
• Place new lamp with the smaller diameter into
the heat sink until it touches.
When inserting, make sure to use
the hole with the correct diameter
and do not put any pressure on the
lamp.
Correct placement in the heat sink is
indicated with H (for HBO) or X (for
XBO).
• Clamp fixing screw onto heat sink.
• Place new lamp (2-40/1) with heat sink into the
appropriate position in the lamp socket (2-40/2)
while pressing down on the spring handle
(2-40/4). Make sure that the feed line to the
heat sink is free on the side. Release spring
handle. Do not put any pressure on the lamp.
• Place lamp housing (2-39/1) on the lamp mount
(2-40/3) and tighten with clamping screw
(2-39/2).
• Connect HBO 103 plug and line plug to the
HBO 100 W transformer.
• Adjust HBO 103 illuminator as described in
section 2.1.14 (3).
B 40-076 e 02/01
START-UP
Attachments and conversions
lamp according to

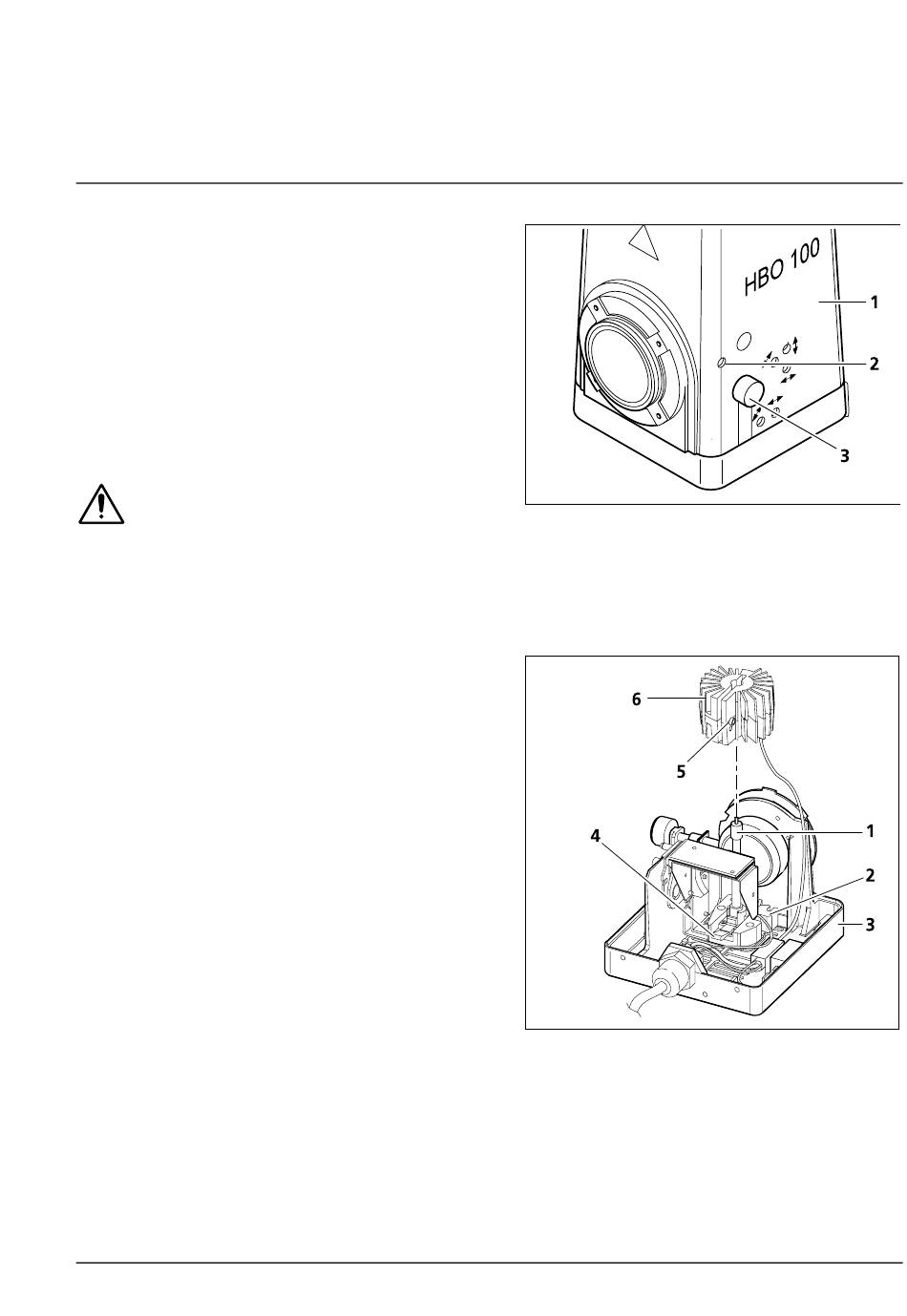

Fig. 2-39 Removing HBO 103 lamp housing
Fig. 2-40 Changing the HBO 103 W/2 mercury
pressure short-arc lamp
Carl Zeiss
2-29
