Attachment Of The Condenser - Zeiss Axioskop 2 FS plus Manual

Axioskop 2 FS plus
Axioskop 2 FS
MOT
2.1.6

Attachment of the condenser

It is recommended to remove the stage carrier
before you insert the condenser.
• Remove the stage carrier (if not yet done - see
2.1.4) and safely place it on the table.
• Use lever (2-6/8) to fold out the front lens on
the condenser. Unscrew both centering screws
(2-6/3) until their ends are no longer visible.
• Move condenser carrier (2-6/2) to the lowest
position via drive for height adjustment (2-6/5).
• Insert condenser (2-6/1) between condenser
carrier (2-6/2) and stage carrier (2-6/4). Orient
the locking screw on the underside of the
condenser in the direction of the groove
(2-6/7).
• Press dovetail of condenser against the spring
mount (2-6/6) of the condenser carrier until the
condenser can be placed on the condenser
carrier horizontally.
• Let condenser go smoothly; the screw will lock
in position in the groove (2-6/7) at the front.
• Screw in centering screws until they engage in
the dovetail of the condenser.
Proceed in the same way when attaching the
achromatic condenser 0.8 H D Ph DIC (2-7/1). The
item numbers 2 to 7 in Fig. 2-7 are identical to
those in Fig. 2-6.
Attach stage carrier again only after
insertion of the DIC slider.
B 40-076 e 02/01
START-UP
Initial start-up

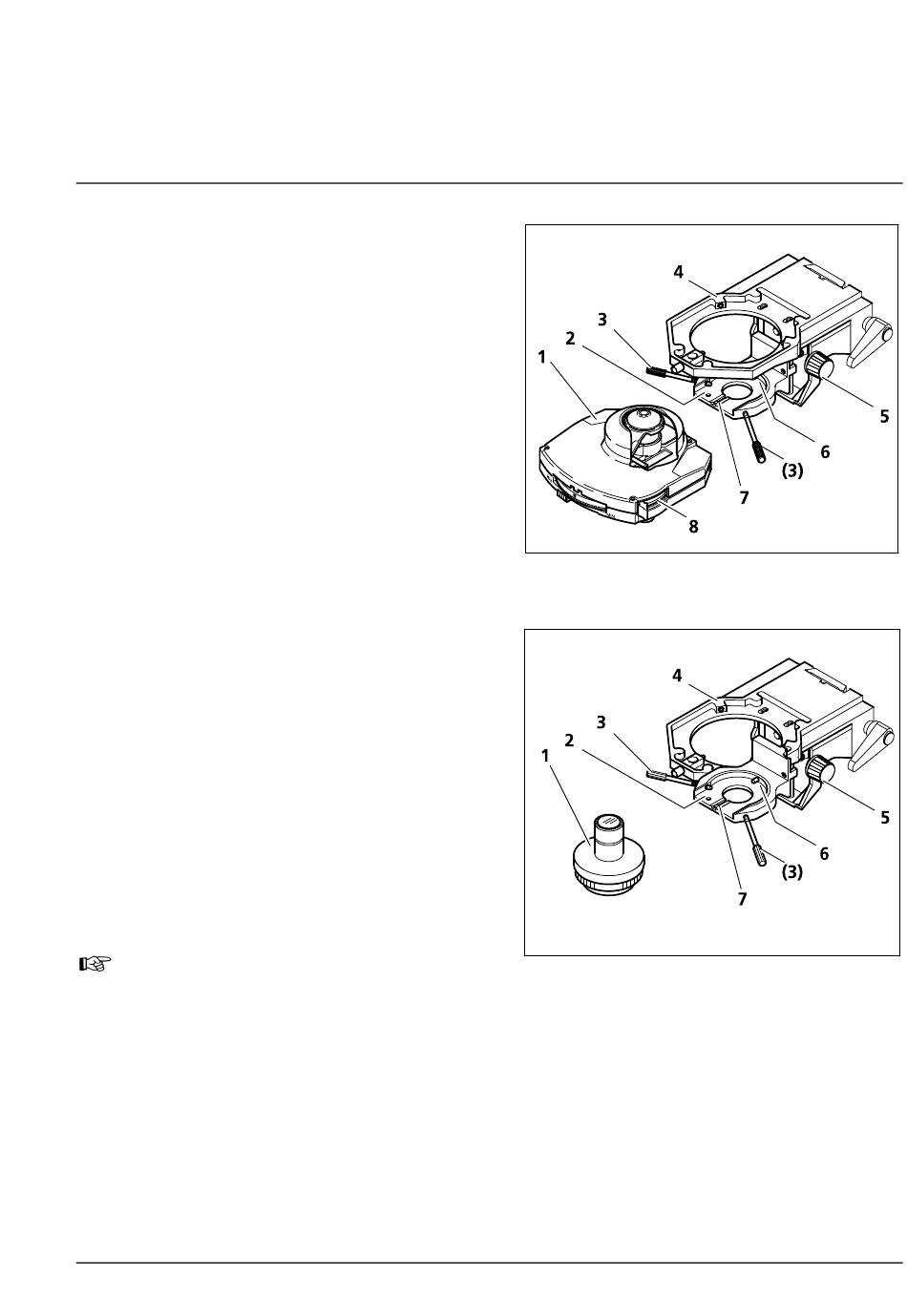

Fig. 2-6
Fig. 2-7
Attachment of universal condenser
Attachment of achromatic
condenser 0.8 H D Ph DIC
Carl Zeiss
2-9
