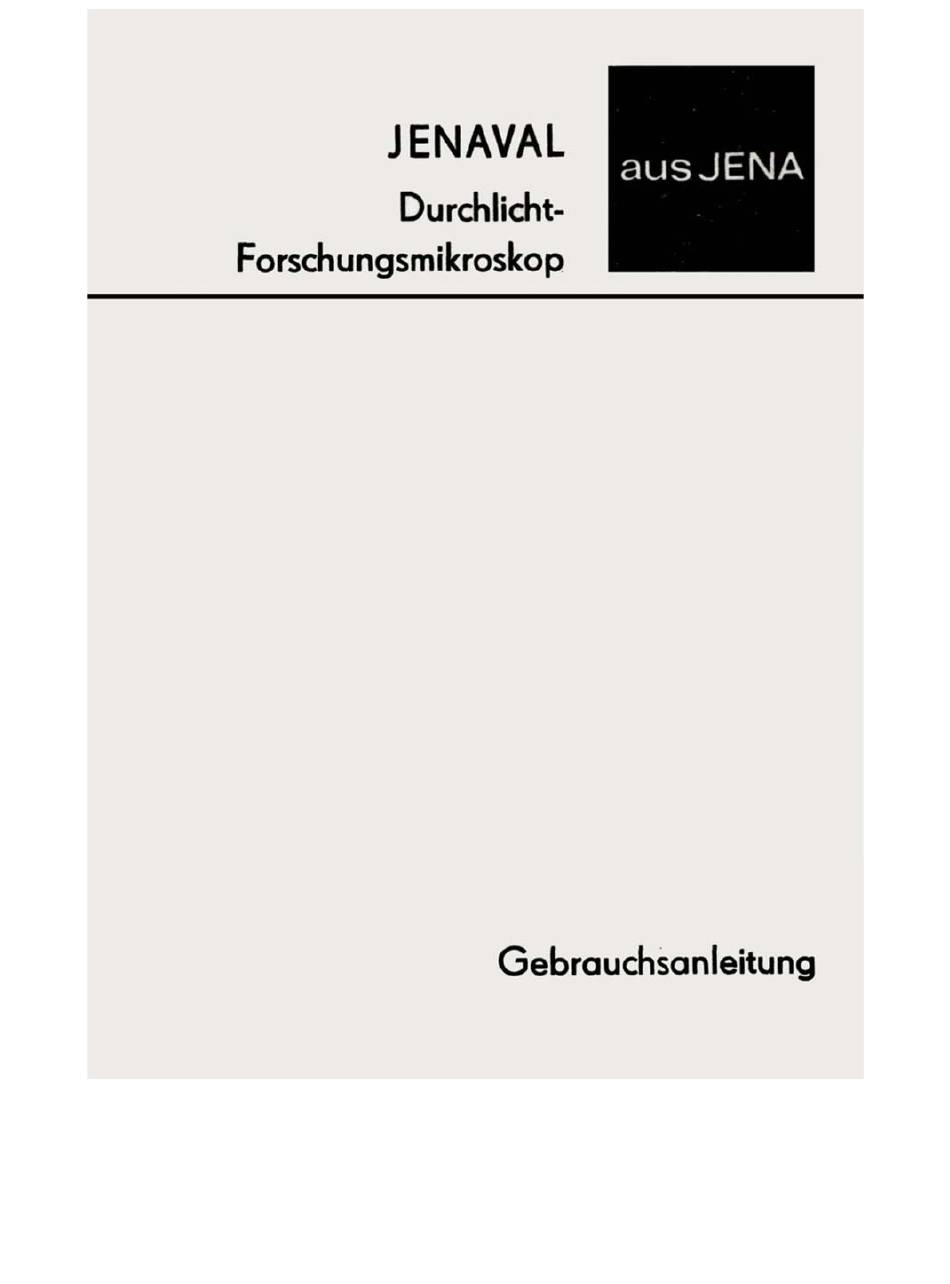

- Page 1 By constant advancement of our products deviations from the pictures and the text of this block letters can occur. The rendition - also in part - is permitted only with our permission. The right of the translation we reserve ourselves. For publications we make reproductions available of the pictures, so far available, gladly. JENAVAL Transmitted light research microscope...
- Page 2 Instructions (1) basic adjustment the Kontrasttubus equipment of the guns with modulators: • They receive two illustration-lateral modulator guns (fig. 5/43) with the Kontrasttubus. In order to save adjusting expenditure, one is equipped this gun also firmly inserted phase contrast modulators of 100 pos KT and 100 neg KT for the objective REAR ONE 100x. All remaining eyes of the guns can after free choice and in free one on the other follow with modulators KT for positive and negative phase contrast, differential interference contrast and central dark field to be occupied.
- Page 3 (3) necessary requirements of the preparations - Slide formats: The object owners at the JENAVAL tables are 26 mm co-ordinated with object carrier of the format 76 mm x. Tighten right object owner part after loosening of the clamping screw into suitable position schie ben and screw with en idiom of shorter slides again.
- Page 4 lead with these objectives to decreased image quality, drying of systems of high aperture reacts very sensitively! Uncovered preparations require the observation with whether jektiven, which - with apertures >0,25 - is counted for this purpose. Marking e.g.: GF-PA 50x/0,80 ∞/0 (see to it Bestelliste). One observes at present inzunehmendem measure also uncovered biomedical preparations (large series of celldeleted or thin cut).
- Page 5 • And/or scolded toggles (fig. 4/36) on symbol pull linkage out ( fig. 2/19) (Bertrandlinse switched on) See into the eyepiece; focus Bertrandlinse with toggle at the linkage (fig. 2/19) and/or with linkage (fig. 4/36), until objective pupil (lit circle limited surface sharply), aperture diaphragm or contrast modulators sharply he seem. , Necessary handles observe pupil for setting-up ...
- Page 6 Objective lens 1/1.6 not in connection with other objectives switch on, it comes off no picture! In the standard equipment JENAVAL without Kontrasttubus is the position o at the Vergrößerungswechsler by a screen abge covers. The microscope can be re-tooled with the mechanism large field plan achromatic objective 1x/0,03 spec.
- Page 7 or - if without eyepiece plate to be worked was - the edge of the field screen appears sharp. Afterwards object picture with focus- rubbed for the right eye sharply places. Object picture for the left eye with the diopter ring sharply place (not with Feintrieb!). (10) the work with the voltage regulator for light HS 6/25 __________________________________ The operating voltage for the light HS 6/25 is steplessly placable over the range from ≈...
- Page 8 40x and REAR ONE 100x; with objective 12,5x is only a large ring watch) the small bright ring is visible: strict phase contrast (with objectives 25x, 40x and REAR ONE 100x) if the picture of the aperture diaphragm centrically to Bildder ring screens is not appropriate, for aperture diaphragm with centering screws place behind (fig.
- Page 9 Analyzer DIK D into the outbreak of the objective change-over switch push (fig. 1/5) in to attack. Filteraufnahme (fig. 1/12) forward from the Stativfuß take off and to its place the polarizer DIK D postpone; trick cash polarizer in ...
- Page 10 Analyzer DIK D in the outbreak of the objective change-over switch push (fig. 1/5) in to attack. Bertrandlinse switch on (► (5)). Aperture diaphragm with centring screw center (fig. 1/9) to the pupil. Pin levers in one of the two slots in the ZwischenringDIK D would bring in and thus the knurled internal ring so for a ...
- Page 11 Positive and negative phase contrast, central dark field Lightinglateral modulator for phase contrast and picture lateral modulator for phase contrast KT einscnalten; Polarizer, λ-und λ /4 plate switch off; Green filters switch on. Bertrandlinse switch on. If necessary correct cover of the modulator figures (with ring screen). Aperture diaphragm ...
- Page 12 Suggestion for fluorescence dark field in the short-wave light with DF-condensor lens 1,2: With actual working time > the permeability of the ring lens post can leave 1000 hours with HBO lights. The ring lens is as spare part in the offer. Vorschraubring under the ring lens unscrew, ring out lens take (falls out with careful Aufklopfen of the condensor lens ...
- Page 13 tightening the clamping screw fix. For the use of the different mf-AKS-mechanisms in en connection with JENAVAL you orient yourselves please in serving guidance to micro-photographic putting on camera the system mf-AKS, which is attached to the mechanisms. (18) The secondary observation tube With this mechanism the microscopic picture for two observers sitting next to each other becomes at the same time visibly ge makes.
- Page 14 Insert from eyepiece plates into placable eyepieces In each case one of the eyepieces of all standard equipments JENAVAL is placable. Thus the microscopic picture and the picture of the line figure of an eyepiece plate can (e.g. Measuring plate, cross-line, photo format figure) to be independently focused and seen at the same time sharp.
- Page 15 (20) Streckenmessunqen in 2-Richtung (parallel to-optical axle) With limited requirement at accuracy can such Mes sungen with the Feintrieb to be accomplished. One proceeds thereby as follows: Measuring object for observation furnish, after Köhler light up; Objectively as high an aperture as possible use (the more largely ...
- Page 16 (25) Condensor lens change JENAVAL can be equipped - depending upon the microscopic work project - with different condensor lenses. Except achromatic aplanatischer) condensor lens 0.9 the standard out arms are available: aplanatischer condensor lens 0.9 (for transmitted light fluorescence) achromatic aplanatischer condensor lens head 1,3DF-Kondensor 0.12- 0.85 for dark field with objectives 6,3x/0,12 to 50x/0,80DF-Kondensor 1.2 for dark field with objectives 25x/0,50bis REAR ONE 100x/l,...
- Page 17 to the right in correct fit fold, downward attack taps to mount leave. • Knurled thumb screw tighten (to the work with DF condensor lens 1.2 ► (14) Change against aplanatischen condensor lens 0,9 One proceeds in a general manner, how under (21) described, in place of the condensor lens upper section becomes the entire condensor lens ausge exchanges.
- Page 18 Chamber thereafter one while en closed hold. Otherwise cartridge replacement. (28) Maintenance JENAVAL has a long life span. Maintenance and servicing are simple. Consider please the following references: Carefully, before direct exposure to the sun, temperatures treat equipment over + 50 °C, frost, humidity, chemically aggressive ...
- Page 19 To foam material packing thus put tape to remove that the impressing are cash les. Covers take off. Standard equipment JENAVAL contrast/GF Pa Stand (fig. 1/10), light HS 25 Watts with intermediate optics, filter house and filter change-over switch (fig. 1/18, 15) as well as rear wall D and lens turret (fig.
- Page 20 Polarizer DIK D (fig. 5/48) according to illustration 5 into the swallow guidance amMikroskopfuß push in, until to the rear push attack. Assembly of the picture and shine-lateral modulator gun (fig. 5/43) with Modula gates (fig. 6/55) as well as further assembly and basic adjustment of the equipment are under (1) described.
- Page 21 (10) must the red marked cheese head screw (trans haven protection), which is at the lower surface of the Kontrasttubus KT, to be unscrewed. With Nichtbeachten of this reference the change over switch contrast loop can not be operated/directly (38)! Insert to block letter No. 30-G0020a JENAVAL...
