2.2.3 Changing the DIC prism in the
universal condenser
• To loosen the cover on the condenser underside
(2-32/1), loosen both grub screws using the
SW 2 screwdriver
Position the turret disk containing the DIC prism
to be exchanged in the exchange opening and
hold it on the knurled ring.
• Unscrew retainer ring using the so-called
double-function tool (2-32/4).
• Now screw the tool in the prism mount
(2-32/3) with the threaded side (2-32/4) and
pull out DIC prism (2-32/2).
• Remove DIC prism (2-32/2) from the tool and
screw on the new, required DIC prism.
• Installation of the DIC prism is made in reverse
order. Make sure that the DIC prism is oriented
correctly (groove 2-32/5 must engage in the
pinion of the mount). Make sure that the
knurled ring of the turret disk is labelled
correctly.
2.2.4

Attachment of filter mount

• Hold filter mount (2-33/5) parallel to the
underside of the condenser carrier (2-33/3) and
screw holding pin (2-33/4) of the filter mount
(2-33/5) into the front threaded hole on the left
below the condenser carrier (2-33/3) until stop
using the SW 2 angled Allen key (2-33/6).
• Use adjusting lever (2-33/1) to screw stop bolt
(2-33/2) into the rear threaded hole of the
condenser carrier until stop.
B 40-076 e 02/01
Attachments and conversions
and remove the
START-UP
cover.

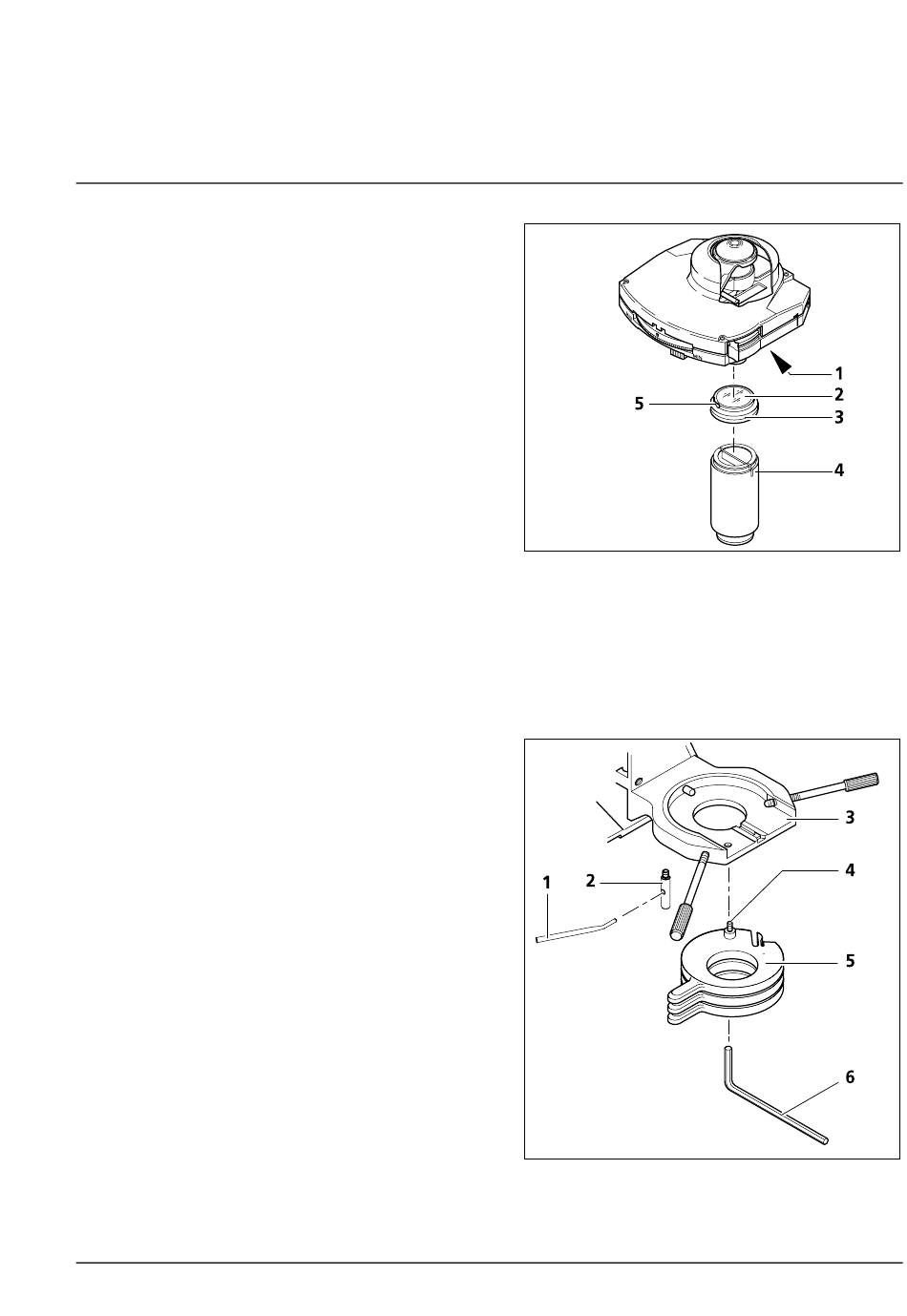

Fig. 2-32
Fig. 2-33
Changing the DIC prism

Attachment of filter mount
