2.1.8 Attach stage carrier and align its
height
Please proceed as follows to attach the stage
carrier to the stand:
• Hold the stage carrier (2-9/1) with your left
hand and insert it in the dovetail guide (2-9/2)
on the left of the stand in a slightly inclined
position.
• Hold the stage carrier as horizontally as possible
and press it against the guiding surfaces on the
left side. Turn the stage carrier to the right to
enable also the right side to engage in the
dovetail mount of the stand.
• Slightly tighten the clamping lever (2-9/4) with your right hand.
• Depending on the thickness of the cover slips used, align the stage carrier with the top (low cover
slips) of the marking scale (2-9/3) or the bottom (high cover slips) and tighten clamping lever (2-9/4)
without exerting too much pressure.
The orientation of the clamping lever of the stage
carrier can be selected as required:
• Press clamping lever (2-10/1) against the spring
until stop (in the direction of the stage carrier).
• Turn the clamping lever in the required angular
position.
• Release clamping lever until it clickstops in
position again.
B 40-076 e 02/01
START-UP
Initial start-up

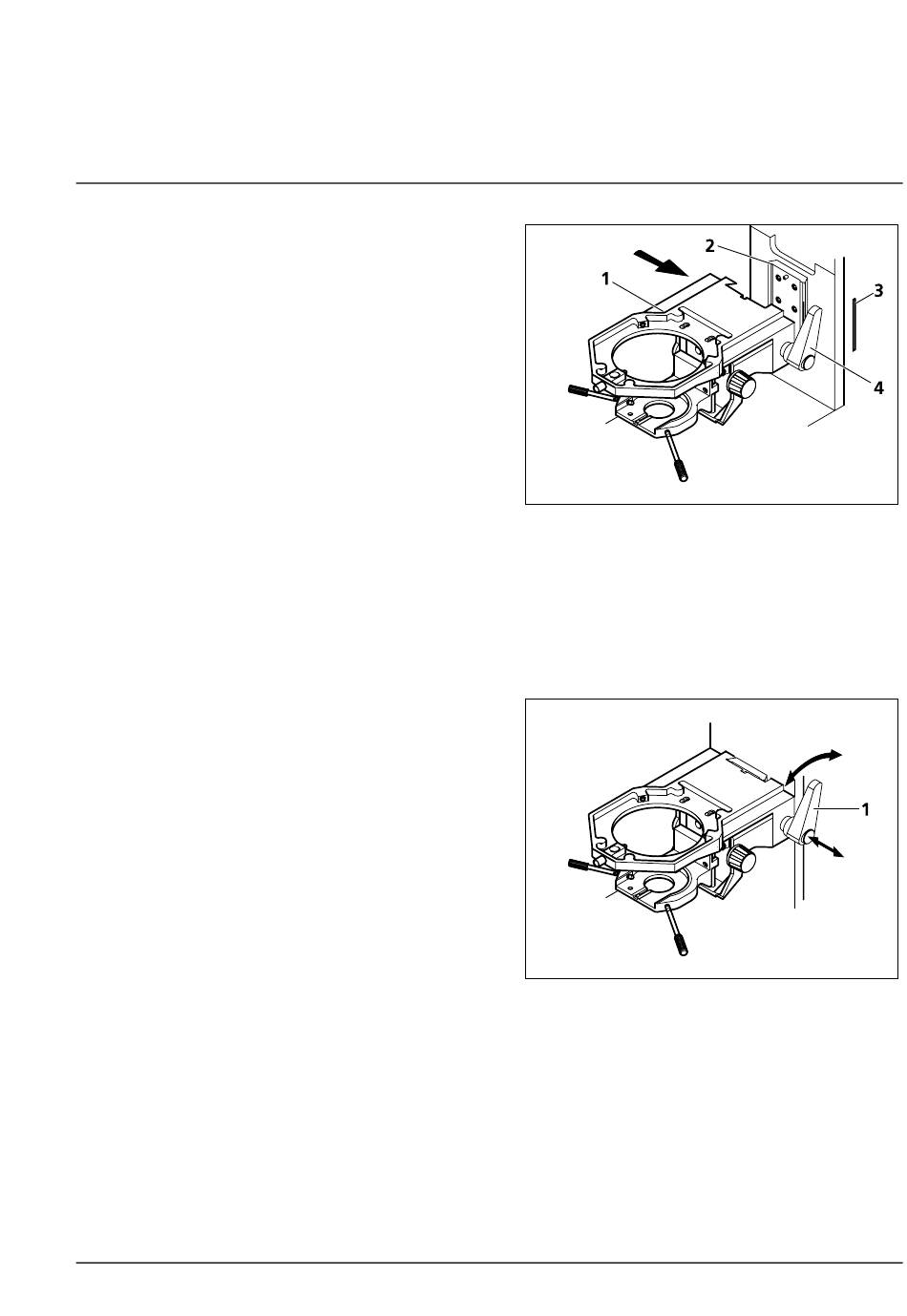

Fig. 2-9
Fig. 2-10
Attachment of stage carrier
Change the orientation of the
clamping lever
Carl Zeiss
2-11
