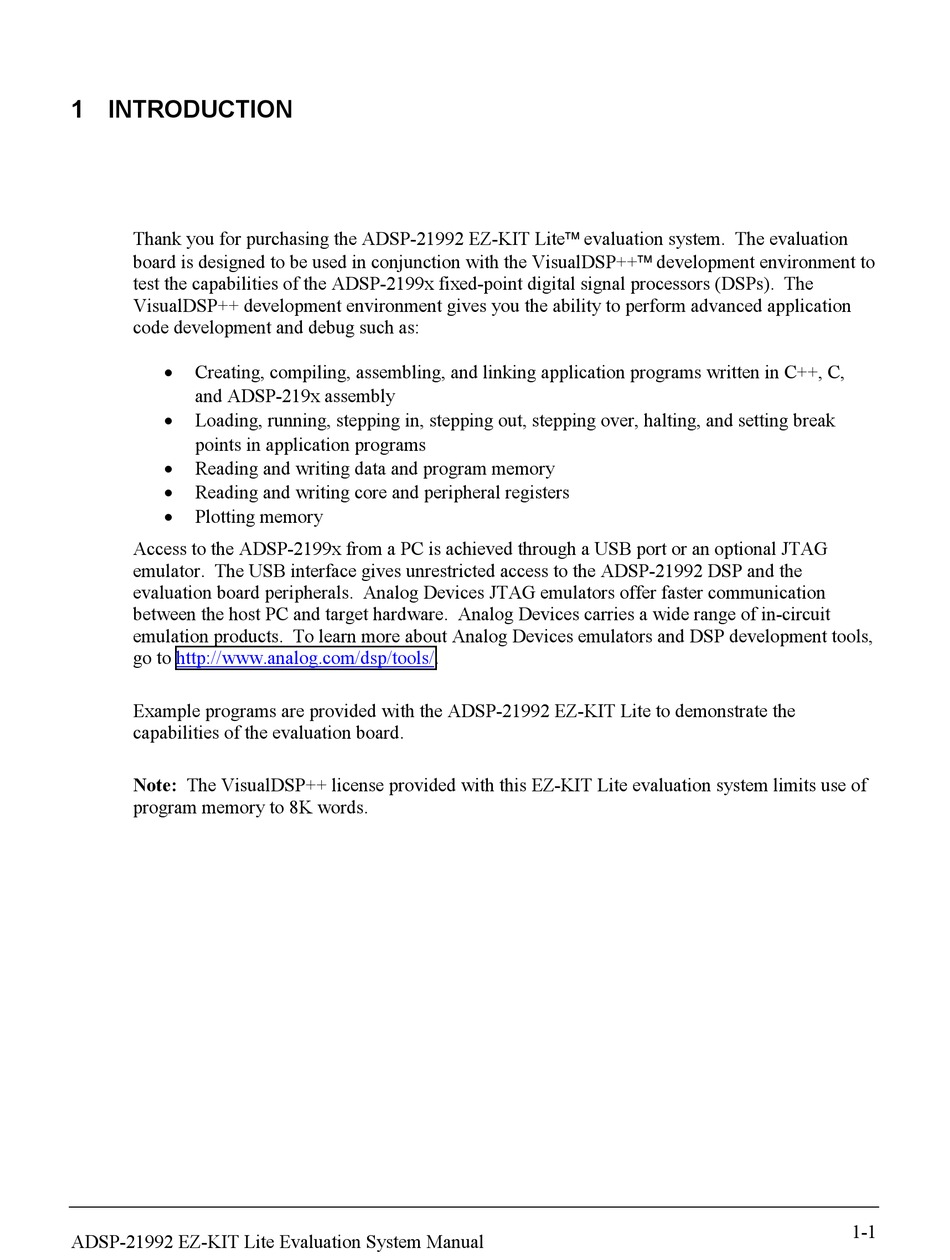

1 INTRODUCTION

Thank you for purchasing the ADSP-21992 EZ-KIT Lite evaluation system. The evaluation
board is designed to be used in conjunction with the VisualDSP++ development environment to
test the capabilities of the ADSP-2199x fixed-point digital signal processors (DSPs). The
VisualDSP++ development environment gives you the ability to perform advanced application
code development and debug such as:
•
Creating, compiling, assembling, and linking application programs written in C++, C,
and ADSP-219x assembly
•
Loading, running, stepping in, stepping out, stepping over, halting, and setting break
points in application programs
•
Reading and writing data and program memory
•
Reading and writing core and peripheral registers
•
Plotting memory
Access to the ADSP-2199x from a PC is achieved through a USB port or an optional JTAG
emulator. The USB interface gives unrestricted access to the ADSP-21992 DSP and the
evaluation board peripherals. Analog Devices JTAG emulators offer faster communication
between the host PC and target hardware. Analog Devices carries a wide range of in-circuit
emulation products. To learn more about Analog Devices emulators and DSP development tools,
go to http://www.analog.com/dsp/tools/.
Example programs are provided with the ADSP-21992 EZ-KIT Lite to demonstrate the
capabilities of the evaluation board.
Note: The VisualDSP++ license provided with this EZ-KIT Lite evaluation system limits use of
program memory to 8K words.
