3. Connect your power supply to P1 on the EZ-KIT Lite board. The ADSP-21992 EZ-KIT Lite
board contains a 5-way terminal block for connection of external power supplies. For correct
operation, the following supplies are required:
Regulators on the board provide the required +3.3V, +2.5V, and ±2.5V.
4. Connect the USB cable to an available full-speed USB port and to P11 on the ADSP-
21992 EZ-KIT Lite board.
5. Follow the USB driver installation instructions in section 2.4.4.

2.4.4 Install the EZ-KIT Lite USB Driver

The EZ-KIT Lite evaluation system can be installed on Windows 98, Windows 2000, and
Windows XP. One full-speed USB port is also required. Section
on Windows 98. Section
describes the installation on Windows XP. The following installation procedures use the ADSP-
21990 as an example. Figures 2-5, 2-9, 2-14, and 2-17 display "ADSP-21990 EZ-KIT Lite" if
connected to an ADSP-21990 EZ-KIT Lite board, but display "ADSP-21992 EZ-KIT Lite" when
connected to a ADSP-21992 EZ-KIT Lite board.
ADSP-21992 EZ-KIT Lite Evaluation System Manual
PF0 – PF15 PF0 – PF15
CR1 CR1 CR1 CR1
JP4 JP4 JP4 JP4
U3 U3
JP3 JP3 JP3 JP1 JP1 JP1
1 2 3 1 2 3 1 2 3 JTAG JTAG JTAG JTAG
JP2 JP2
1 1 1 1
3 2 1 3 2 1
A12 A12 A12
U12 U12 U12
U13 U13 U13
ADSP-2199x ADSP-2199x ADSP-2199x
13 13 13 13
Y1 Y1
JP31 JP31 JP31
JP26 JP26 JP26 JP24 JP24 JP24
U1 U1 U1
JP25 JP25 JP25 JP27 JP27 JP27
U5 U5 U5 U5 U5 U5 U6 U6 U6 U6 U6 U6
U8 U8 U8 U8

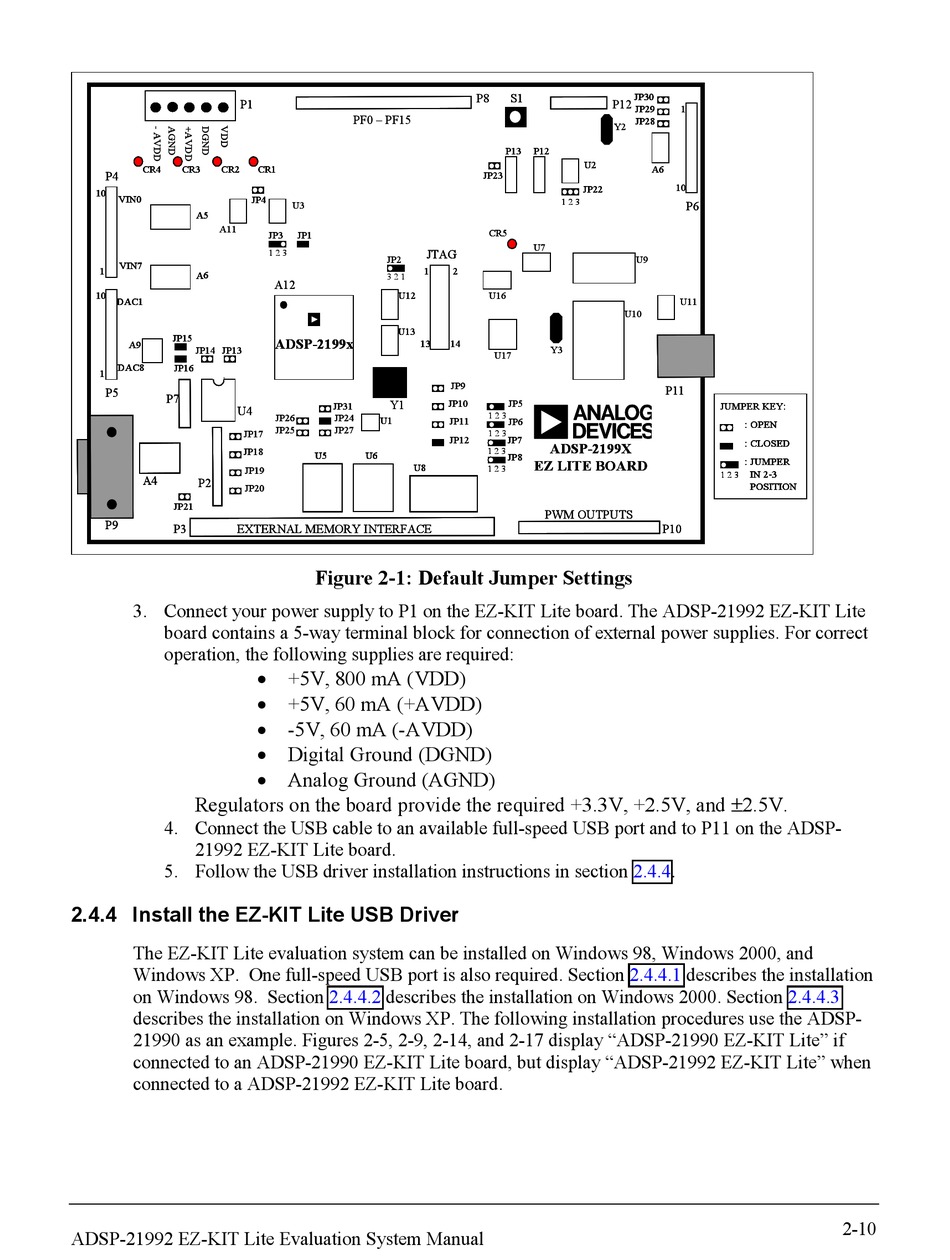

Figure 2-1: Default Jumper Settings
