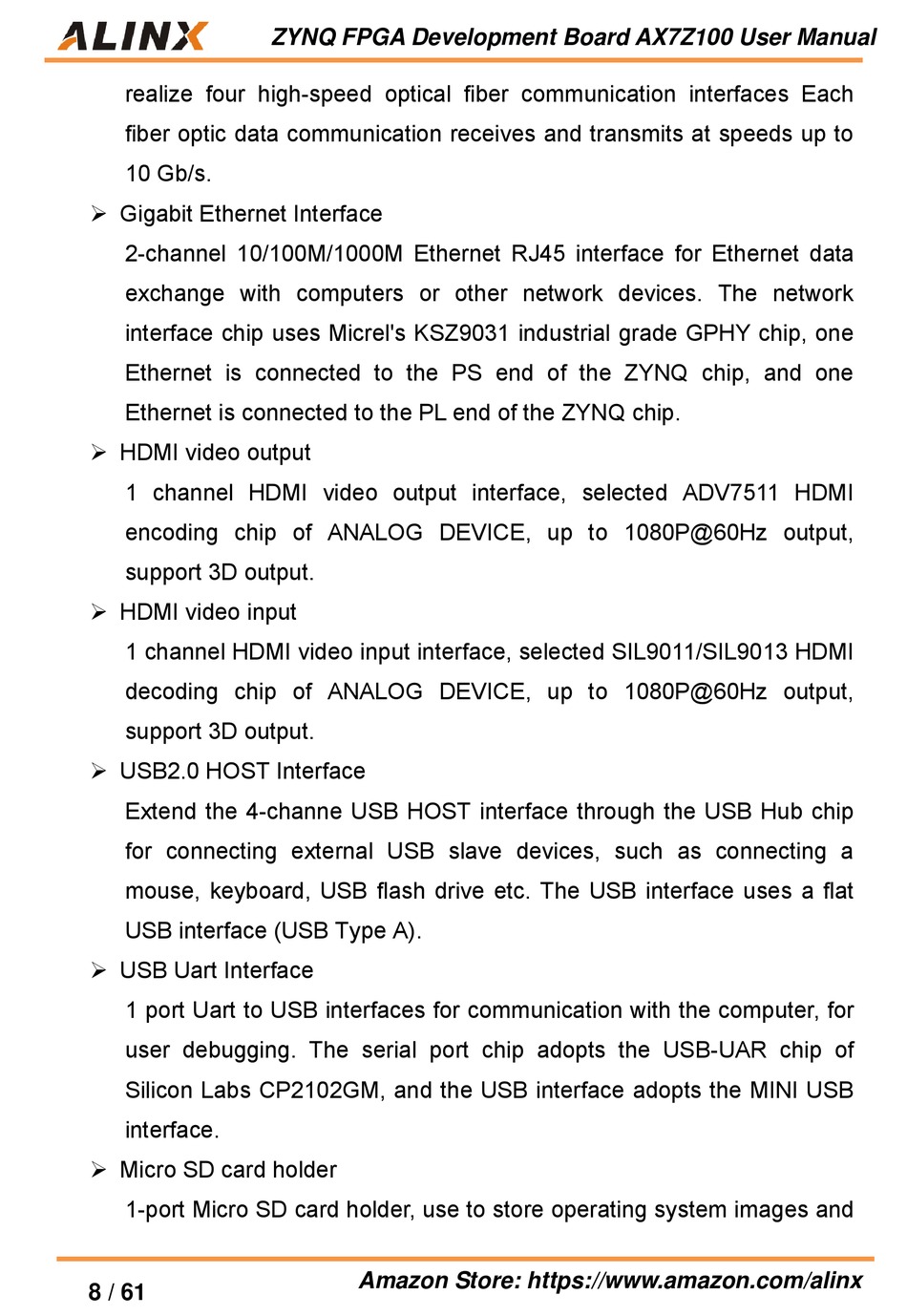

Alinx ZYNQ7000 FPGA User Manual page 8

realize four high-speed optical fiber communication interfaces Each
fiber optic data communication receives and transmits at speeds up to
10 Gb/s.
 Gigabit Ethernet Interface
2-channel 10/100M/1000M Ethernet RJ45 interface for Ethernet data
exchange with computers or other network devices. The network
interface chip uses Micrel's KSZ9031 industrial grade GPHY chip, one
Ethernet is connected to the PS end of the ZYNQ chip, and one
Ethernet is connected to the PL end of the ZYNQ chip.
 HDMI video output
1 channel HDMI video output interface, selected ADV7511 HDMI
encoding chip of ANALOG DEVICE, up to 1080P@60Hz output,
support 3D output.
 HDMI video input
1 channel HDMI video input interface, selected SIL9011/SIL9013 HDMI
decoding chip of ANALOG DEVICE, up to 1080P@60Hz output,
support 3D output.
 USB2.0 HOST Interface
Extend the 4-channe USB HOST interface through the USB Hub chip
for connecting external USB slave devices, such as connecting a
mouse, keyboard, USB flash drive etc. The USB interface uses a flat
USB interface (USB Type A).
 USB Uart Interface
1 port Uart to USB interfaces for communication with the computer, for
user debugging. The serial port chip adopts the USB-UAR chip of
Silicon Labs CP2102GM, and the USB interface adopts the MINI USB
interface.
 Micro SD card holder
1-port Micro SD card holder, use to store operating system images and
8 / 61
