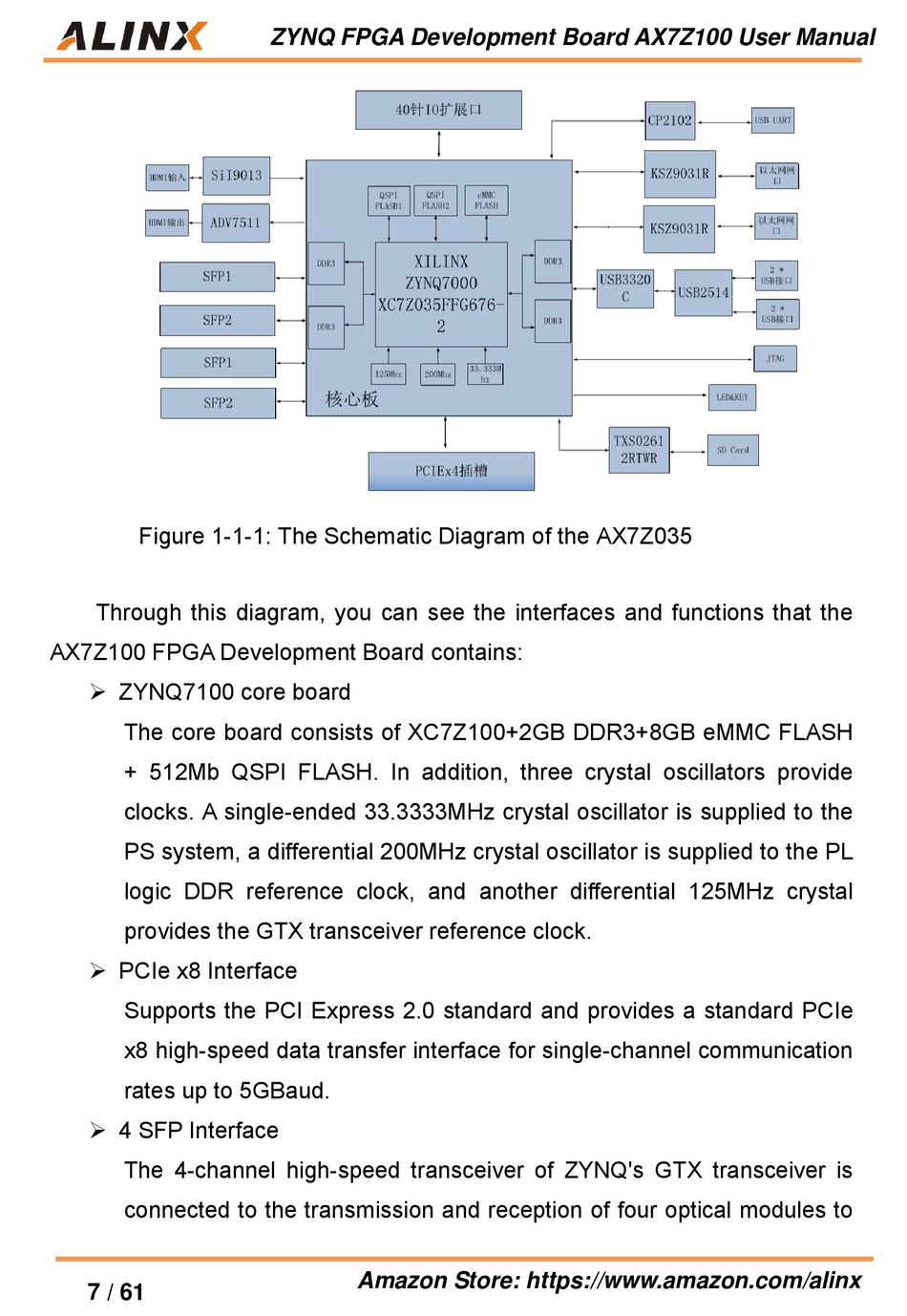

Figure 1-1-1: The Schematic Diagram of the AX7Z035
Through this diagram, you can see the interfaces and functions that the
AX7Z100 FPGA Development Board contains:
 ZYNQ7100 core board
The core board consists of XC7Z100+2GB DDR3+8GB eMMC FLASH
+ 512Mb QSPI FLASH. In addition, three crystal oscillators provide
clocks. A single-ended 33.3333MHz crystal oscillator is supplied to the
PS system, a differential 200MHz crystal oscillator is supplied to the PL
logic DDR reference clock, and another differential 125MHz crystal
provides the GTX transceiver reference clock.
 PCIe x8 Interface
Supports the PCI Express 2.0 standard and provides a standard PCIe
x8 high-speed data transfer interface for single-channel communication
rates up to 5GBaud.
 4 SFP Interface
The 4-channel high-speed transceiver of ZYNQ's GTX transceiver is
connected to the transmission and reception of four optical modules to
