ZYNQ FPGA Development Board AX7Z100 User Manual

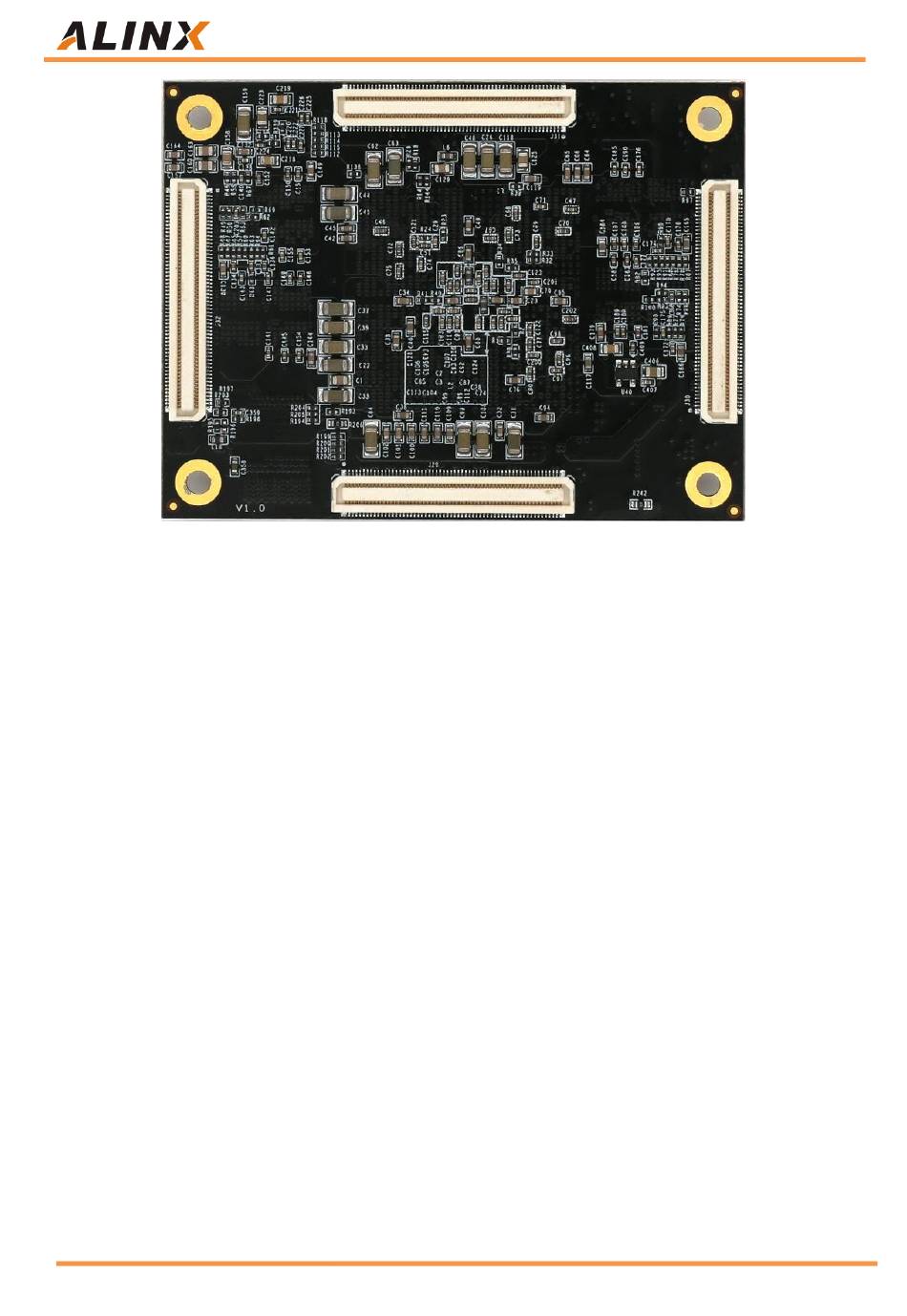

Figure 2-1-2: AC7Z100 Core Board (Rear View)

Part 2.2: ZYNQ Chip

The FPGA core board AC7Z100 uses Xilinx's Zynq7000 series chip,

module XC7Z100-2FFG900. The chip's PS system integrates two ARM

Cortex™-A9 processors, AMBA® interconnects, internal memory, external

memory interfaces and peripherals. These peripherals mainly include USB bus

interface, Ethernet interface, SD/SDIO interface, I2C bus interface, CAN bus

interface, UART interface, GPIO etc. The PS can operate independently and

start up at power on or reset. Figure 2-2-1 detailed the Overall Block Diagram

of the ZYNQ7000 Chip.

Amazon Store: https://www.amazon.com/alinx

11 / 61
