ZYNQ FPGA Development Board AX7Z100 User Manual
the PS and PL sides, respectively, which form a 32-bit bus width. The DDR3
SDRAM on the PS side can run at up to 533MHz (data rate 1066Mbps), and
the DDR3 SDRAM on the PL side can run at speeds up to 800MHz (data rate
1600Mbps). In addition, two 256MBit QSPI FLASH and 8GB eMMC FLASH
chips are integrated on the core board to boot the storage configuration and
system files.
In order to connect with the carrier board, the four board-to-board
connectors of the core board expand the USB interface, the Gigabit Ethernet
interface, the SD card interface and other remaining IO ports of the PS side;
and also extend the 8-pair high-speed transceiver GTX interface of the ZYNQ,
almost all IO ports (144) on the PL side. The level of IO of BANK12 and
BANK13 can be modified by replacing the LDO chip on the core board to meet
the requirements of different level interfaces of users. For users who need a lot
of IO, this core board will be a good choice. Moreover, the IO connection part,
the routing between the ZYNQ chip and the interface is equal length and
differential processing, and the core board size is only 80*60 (mm), which is
very suitable for secondary development.

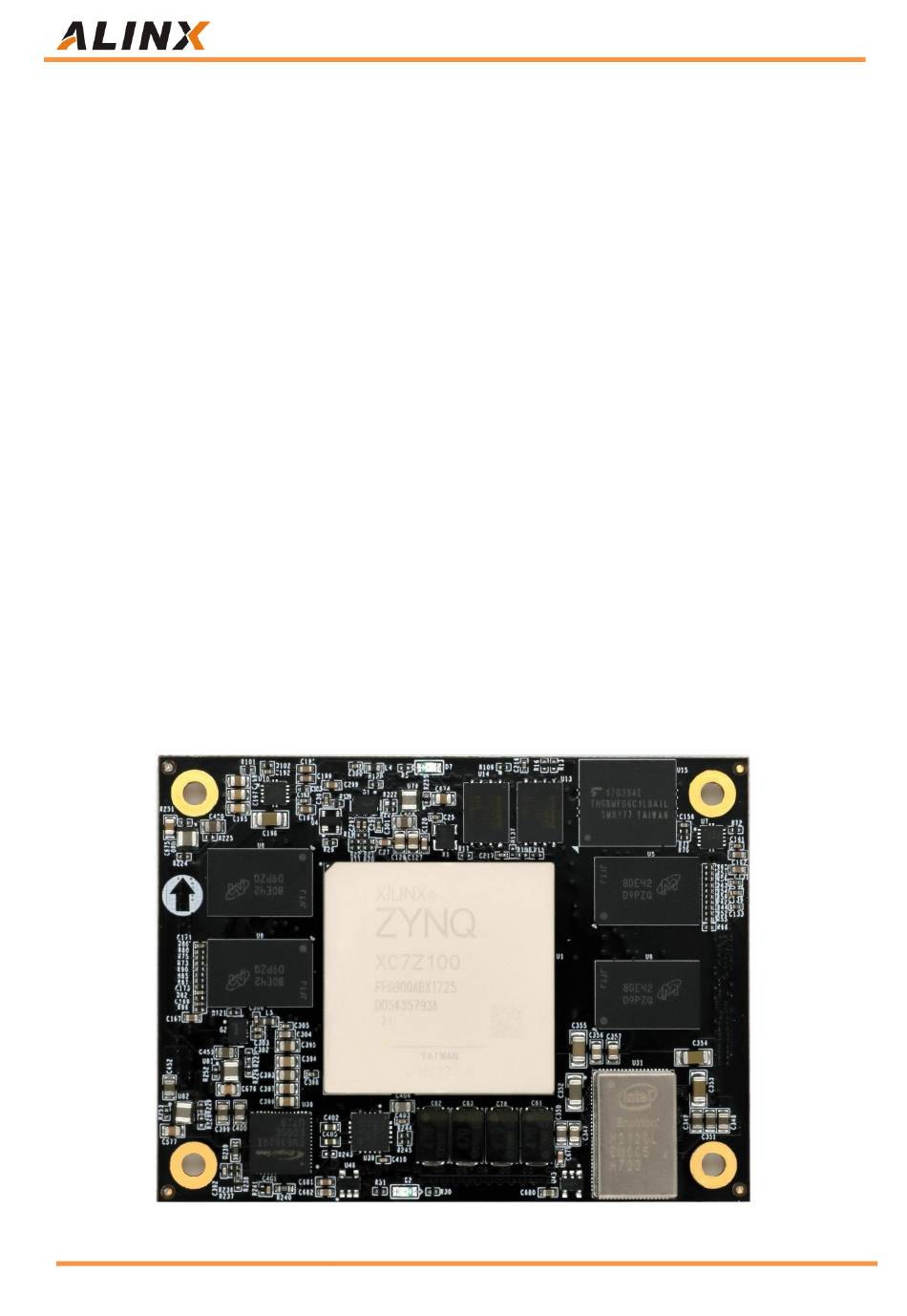

Figure 2-1-1: AC7Z100 Core Board (Front View)
