Alinx ZYNQ7000 FPGA User Manual page 5

This ZYNQ7000 FPGA development platform adopts the core board +
carrier board mode, which is convenient for users to use the core board for
secondary development. The core board uses XILINX's Zynq7000 SOC chip
XC7Z100 solution, uses ARM+FPGA SOC technology to integrate dual-core
ARM Cortex-A9 and FPGA programmable logic on a single chip. In addition,
the core board contains 4 pieces of 2GB high-speed DDR3 SDRAM chips, 1
piece of 8GB eMMC memory chip and 1 piece of 256Mb QSPI FLASH chip.

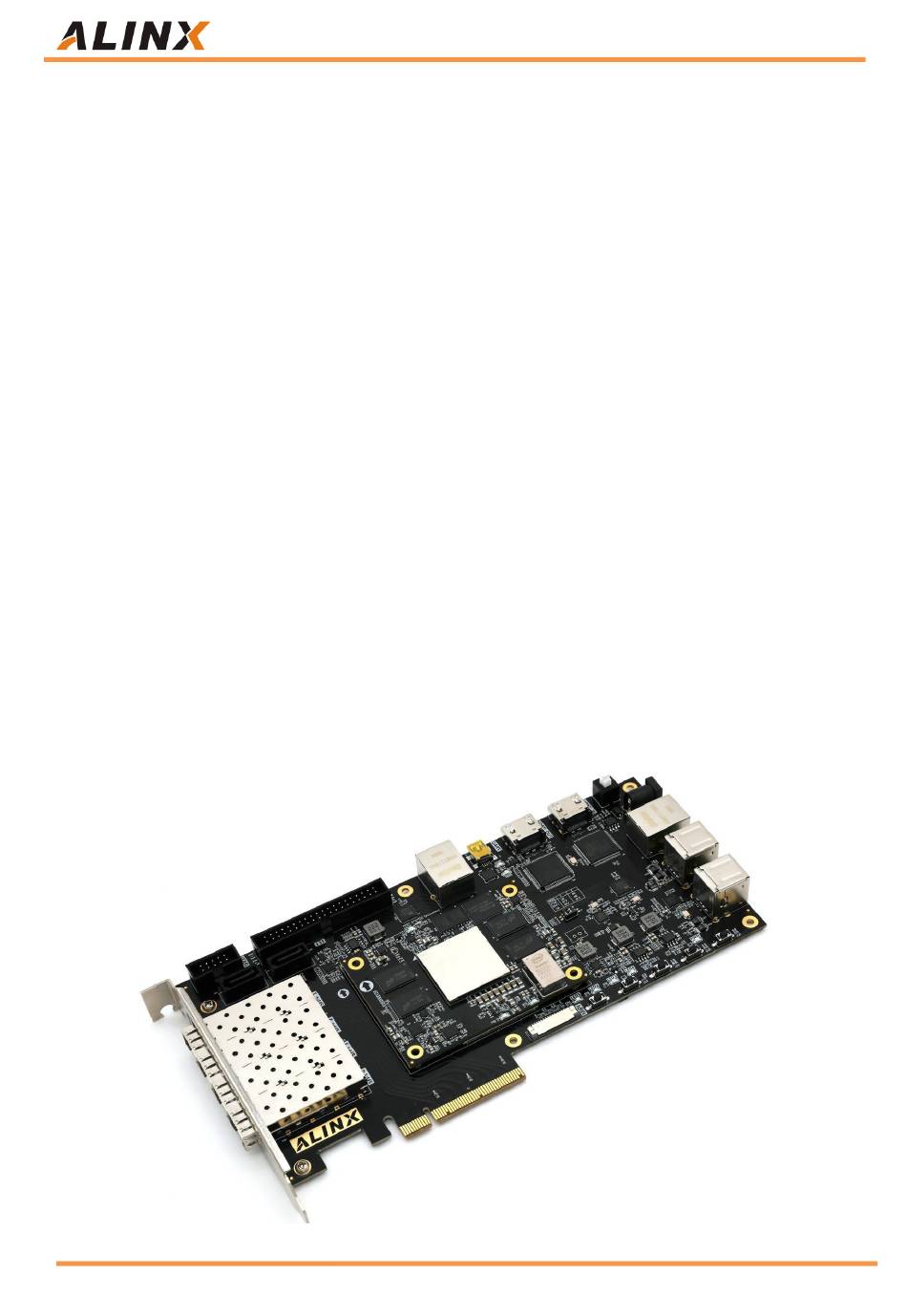

In the design of carrier board, we have extended a wealth of interfaces for
users, such as a PCIex8 slot, 4 fiber interfaces, 2 Gigabit Ethernet interfaces, 4
USB2.0 HOST interfaces, 1 HDMI output interface, 1 HDMI input interface, 1
channel UART serial interface, 1 SD card interface, and 40-pin expansion
interface. It meets users' requirements for high-speed data exchange, data
storage, video transmission processing and industrial control. It is a
"professional" ZYNQ development platform. For high-speed data transmission
and exchange, pre-verification and post-application of data processing is
possible. This product is very suitable for students, engineers and other groups
engaged in ZYNQ development.
