EcoDesign Disclosures

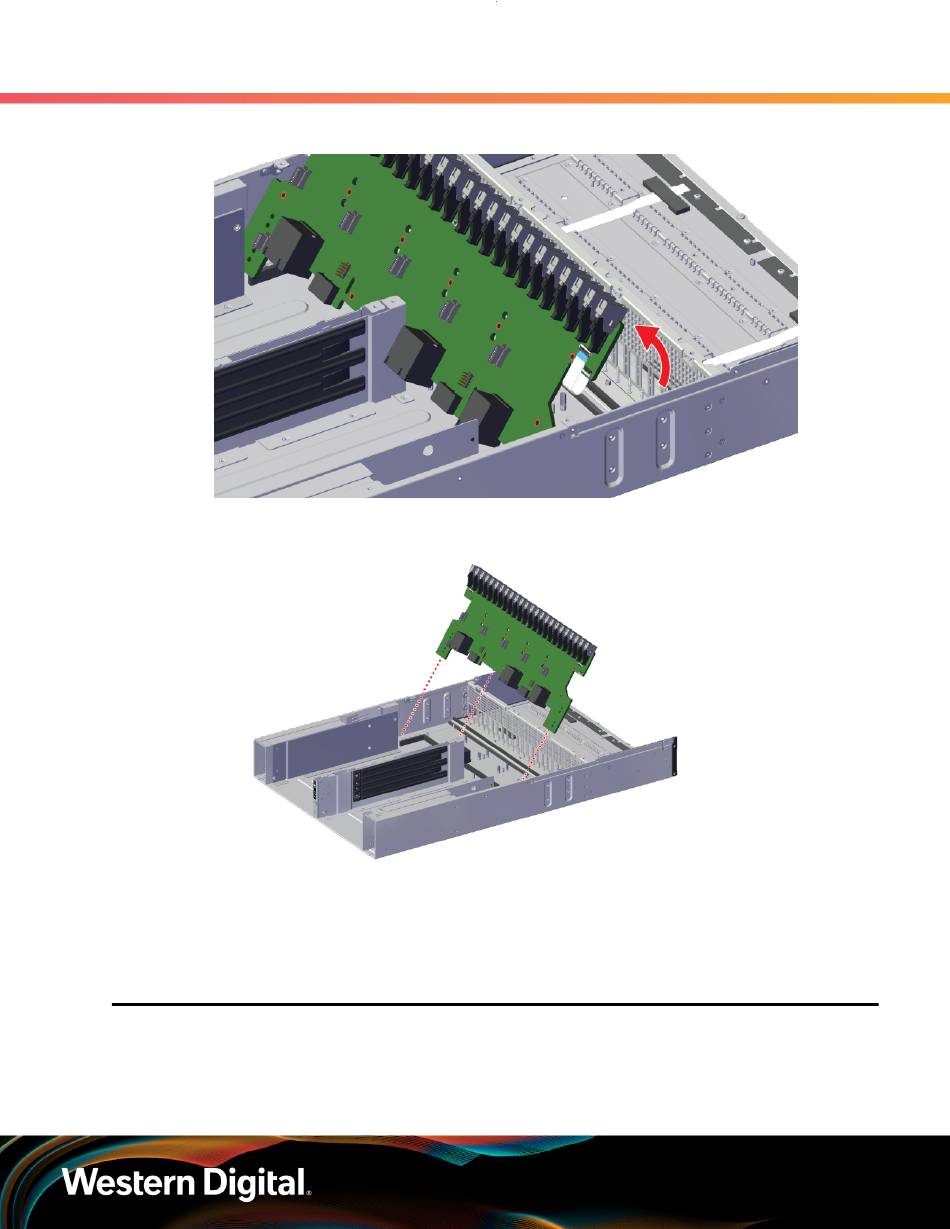

Figure 48: Lifting the Front Edge
Figure 49: Removing the Midplane PCB
R esult: T he OpenFlex Data24 Chassis is now disassembled.
W hat to do next: P roceed to
1.5 IO Module (IOM) Disassembly
This procedure provides instructions for disassembling an OpenFlex Data24 IO Module (IOM).
IO Module (IOM) Disassembly (page
1. EU EcoDesign Disclosures

1.5 IO Module (IOM) Disassembly

27).
27
