5. Installation

5.1.

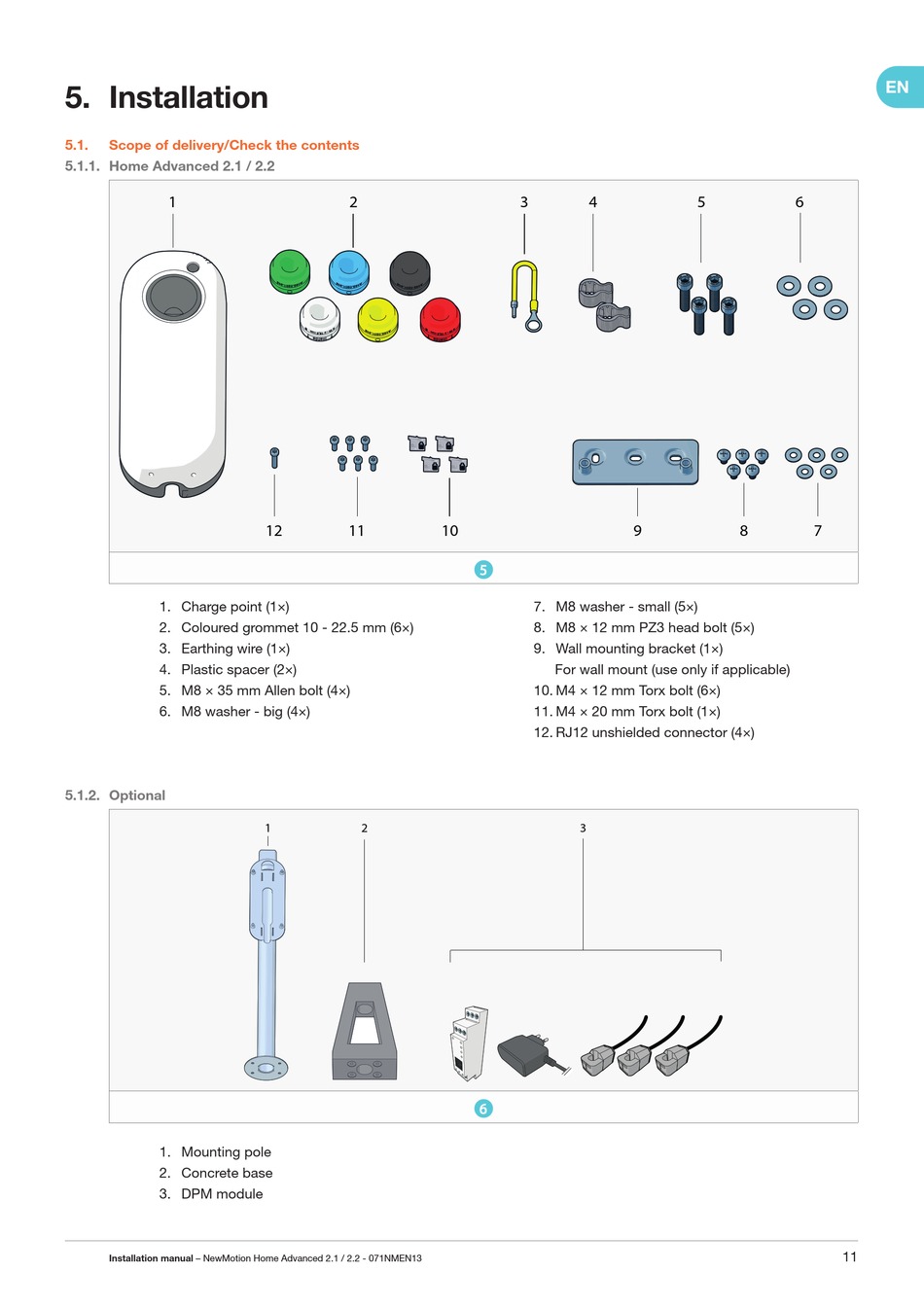

Scope of delivery/Check the contents

5.1.1. Home Advanced 2.1 / 2.2

1
1. Charge point (1×)
2. Coloured grommet 10 - 22.5 mm (6×)
3. Earthing wire (1×)
4. Plastic spacer (2×)
5. M8 × 35 mm Allen bolt (4×)
6. M8 washer - big (4×)

5.1.2. Optional

1. Mounting pole
2. Concrete base
3. DPM module
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
2
12 11
1 2
3 4
10
5
7. M8 washer - small (5×)
8. M8 × 12 mm PZ3 head bolt (5×)
9. Wall mounting bracket (1×)
For wall mount (use only if applicable)
10. M4 × 12 mm Torx bolt (6×)
11. M4 × 20 mm Torx bolt (1×)
12. RJ12 unshielded connector (4×)
3
6
5 6
9 8
EN
7
