Ø10 - 13 mm
Ø13 - 15.5 mm
Ø15.5 - 18 mm
Ø18 - 21 mm
Ø21 - 22.5 mm

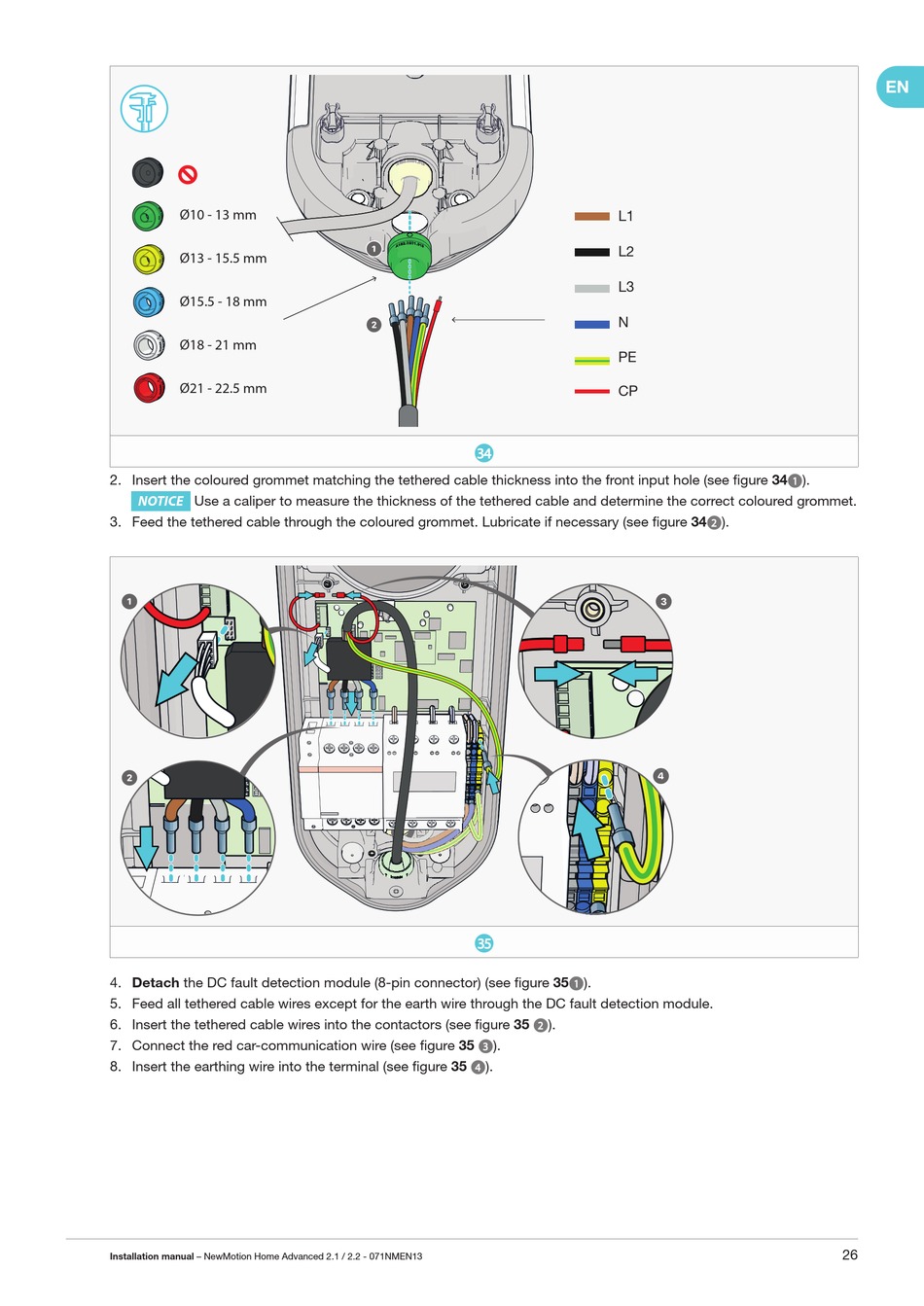

2 . Insert the coloured grommet matching the tethered cable thickness into the front input hole (see fi gure
NOTICE Use a caliper to measure the thickness of the tethered cable and determine the correct coloured grommet.
3 . Feed the tethered cable through the coloured grommet. Lubricate if necessary (see fi gure
4 . Detach the DC fault detection module (8-pin connector) (see fi gure
5 . Feed all tethered cable wires except for the earth wire through the DC fault detection module.
6 . Insert the tethered cable wires into the contactors (see fi gure 35
7 . Connect the red car-communication wire (see fi gure 35
8 . Insert the earthing wire into the terminal (see fi gure 35
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
L1
L2
L3
N
PE
CP
n
m
351
).
).
2
).
3
).
4
341
).
342
).
