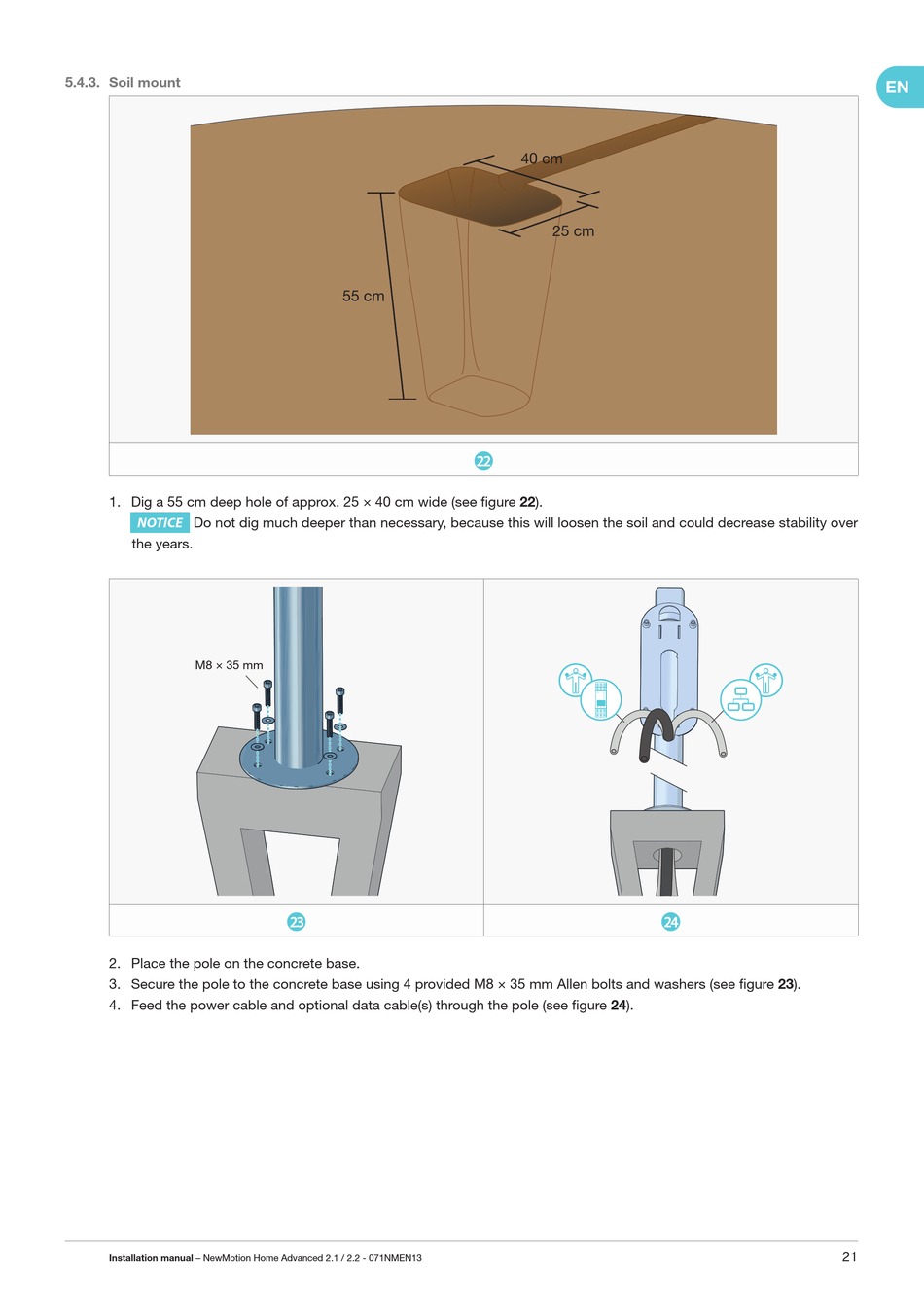

5 . 4 . 3 . Soil mount

EN
40 cm
25 cm
55 cm
d
1 . Dig a 55 cm deep hole of approx. 25 × 40 cm wide (see fi gure 22 ).
NOTICE
Do not dig much deeper than necessary, because this will loosen the soil and could decrease stability over
the years.
M8 × 35 mm
f g
2 . Place the pole on the concrete base.
3 . Secure the pole to the concrete base using 4 provided M8 × 35 mm Allen bolts and washers (see fi gure 23 ).
4 . Feed the power cable and optional data cable(s) through the pole (see fi gure 24 ).
