5 . 4 .

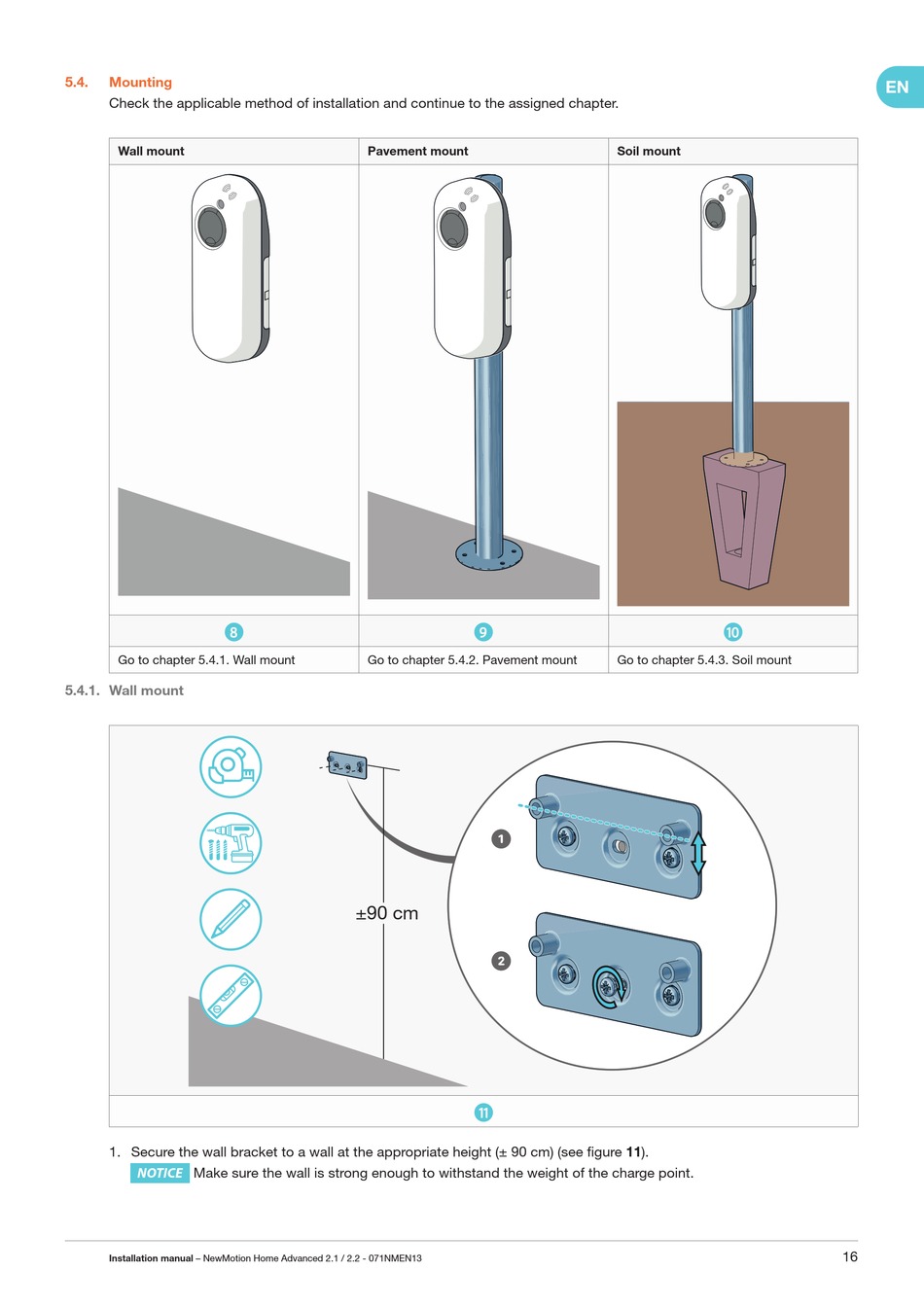

Mounting

Check the applicable method of installation and continue to the assigned chapter.

Wall mount

8
Go to chapter 5 . 4 . 1 . Wall mount
5 . 4 . 1 . Wall mount
1 . Secure the wall bracket to a wall at the appropriate height (± 90 cm) (see fi gure 11 ).
NOTICE
Make sure the wall is strong enough to withstand the weight of the charge point.
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
Pavement mount
9
Go to chapter 5 . 4 . 2 . Pavement mount
±90 cm
w
Soil mount
q
Go to chapter 5 . 4 . 3 . Soil mount
EN
16
