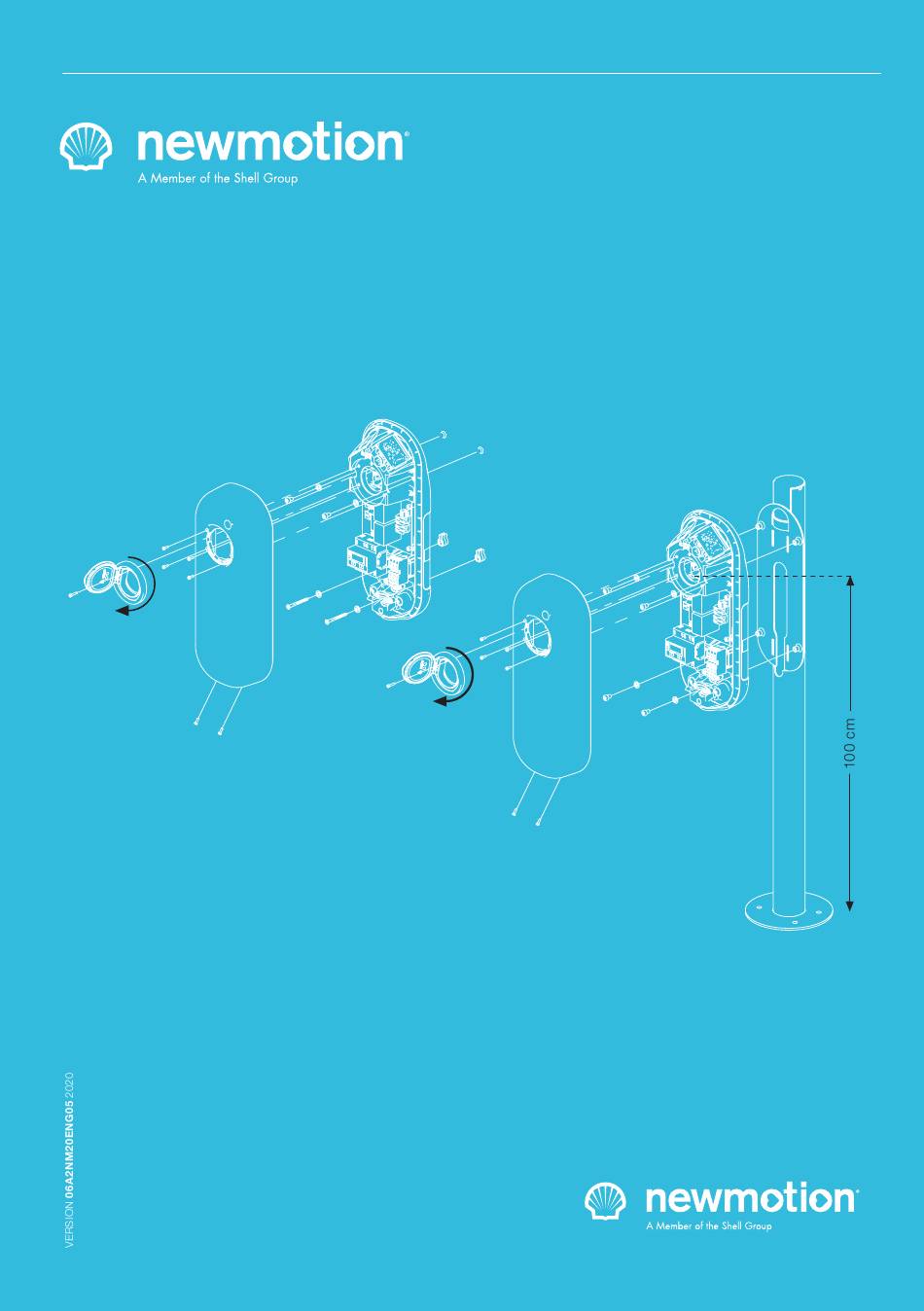

- Page 1 INSTRUCTION MANUAL – EN Home Basic Edition 7 Home Basic Edition 22...
-
Page 3: Product Description And Intended Use
1. INTRODUCTION 1.1 PRODUCT DESCRIPTION & Tripping of the RCD could be caused by an earth fault INTENDED USE or a defect relay. If, after resetting the RCD, the device cannot be activated or immediately trips again; please Thank you for choosing a NewMotion Electric Vehicle contact your installer. - Page 4 2. CHARGE POINT OPERATION This selected charge point is not connected to a back office. No online services or remote support are available for this charge point. In case of an error or issue, on site support is needed from the installer. INSTALLATIEHANDLEIDING –...
-
Page 5: Product Overview
3. PRODUCT OVERVIEW 3.1 MOUNTING, PACKAGE CONTENTS AND REQUIRED TOOLS Package contents charge point Required tools & additional materials (not provided) Wall mounting - Charge point; - 4x 6.3mm x 70mm self tapping pan - Rubber grommets (various sizes); head screws (DIN 7981C) stainless steel - 2x Plastic spacers;... -
Page 6: Technical Specifications
3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS Serial number format Home Basic 7,4 kW 06A _ _ _ _ _ _ Serial number format Home Basic 22 kW 06B _ _ _ _ _ _ Maximum charge capacity Home Basic Edition 7: single phase 32A* Home Basic Edition 22: triple phase 32A* Standard configured charge capacity Home Basic Edition 7: 3,7 kW - single phase 16A**... - Page 7 3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS (CONTINUED) Operating temperature range -30℃ to +50℃ Operating humidity range 5% to 95% Operating air pressure range 860 hPa to 1060 hPa Maximum mounting height socket 1.5 meter above ground Advised mounting height socket 1 meter above ground Mounting position Vertical and upright position only...
-
Page 8: Overview Of Product
3. PRODUCT OVERVIEW 3.3 OVERVIEW OF PRODUCT LED status indicator Type 2 EV Plug socket & Cover lid Identification label with serial number INSTALLATIEHANDLEIDING – P8 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P8 | P8 06A2NM20ENG05... - Page 9 3. PRODUCT OVERVIEW 3.4.1 OVERVIEW OF CONNECTIONS | 7,4 KW VERSION Phase wire connection Neutral wire connection Earth wire connection Earthing pole connection Power cable Earthing pole Cable clamp INSTALLATIEHANDLEIDING – P9 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P9 | P9 06A2NM20ENG05...
- Page 10 3. PRODUCT OVERVIEW 3.4.2 OVERVIEW OF CONNECTIONS | 22 KW VERSION Power cable connections Phase 1 Phase 2 Phase 3 Neutral Earth Tension relief data cable Earthing pole connection Earthing pole Cable clamp Power cable inlet If connecting to a 3-phase grid without neutral; only install 1-phase and connect one of the two other phase wires in the neutral wire connection on the terminal block.
- Page 11 3. PRODUCT OVERVIEW 3.4.3 OVERVIEW INSTALLING ACCESSORIES Rotary switches for maximum current and Dynamic Power Management configuration (see chapter 6) 22 kW model RJ12 - P1 port Dynamic Power Management 7,4 kW model CT connection for Dynamic Power Management Earthing accessories cable Dynamic Power...
-
Page 12: Installation Details
4. INSTALLATION DETAILS The electrician is responsible for selecting a cable thickness & safety components appropriate for the specific situation and according to regulations; Wiring advice* - Wire for the maximum hardware amperage under continuous load; - Calculate with a COS-Phi of 0.8; - Calculate with a max allowable voltage drop over the cable of 2%;... -
Page 13: Installation Procedure
5. INSTALLATION PROCEDURE 5.4A DYNAMIC POWER MANAGEMENT Thank you for installing this charge point. Make sure there is enough space to properly do the work. - CT FOR 7,4 KW MODEL Ensure to work safely and take the safety of others into The Current Transformer for Dynamic Power consideration as well, always work according to local Management (included in box) must be connected to the... - Page 14 5. INSTALLATION PROCEDURE 5.6 FINISHING UP (CLOSE Step 4: Connect the power adapter to the Dynamic Power Management module. One of the two power ENCLOSURE) adapter wires has a broken white stripe. This wire is the Step 1: Check and make sure that the rubber seal power adapter GND and should therefore be connected around the casing is properly in place on the edge;...
-
Page 15: Local Configuration
6. LOCAL CONFIGURATION 6.2 DYNAMIC POWER MANAGEMENT The Home Basic Edition can be configured locally using the rotary switches and dip switches on the chargepoint. SETTING Enable Dynamic Power Management if the CT for 7,4 Make sure that the charge point is not yet powered on kW charge point or Dynamic Power Management before configuring the features described in this chapter. - Page 16 7. USER MANUAL & TROUBLESHOOTER 7.1 REGULAR USE 7.2 TROUBLESHOOTER The first step is to connect your car to the charge point by plugging in the charge cable, the session will start DO YOU SEE A RED LED LIGHT ON YOUR CHARGE automatically.
