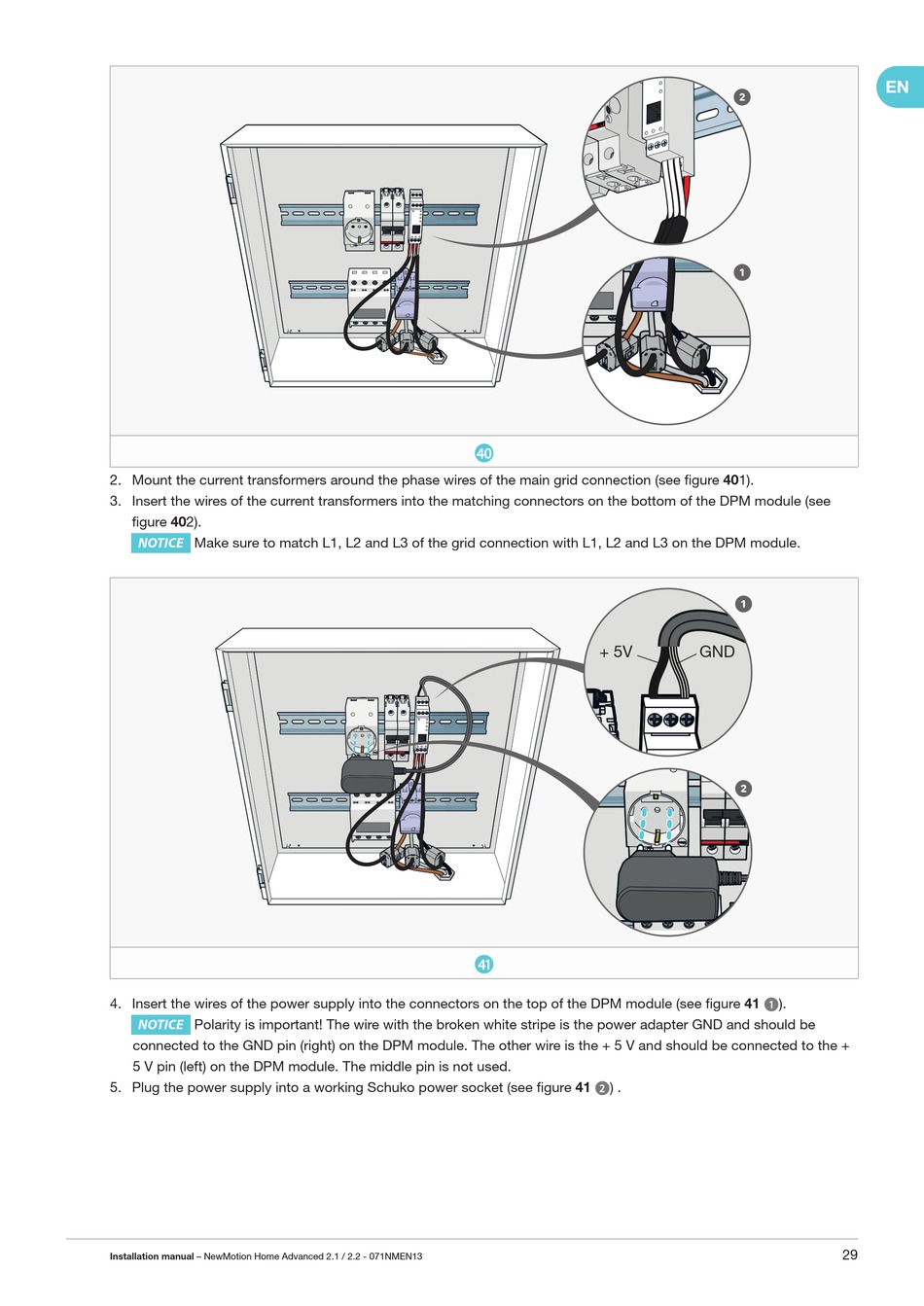

2 . Mount the current transformers around the phase wires of the main grid connection (see fi gure 40 1).
3 . Insert the wires of the current transformers into the matching connectors on the bottom of the DPM module (see
fi gure 40 2).
NOTICE Make sure to match L1, L2 and L3 of the grid connection with L1, L2 and L3 on the DPM module.
4 . Insert the wires of the power supply into the connectors on the top of the DPM module (see fi gure 41
NOTICE
Polarity is important! The wire with the broken white stripe is the power adapter GND and should be
connected to the GND pin (right) on the DPM module. The other wire is the + 5 V and should be connected to the +
5 V pin (left) on the DPM module. The middle pin is not used.
5 . Plug the power supply into a working Schuko power socket (see fi gure 41
