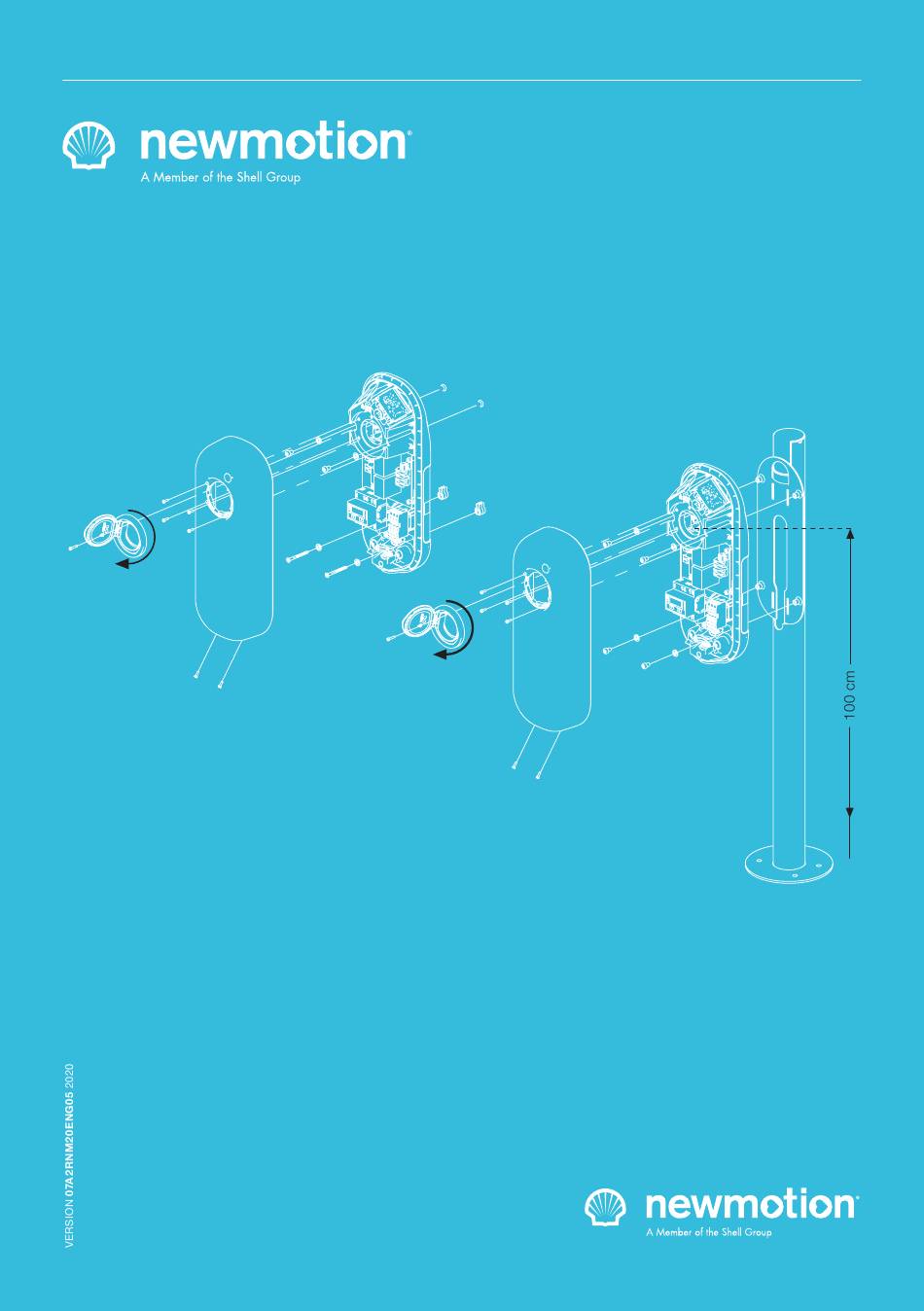

- Page 1 INSTRUCTION MANUAL – EN Home Advanced Edition 7 Home Advanced Edition 22...
-
Page 3: Product Description And Intended Use
1. INTRODUCTION 1.1 PRODUCT DESCRIPTION & Tripping of the RCD could be caused by an earth fault INTENDED USE or a defect relay. If, after resetting the RCD, the device cannot be activated or immediately trips again; please Thank you for choosing a NewMotion Electric Vehicle contact your installer. - Page 4 2. CHARGE POINT OPERATION This selected charge point can be connected to a Charge Point Operator (CPO) backoffice via WiFi or ethernet. In case of an error or issue, on site support is needed from the installer. INSTALLATIEHANDLEIDING – P4 VERSION 0129NM02INT01 INSTRUCTION MANUAL –...
-
Page 5: Product Overview
3. PRODUCT OVERVIEW 3.1 MOUNTING, PACKAGE CONTENTS AND REQUIRED TOOLS Package contents with charge point Required tools & additional materials (not provided) Wall mounting - Charge point; - 4x 6.3mm x 70mm Self Tapping pan - Rubber grommets (various sizes); head Torx screws (DIN 7981C) stainless - 2x Plastic spacers;... -
Page 6: Technical Specifications
3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS Serial number format Home Advanced 7 kW 07A _ _ _ _ _ Serial number format Home Advanced 22 kW 07B _ _ _ _ _ Maximum charge capacity Home Advanced 7: single phase 32A* Home Advanced 22: triple phase 16A* Standard configured charge capacity Home Advanced 7: 3,7 kW - single phase 16A**... - Page 7 3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS (CONTINUED) Backoffice protocol OCPP protocol Stand-by consumption 3-5W Operating temperature range -30℃ to +50℃ Operating humidity range 5% to 95% Operating air pressure range 860 hPa to 1060 hPa Maximum mounting height socket 1.5 meter above ground Advised mounting height socket 1 meter above ground Mounting position...
-
Page 8: Overview Of Product
3. PRODUCT OVERVIEW 3.3 OVERVIEW OF PRODUCT RFID Reader LED Status indicator Type 2 EV Plug socket & cover lid Identification label with serial number INSTALLATIEHANDLEIDING – P8 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P8 | P8 07A2NM20ENG05... -
Page 9: Overview Of Connections
3. PRODUCT OVERVIEW 3.4.1 OVERVIEW OF CONNECTIONS Ethernet port Phase 1 Neutral Earthing Phase 3 Phase 2 Earthing pole Power cables clamps UTP data cable inlet INSIDE with rubber seal Inlets for power cables INSTALLATIEHANDLEIDING – P9 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P9 | P9 07A2NM20ENG05... - Page 10 3. PRODUCT OVERVIEW 3.4.2 OVERVIEW INSTALLING ACCESSORIES P1 Port for Dynamic Power Management UTP data cable inlet INSIDE with rubber seal for Dynamic Power Management INSTALLATIEHANDLEIDING – P10 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P10 | P10 07A2NM20ENG05...
-
Page 11: Installation Details
4. INSTALLATION DETAILS The installer is responsible for selecting a cable thickness & safety components appropriate for the specific situation and according to local regulations Wiring advice* - Wire for the maximum hardware amperage under continuous load; - Calculate with a COS-Phi of 0.8; - Calculate with a max allowed voltage drop over the cable of 2%;... -
Page 12: Installation Procedure
5. INSTALLATION PROCEDURE 5.4 DYNAMIC POWER MANAGEMENT Thank you for installing this charge point. Make sure there is enough space to properly do the work. MODULE Ensure to work safely and take the safety of others into The Dynamic Power Management Module package consideration as well, always work according to local contains one Dynamic Power Management module, one safety regulations. -
Page 13: Internet Connection
5. INSTALLATION PROCEDURE 5.8 CHARGE POINT CONFIGURATION Step 9: Clamp a RJ12 connector straight to the UTP cable for Dynamic Power Management; Charge point configuration should be done after the Step 10: Check if the RJ12 connectors are OKAY with a charge point is powered on, using the Home Charging network cable tester;... -
Page 14: Local Configuration
6. LOCAL CONFIGURATION The Home Advanced Edition can be configured locally using the Home Charging by NewMotion app. Three items are required for local configuration: Charge point which is installed and on power QR Code for WiFi connection Home Charging by NewMotion app Make sure that the charge point is powered on for at least 5 minutes. - Page 15 7. USER MANUAL 7.1 REGULAR USE 7.2 TROUBLESHOOTER The first step is to connect your car to the charge point by plugging in the charge cable. If you are using DO YOU SEE A RED LED LIGHT ON YOUR CHARGE Plug&Charge the session will start automatically.
