EN
T20
M4 × 20 mm
D F

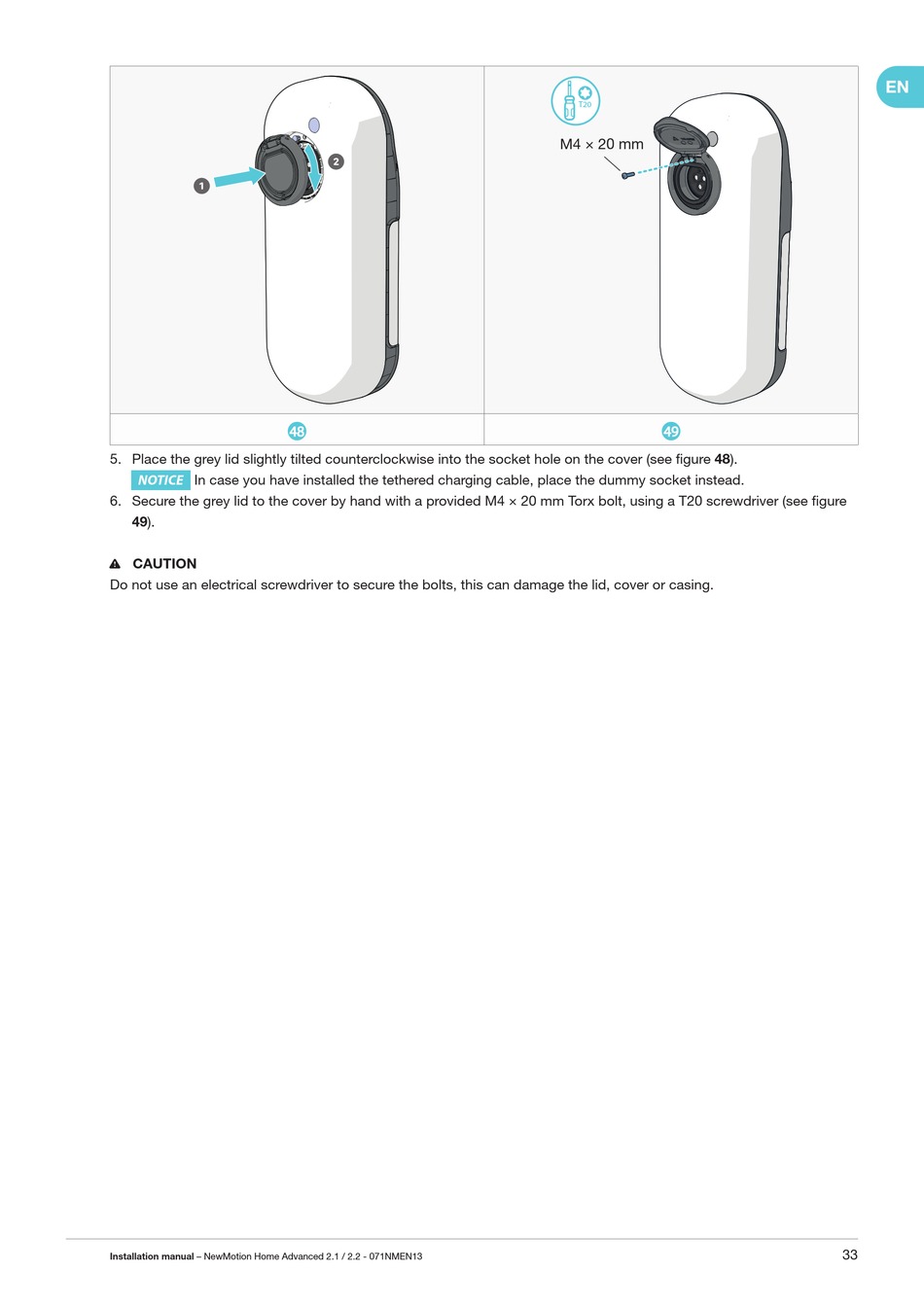

5. Place the grey lid slightly tilted counterclockwise into the socket hole on the cover (see figure 48).
NOTICE
In case you have installed the tethered charging cable, place the dummy socket instead.
6. Secure the grey lid to the cover by hand with a provided M4 × 20 mm Torx bolt, using a T20 screwdriver (see figure
49).
6 CAUTION
Do not use an electrical screwdriver to secure the bolts, this can damage the lid, cover or casing.
33
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
