5.3.

Preparation

1. Cut the power to the circuit on which you plan to install the charge point.
2. Prepare the cabling, RCD and MCB according to local rules and regulations. It is also possible to use an RCBO if
local rules and regulations allow it.
3. Apply labelling to the used circuit on the consumer unit for future reference.
4. Update the schedule of circuits to include the charge point installation
5. Apply proper lockout-tagout equipment for personal safety.
6. Use a GPRS signal strength measuring tool to determine if the signal is strong enough for network communication
via GPRS. The minimum signal strength for a stable connection is -80 dBm.
7. If the signal strength is not strong enough, or if you are not able to measure the signal strength, prepare an Ethernet
cable from an internet enabled router to the charge point location.
NOTICE Do not strip or attach a connector to the Ethernet cable on the charge point side yet.
8. Label the Ethernet cable on the charge point side for reference during installation.
9. If you have purchased a DPM module along with the charge point, prepare a DPM data cable from the consumer
unit to the charge point location.
NOTICE Do not strip or attach a connector to the DPM data cable on the charge point side yet.

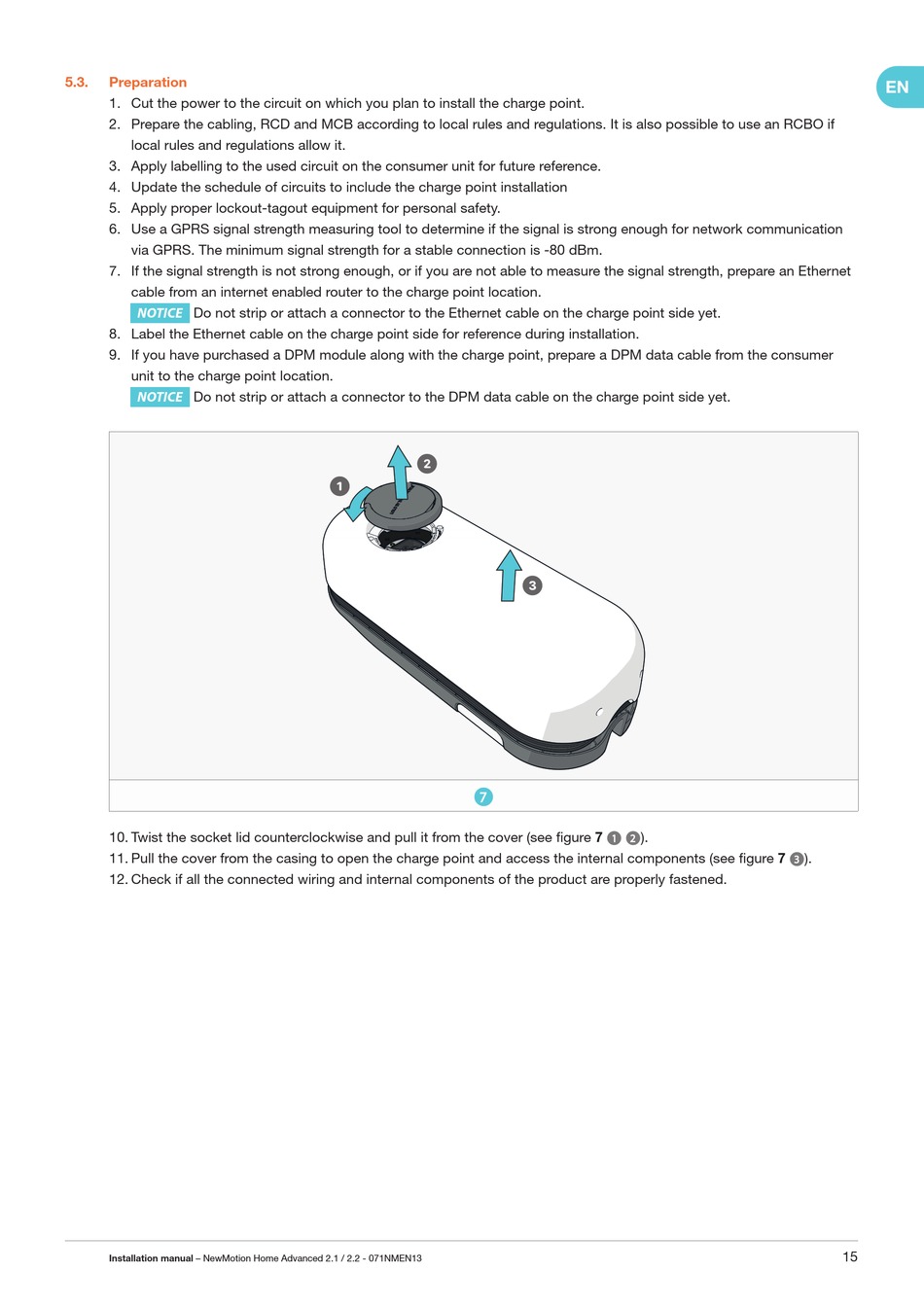

10. Twist the socket lid counterclockwise and pull it from the cover (see figure 7
11. Pull the cover from the casing to open the charge point and access the internal components (see figure 7 3).
12. Check if all the connected wiring and internal components of the product are properly fastened.
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
7
1 2).
