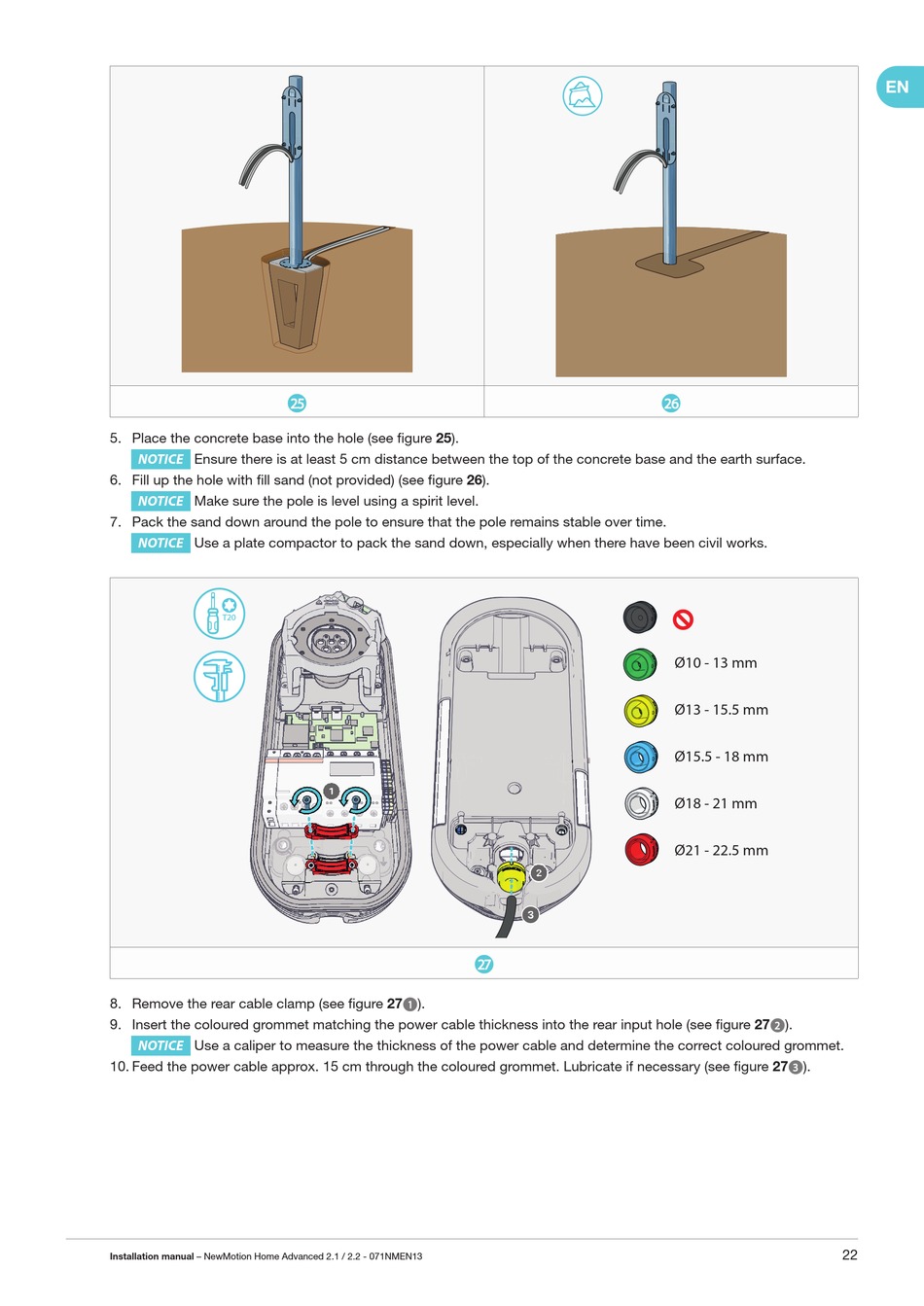

5 . Place the concrete base into the hole (see fi gure 25 ).
NOTICE Ensure there is at least 5 cm distance between the top of the concrete base and the earth surface.
6 . Fill up the hole with fi ll sand (not provided) (see fi gure 26 ).
NOTICE Make sure the pole is level using a spirit level.
7 . Pack the sand down around the pole to ensure that the pole remains stable over time.
NOTICE Use a plate compactor to pack the sand down, especially when there have been civil works.
T20
8 . Remove the rear cable clamp (see fi gure
9 . Insert the coloured grommet matching the power cable thickness into the rear input hole (see fi gure
NOTICE Use a caliper to measure the thickness of the power cable and determine the correct coloured grommet.
10 . Feed the power cable approx. 15 cm through the coloured grommet. Lubricate if necessary (see fi gure
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
h
271 ).
k
j
Ø10 - 13 mm
Ø13 - 15.5 mm
Ø15.5 - 18 mm
Ø18 - 21 mm
Ø21 - 22.5 mm
272
).
273
).
