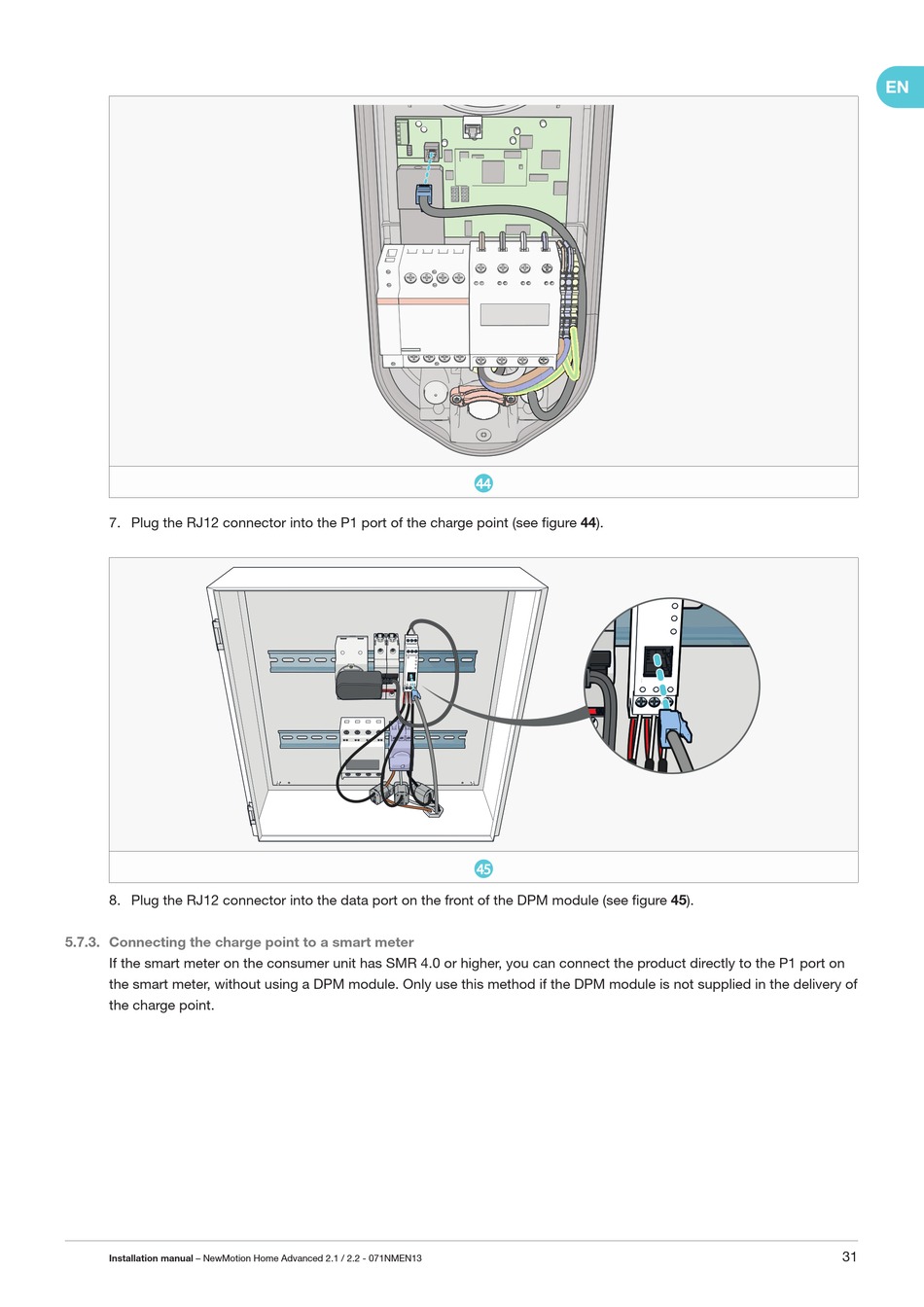

7 . Plug the RJ12 connector into the P1 port of the charge point (see fi gure 44 ).
8 . Plug the RJ12 connector into the data port on the front of the DPM module (see fi gure 45 ).

5 . 7 . 3 . Connecting the charge point to a smart meter

If the smart meter on the consumer unit has SMR 4.0 or higher, you can connect the product directly to the P1 port on
the smart meter, without using a DPM module. Only use this method if the DPM module is not supplied in the delivery of
the charge point.
