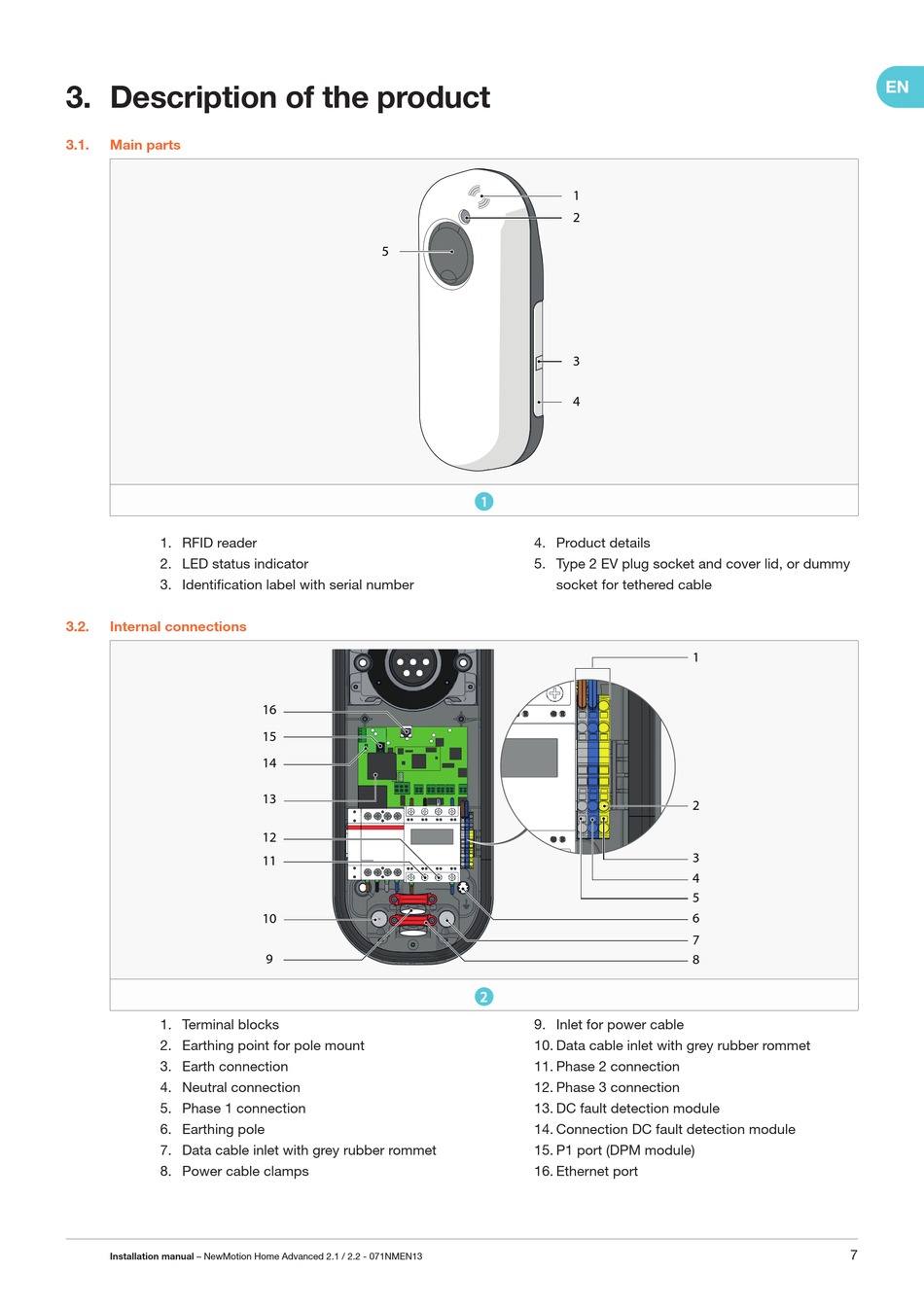

3. Description of the product

3.1.

Main parts

1. RFID reader
2. LED status indicator
3. Identification label with serial number
3.2.

Internal connections

1. Terminal blocks
2. Earthing point for pole mount
3. Earth connection
4. Neutral connection
5. Phase 1 connection
6. Earthing pole
7. Data cable inlet with grey rubber rommet
8. Power cable clamps
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
5
16
15
14
13
12
11
10
9
1
2
3
4
1
4. Product details
5. Type 2 EV plug socket and cover lid, or dummy
socket for tethered cable
2
9. Inlet for power cable
10. Data cable inlet with grey rubber rommet
11. Phase 2 connection
12. Phase 3 connection
13. DC fault detection module
14. Connection DC fault detection module
15. P1 port (DPM module)
16. Ethernet port
1
2
3
4
5
6
7
8
7
EN
