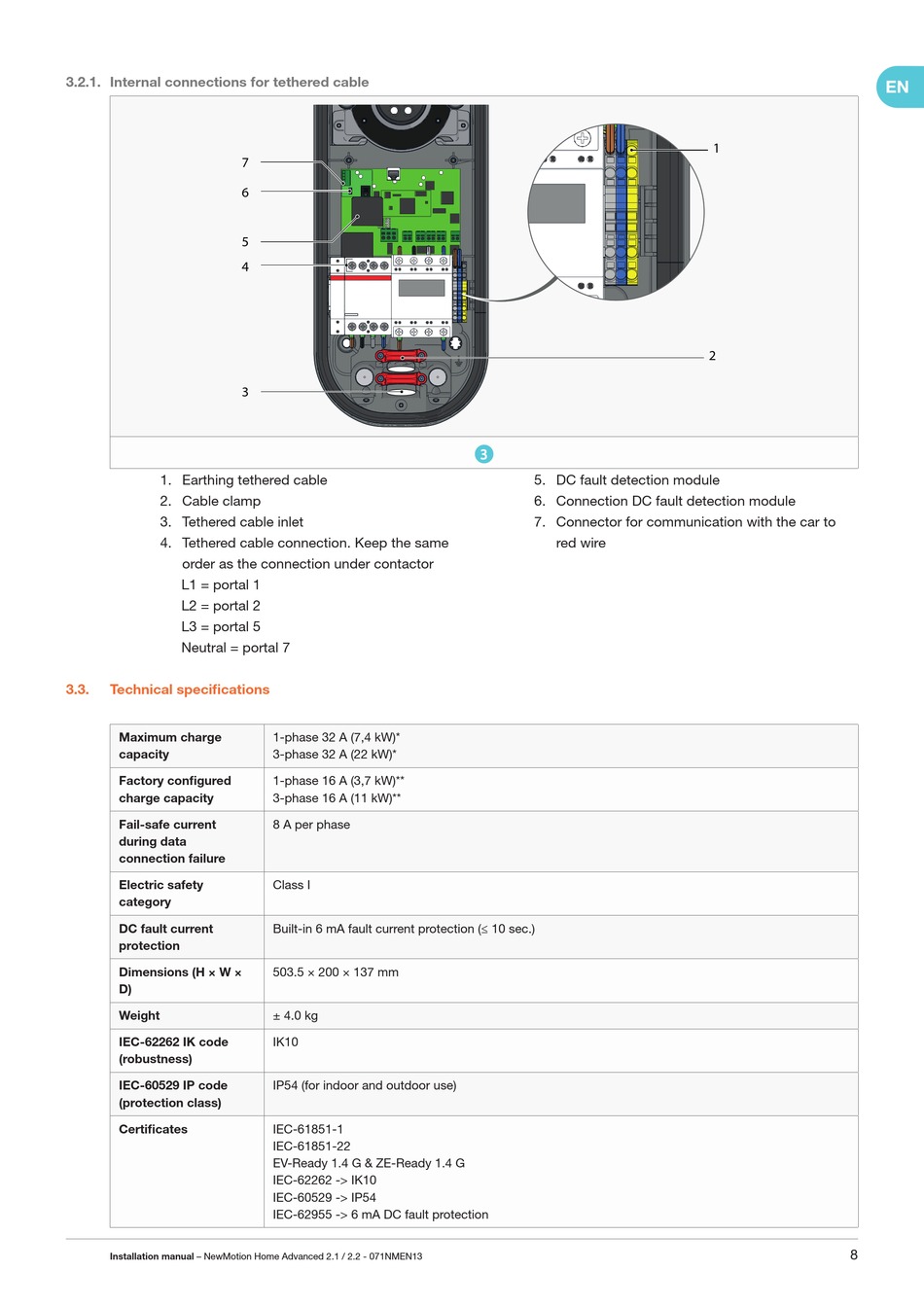

3.2.1. Internal connections for tethered cable

1. Earthing tethered cable
2. Cable clamp
3. Tethered cable inlet
4. Tethered cable connection. Keep the same
order as the connection under contactor
L1 = portal 1
L2 = portal 2
L3 = portal 5
Neutral = portal 7
3.3.

Technical specifications

Maximum charge
capacity
Factory configured
charge capacity
Fail-safe current
during data
connection failure
Electric safety
category
DC fault current
protection
Dimensions (H × W ×
D)
Weight
IEC-62262 IK code
(robustness)
IEC-60529 IP code
(protection class)
Certificates
Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
7
6
5
4
3
1-phase 32 A (7,4 kW)*
3-phase 32 A (22 kW)*
1-phase 16 A (3,7 kW)**
3-phase 16 A (11 kW)**
8 A per phase
Class I
Built-in 6 mA fault current protection (≤ 10 sec.)
503.5 × 200 × 137 mm
± 4.0 kg
IK10
IP54 (for indoor and outdoor use)
IEC-61851-1
IEC-61851-22
EV-Ready 1.4 G & ZE-Ready 1.4 G
IEC-62262 -> IK10
IEC-60529 -> IP54
IEC-62955 -> 6 mA DC fault protection
