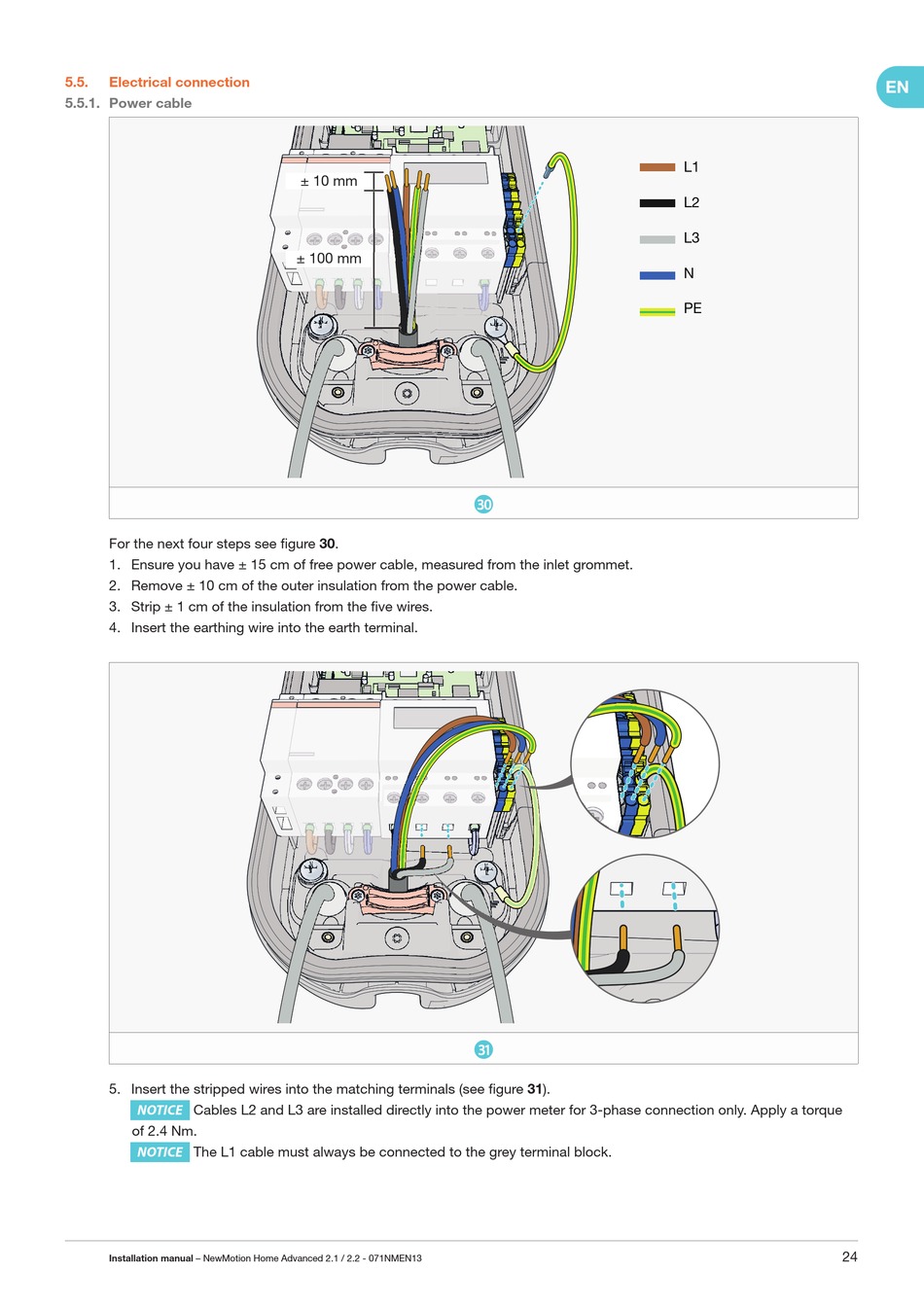

Electrical Connection; Power Cable - Shell NewMotion Home Advanced 2.1 Installation Manual

5 . 5 .

Electrical connection

5 . 5 . 1 . Power cable

For the next four steps see fi gure 30 .
1 . Ensure you have ± 15 cm of free power cable, measured from the inlet grommet.
2 . Remove ± 10 cm of the outer insulation from the power cable.
3 . Strip ± 1 cm of the insulation from the fi ve wires.
4 . Insert the earthing wire into the earth terminal.
5 . Insert the stripped wires into the matching terminals (see fi gure 31 ).
NOTICE
Cables L2 and L3 are installed directly into the power meter for 3-phase connection only. Apply a torque
of 2.4 Nm.
NOTICE The L1 cable must always be connected to the grey terminal block.
