Configuring The Dpm Module; Test Charge Point; Regular Use; Start Charging - Shell NewMotion Home Advanced 2.1 Installation Manual

6.4.

Configuring the DPM module

If you have installed the DPM module, please use the Installer App, or contact your local NewMotion Installation desk
for configuration of the Dynamic Power Management.
Write down before contacting:
1. The amperage of the main grid connection;
2. The value of the overcurrent protection device used in the charge point installation;
3. The maximum amperage of the charge point, in case the charging speed needs to be limited.
6.5.

Test charge point

Test if the charge point is properly working by starting five successive charge sessions using an EV charging test
adaptor connected to a heavy load, such as a hot air gun.
6.6.

Regular use

6.6.1. Start charging

1. Connect your car to the charge point by plugging in the charge cable.
- If you are using Plug&Charge the session will start automatically.
- If you have to identify first;
2. Swipe your charge card above the LED.
- First the LED will flash green to authenticate the card, after authentication, the session will start.
- When the car has delayed charging configured, the LED will remain green, until charging can start from car and
charge point.
NOTICE
If the LED flashes red, the session is not authorised.

6.6.2. Stop charging

1. Identify.
2. Unplug.

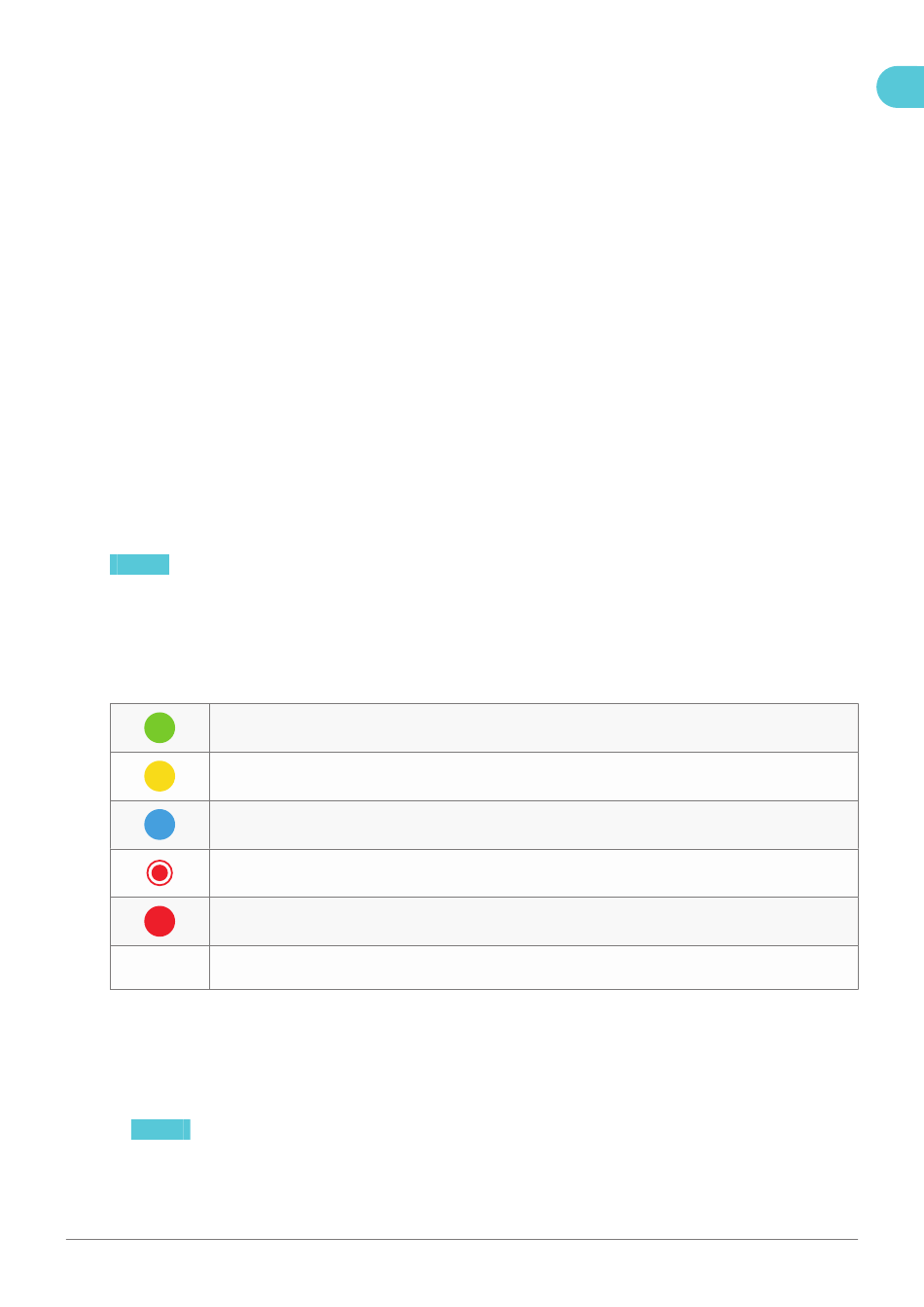

6.6.3. Explanation of the LED colors

Full or waiting to charge
Plug in or identify
Charging
Not accepted
Error
Flashing green
Rebooting procedure or software update procedure for charge point.
or multi colors
6.7.

Tethered cable

If you have purchased a charge point with tethered cable functionality. After a charge session do the following:
1. Make sure the cable is unlocked from your car.
2. Roll the cable around the back of the charge point.
3. Connect the connector into the dummy socket of the charge point.
NOTICE By placing the connector back into the dummy socket of the charge point, it's protected against water and
dirt.
