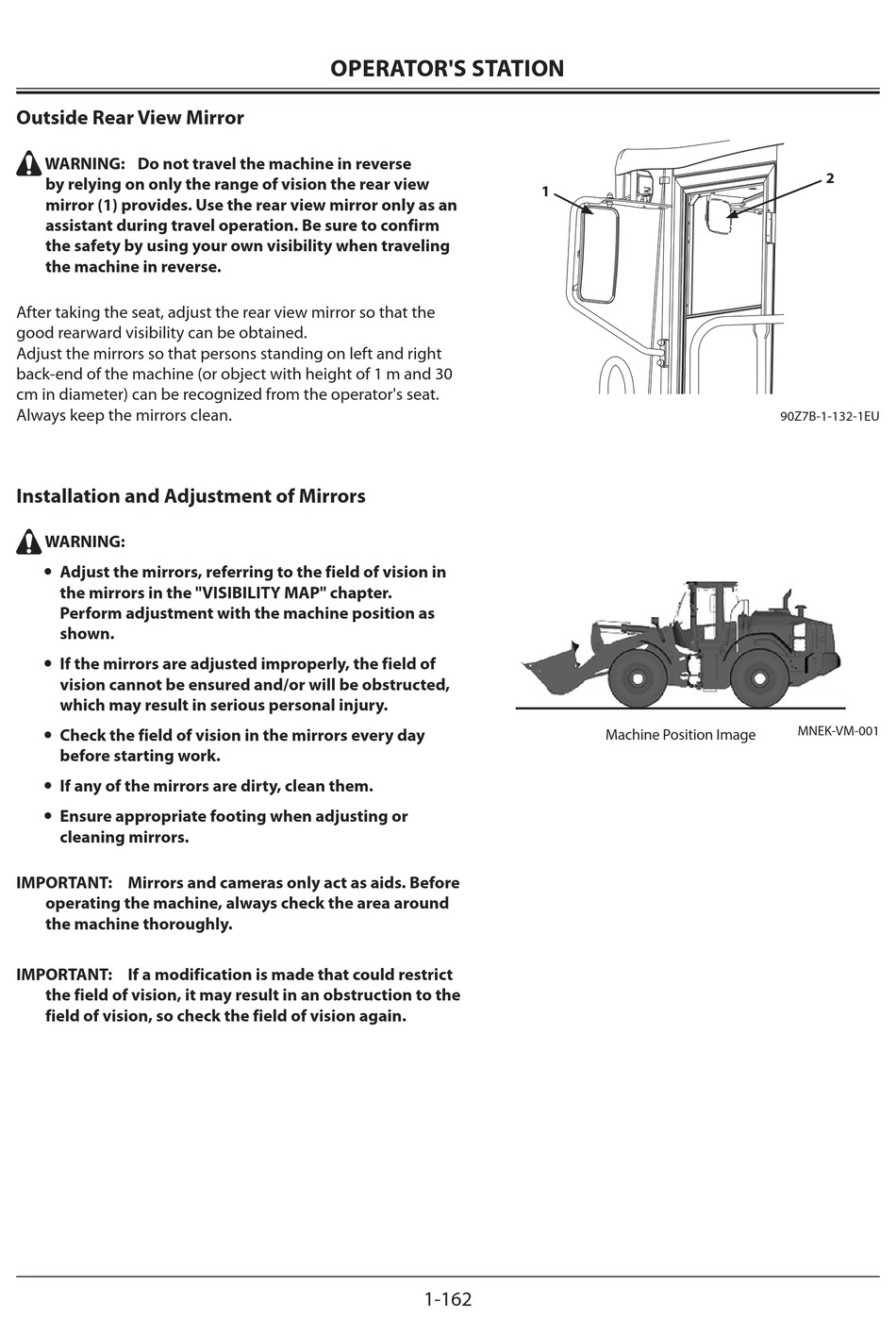

Outside Rear View Mirror

d
WARNING: Do not travel the machine in reverse
by relying on only the range of vision the rear view
mirror (1) provides. Use the rear view mirror only as an
assistant during travel operation. Be sure to confirm
the safety by using your own visibility when traveling
the machine in reverse.
After taking the seat, adjust the rear view mirror so that the
good rearward visibility can be obtained.
Adjust the mirrors so that persons standing on left and right
back-end of the machine (or object with height of 1 m and 30
cm in diameter) can be recognized from the operator's seat.
Always keep the mirrors clean.

Installation and Adjustment of Mirrors

d
WARNING:
 Adjust the mirrors, referring to the field of vision in
the mirrors in the "VISIBILITY MAP" chapter.
Perform adjustment with the machine position as
shown.
 If the mirrors are adjusted improperly, the field of
vision cannot be ensured and/or will be obstructed,
which may result in serious personal injury.
 Check the field of vision in the mirrors every day
before starting work.
 If any of the mirrors are dirty, clean them.
 Ensure appropriate footing when adjusting or
cleaning mirrors.
IMPORTANT: Mirrors and cameras only act as aids. Before
operating the machine, always check the area around
the machine thoroughly.
IMPORTANT: If a modification is made that could restrict
the field of vision, it may result in an obstruction to the
field of vision, so check the field of vision again.
OPERATOR'S STATION
1-162
1
Machine Position Image
2
90Z7B-1-132-1EU
90Z7B-1-132-1EU
MNEK-VM-001
