TP Cable Termination and Recommendations

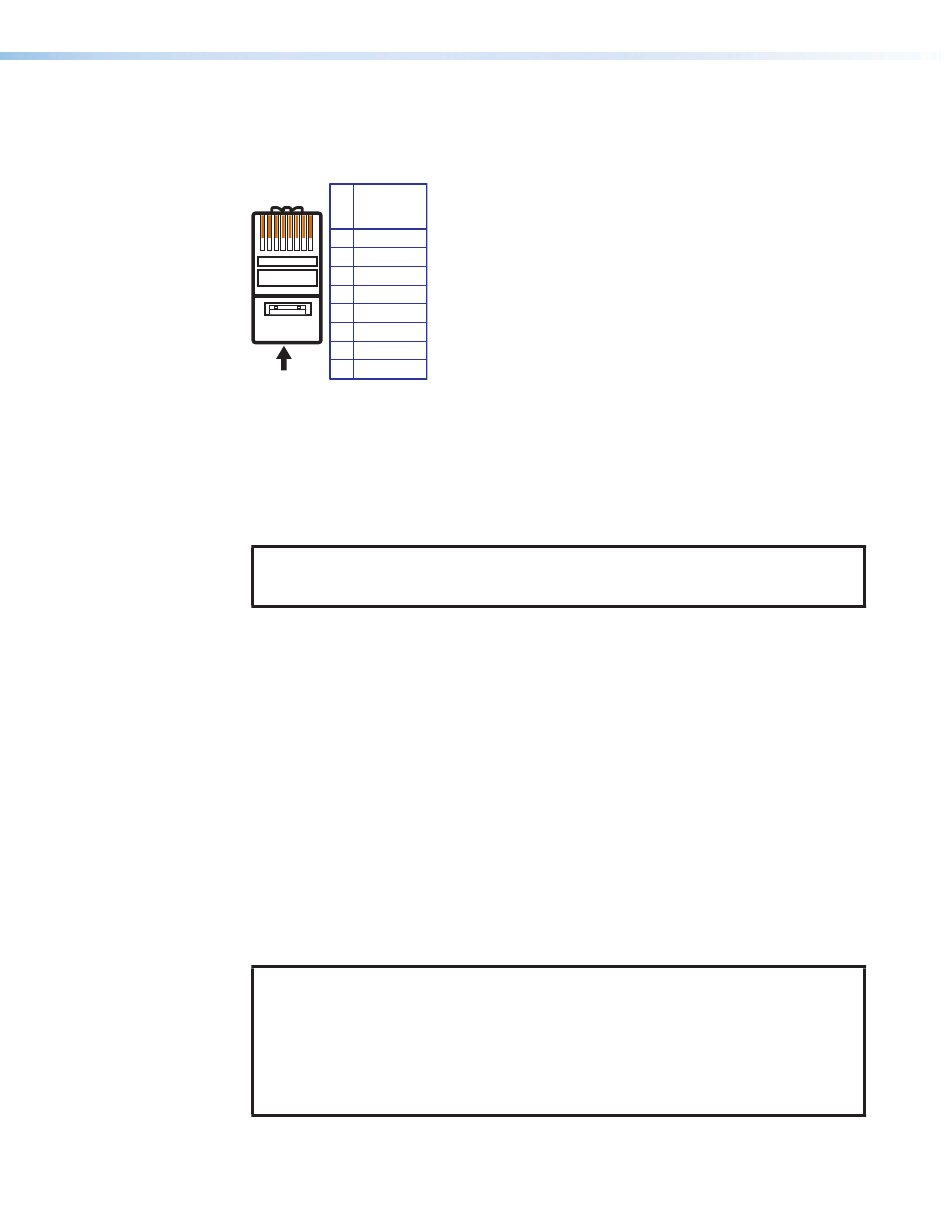

Figure 8 details the recommended termination of both ends of TP cables with RJ-45
connectors in accordance with the TIA/EIA-T568B wiring standard.
12345678
TP Wires
Figure 8.
Supported Cables
The DTP2 T 201 D Series of transmitters are compatible with shielded twisted pair (F/UTP,
SF/UTP, and S/FTP) cable.
NOTE: Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201
Cable Recommendations
Extron recommends using the following practices to achieve full transmission distances up
to 330 feet (100 meters) and reduce transmission errors.
•
•
•
•
NOTES: When using STP cable in bundles or conduits, consider the following:
Pins:
TIA/EIA
T568 B
Pin
Wire color
1
White-orange
Orange
2
3
White-green
4
Blue
5
White-blue
Green
6
7
White-brown
8
Brown
TP Cable Termination
cable to link the transmitter and receiver. The DTP2 T 201 D products do not work
properly with these cables.
Use the following Extron XTP DTP 24 SF/UTP cables and DTP 24 connectors for the
best performance:
•
XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool
XTP DTP 24P/1000 Plenum 1000' (305 m) spool
•
•
XTP DTP 24 Plug
If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid
conductor, STP cable with a bandwidth of at least 400 MHz.
Terminate cables with shielded connectors to the TIA/EIA-T568B standard.
Use no more than two pass-through points, which may include patch points, punch
down connectors, couplers, and power injectors. If these pass-through points are
required, use CAT 6 or 6a shielded couplers and punch-down connectors.
•
Do not exceed 40% fill capacity in conduits.
•
Do not comb the cable for the first 20 meters, where cables are straightened,
aligned, and secured in tight bundles.
•
Loosely place cables and limit the use of tie wraps or Velcro
•
Separate twisted pair cables from AC power cables.
DTP2 T 201 D Transmitter • Installation and Operation
.
®
