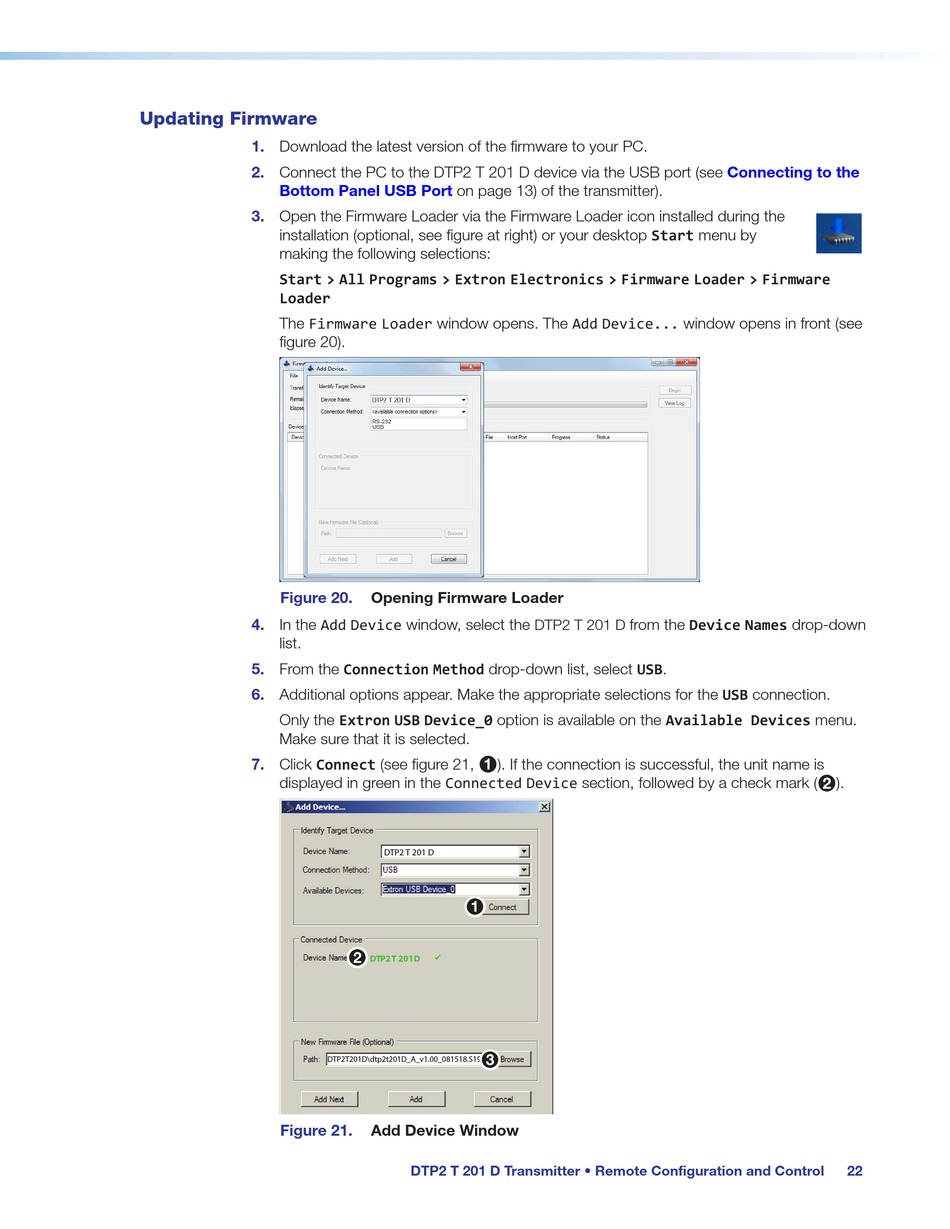

Updating Firmware
1.
Download the latest version of the firmware to your PC.
2.
Connect the PC to the DTP2 T 201 D device via the USB port (see
Bottom Panel USB Port
3.
Open the Firmware Loader via the Firmware Loader icon installed during the
installation (optional, see figure at right) or your desktop Start menu by
making the following selections:
Start > All Programs > Extron Electronics > Firmware Loader > Firmware
Loader
The Firmware Loader window opens. The Add Device... window opens in front (see
figure 20).
Figure 20.
In the Add Device window, select the DTP2 T 201 D from the Device Names drop-down
4.
list.
5.
From the Connection Method drop-down list, select USB.
6.
Additional options appear. Make the appropriate selections for the USB connection.
Only the Extron USB Device_0 option is available on the Available Devices menu.
Make sure that it is selected.
7.
Click Connect (see figure 21,
displayed in green in the Connected Device section, followed by a check mark (
Figure 21.
on page 13) of the transmitter).
Opening Firmware Loader
). If the connection is successful, the unit name is
1
DTP2 T 201 D
1
1 1
1
2 2
2
2
DTP2 T 201 D
3
3 3
DTP2T201D\dtp2t201D_A_v1.00_081518.S19
Add Device Window
DTP2 T 201 D Transmitter • Remote Configuration and Control
Connecting to the
).
2
22
