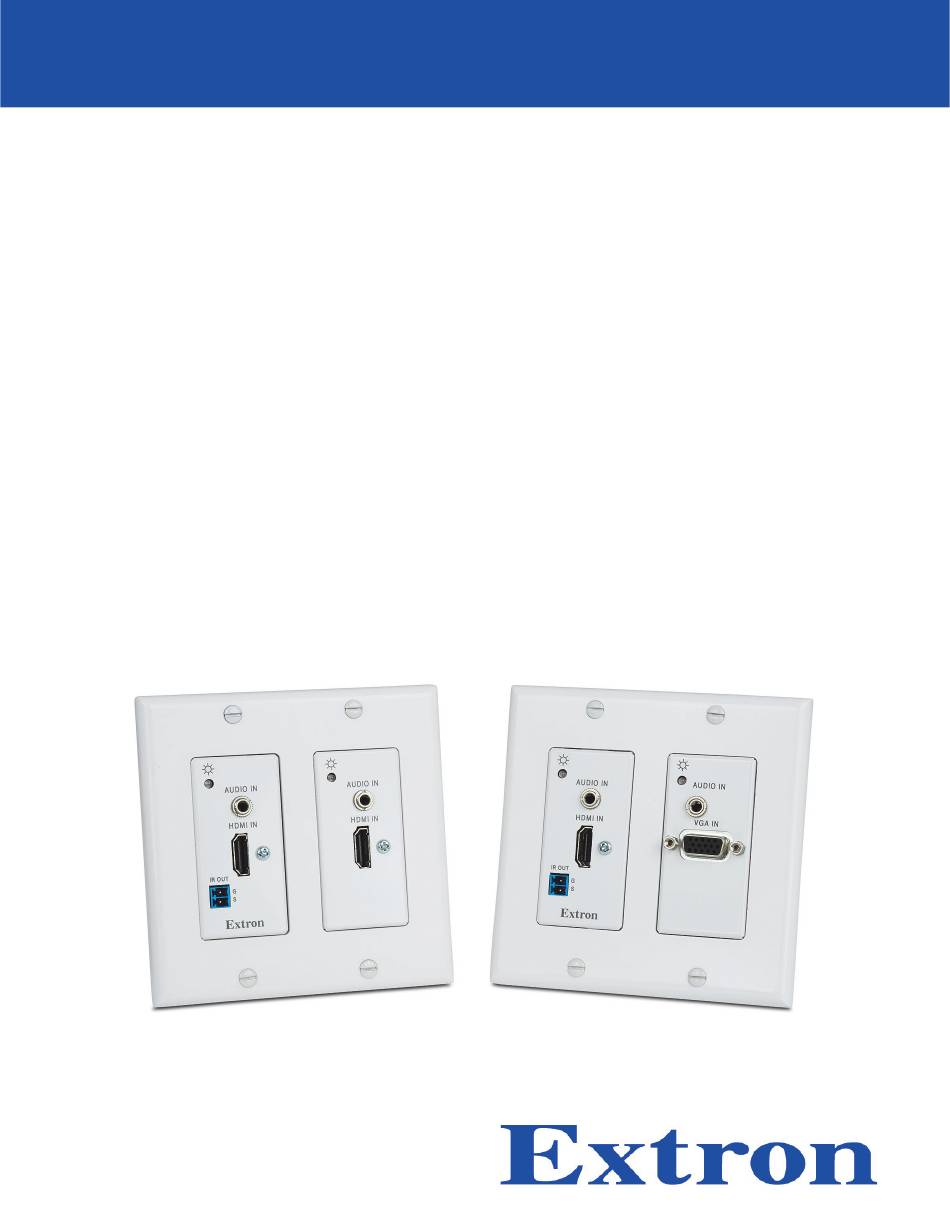

- Page 1 User Guide HDMI Transmitters DTP T HWP D and DTP T UWP D Series HDMI Twisted Pair Extender Transmitters 68-2547-01 Rev. F 02 19...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVISO: Questo simbolo, ,quando viene utilizzato il prodotto, serve WARNING: This symbol, , when used on the product, is intended to ad avvisare l’utente della presenza di tensioni pericolose non isolate alert the user of the presence of uninsulated dangerous voltage within all’interno del prodotto, che può...
- Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警 告 경고: 이 기호 若產品 上使 用此 符 號 ， 是 為了提 醒 使 用者，產品 機 殼內 存 在 著 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 可能會導致觸電之風險的未絕緣危險電壓。 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다. 注意 若產品上使用此符號， 是為了提醒使用者， 設備隨附的用戶手冊中有 주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와 重要的操作和維護 （維修） 説明。...
- Page 4 Regulatory Compliance Guide” on the Extron website. Copyright © 2017-2018 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C...
-
Page 7: Table Of Contents
Contents Introduction Remote Control ............1 ........... 17 About this Guide ..........1 Contact Closure Control ........17 About the DTP T HWP D and DTP T UWP D Simple Instruction Set Control ......17 Extenders ............1 Host-to-Extender Communications ....17 Twisted Pair Cable Advantages ....... -
Page 9: Introduction
Introduction • About this Guide About the DTP T HWP D and DTP T UWP D Extenders • • Features About this Guide This guide provides instructions for experienced, professional installers to install, operate, and configure the Extron DTP T HWP D and DTP T UWP D family of High-Definition Multimedia Interface (HDMI ) and VGA Extenders. -
Page 10: Twisted Pair Cable Advantages
DTP T HWP D and DTP T UWP D systems consist of a transmitter (Tx) and a receiver (Rx). The transmitters and corresponding compatible receivers are sold separately. Each purchased transmitter is shipped with a single external desktop 12 VDC power supply that accepts 100 to 240 VAC, 50-60 Hz input. -
Page 11: Installation And Operation
Installation and Operation This section describes the installation and the operation of the extenders, including: • Mounting the Transmitter • DTP T HWP D Connections DTP T UWP D Connections • • Twisted Pair Recommendations for DTP Communication • Power Supply Wiring •... -
Page 12: Site Preparation And Wall Box Installation
Site Preparation and Wall Box Installation Choose a location that allows cable runs without interference. Allow enough depth for both the wall box and the cables. Install the cables into the wall, furniture, or conduits before installing the wallplate. NOTE: The extender units are very deep and have connectors on the back side. Extron recommends a 2-gang wall box that has a depth of at least 3.0 inches (7.6 cm) to accommodate the connectors and cables. -
Page 13: Mud Ring Installation
Feed the twisted pair cables and, if applicable, the power cables through the opening and through the wall box punch-out holes, securing them with cable clamps to provide strain relief. NOTES: • In order to fit in the wall box, the twisted pair cables and RJ-45 connectors should not have a boot installed. -
Page 14: Final Installation
Final Installation After testing and making any adjustments, do the following: At the power outlet, unplug the power supply. NOTE: One power supply can power both the transmitter and the receiver (see Power Supply Wiring on page 12). Mount the transmitter into the wall box or mud ring and attach the supplied decorator- style faceplate to the unit (see figure 2 on page 4). -
Page 15: Dtp T Hwp D Connections
DTP T HWP D Connections Front Panel AUTO SW AUDIO IN AUDIO IN HDCP HDMI IN HDMI IN CONFIG IR OUT Extron DTP T HWP 232/332 D Figure 4. DTP T HWP D Front Panel Connectors Front Panel Audio input connector — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack. -
Page 16: Rear Panel
Rear Panel DTP T HWP/UWP 232/332 D Figure 6. DTP T HWP D Rear Panel Connectors Rear Panel DC power input connector — Plug the included external 12 VDC power supply into either this 2-pole connector (see Power supply wiring on page 12 to wire the power connector) or the power input connector on the receiver (see the user guide of your receiver for more information). -
Page 17: Dtp T Uwp D Connections
DTP T UWP D Connections Front Panel AUTO SW AUDIO IN AUDIO IN AUDIO IN HDCP HDMI IN VGA IN HDMI IN CONFIG IR OUT Extron DTP T UWP 232/332 D 232/332 D Figure 7. DTP T UWP D Front Panel Connectors Front Panel Audio input connector —... -
Page 18: Rear Panel
Rear Panel DTP T HWP/UWP 232/332 D Rear Panel Figure 8. DTP T UWP D Rear Panel Connectors DC power input connector — Plug the included external 12 VDC power supply into either this 2-pole connector (see Power Supply Wiring on page 12 to wire the power connector) or the power input connector on the receiver (see the user guide of your receiver for more information). -
Page 19: Twisted Pair Recommendations For Dtp Communication
Twisted Pair Recommendations for DTP Communication Use the following pin configurations for both ends of the shielded twisted pair cables. Pins: TIA/EIA 12345678 T568-B Wire color White-orange Orange White-green Blue White-blue Green White-brown Brown TP Wires Figure 9. Twisted Pair Cable Configuration Supported Cables The distribution amplifiers are compatible with shielded twisted pair cable (F/UTP, SF/UTP, and S/FTP). -
Page 20: Power Supply Wiring
Power Supply Wiring NOTES: • Only one power supply is required for both the transmitter and receiver. A single power supply connected to either unit in the pair powers both units. • A power supply is included with each individually-packaged transmitter. •... - Page 21 ATTENTION: • Always use a power supply supplied and or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product. • Utilisez toujours une source d’alimentation fournie ou recommandée par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute conformité...
-
Page 22: Rs-232 And Ir Connector Wiring
RS-232 and IR Connector Wiring NOTE: Do not tin the wires before installing them in the direct insertion connector. Tinned wires are not as secure in the connectors and could be pulled out. Remote RS-232 and Contact Closure Connector Wire the rear Remote RS-232 and contact closure connector as shown in figure 11. Connected RS-232 and Tx/Rx Contact Closure Device Pins... -
Page 23: Operation
Operation AUTO SW AUTO SW AUDIO IN AUDIO IN AUDIO IN AUDIO IN HDCP HDCP VGA IN HDMI IN HDMI IN HDMI IN CONFIG CONFIG IR OUT IR OUT Extron Extron DTP T HWP 232/332 D DTP T UWP 232/332 D Front Panel Front Panel Figure 14. -
Page 24: Audio Configuration
Audio Configuration The DTP T HWP D and DTP T UWP D series of products can embed analog audio inputs onto the digital video output. Use Extron PCS software (available at www.extron.com) or SIS commands to select the desired embedded audio mode. NOTE: If no VGA or HDMI signal is present, analog audio will be transported over the DTP connection to the analog audio output of the receiver. -
Page 25: Remote Control
Remote Control This section includes: Contact Closure Control • • Simple Instruction Set Control The DTP T HWP D and DTP T UWP D family of transmitters can be remotely controlled via their front panel configuration (USB) port, rear panel Remote RS-232 port, and rear panel Remote Contact port. -
Page 26: Extender-Initiated Messages
Examples of the extender-initiated messages are listed below: © Copyright 20yy Extron Electronics DTP T HWP 232 D nnnn The extender issues the copyright message when it first powers on. is the firmware version number and is the part number. - Page 27 Symbol definitions DTP T HWP 232/332 D and DTP UWP 232/332 D models = Carriage return/line feed = Carriage return (no line feed) = Pipe (can be used interchangeably with the character) • = Space = Escape key = Can be used interchangeably with the character = Input number 0 through 2 (0 = deselect input [break tie].
-
Page 28: Command And Response Table For Sis Commands
Command and Response Table for SIS Commands SIS Command Response Additional Description Command Function (Host to Unit) (Unit to Host) Select and view input Select an input •All Select input to transmit to the connected receiver. Example: Select input 1. In01•All View input selection Input... - Page 29 SIS Command Response Additional Description Command Function (Host to Unit) (Unit to Host) Analog audio mute Mute or unmute analog audio = 0 (off, default), 1 (on) Read analog audio mute Analog audio mute status = Analog audio breakaway Select program audio input only = 0 - 2 only (analog audio input) •...
- Page 30 SIS Command Response Additional Description Command Function (Host to Unit) (Unit to Host) Video output color bit depth Set video color bit depth mode 0 = auto based on sink (default) BITD BitdV 1 = force 8-bit View video color bit depth mode VBITD NOTE: See table 1 for the EDID values.
- Page 31 SIS Command Response Additional Description Command Function (Host to Unit) (Unit to Host) Device name EX& X&] X& Set the device name • Change the device name to Set device name to factory default Set device name to default. • •...
-
Page 32: Reference Information
Reference Information This section includes decorator-style wallplate template dimensions for installation of the DTP T HWP D and DTP T UWP D family of transmitters. Decorator-Style Wallplate Template Dimensions To create a template, use the dimensions shown on figure 15. NOTES: •... - Page 33 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
