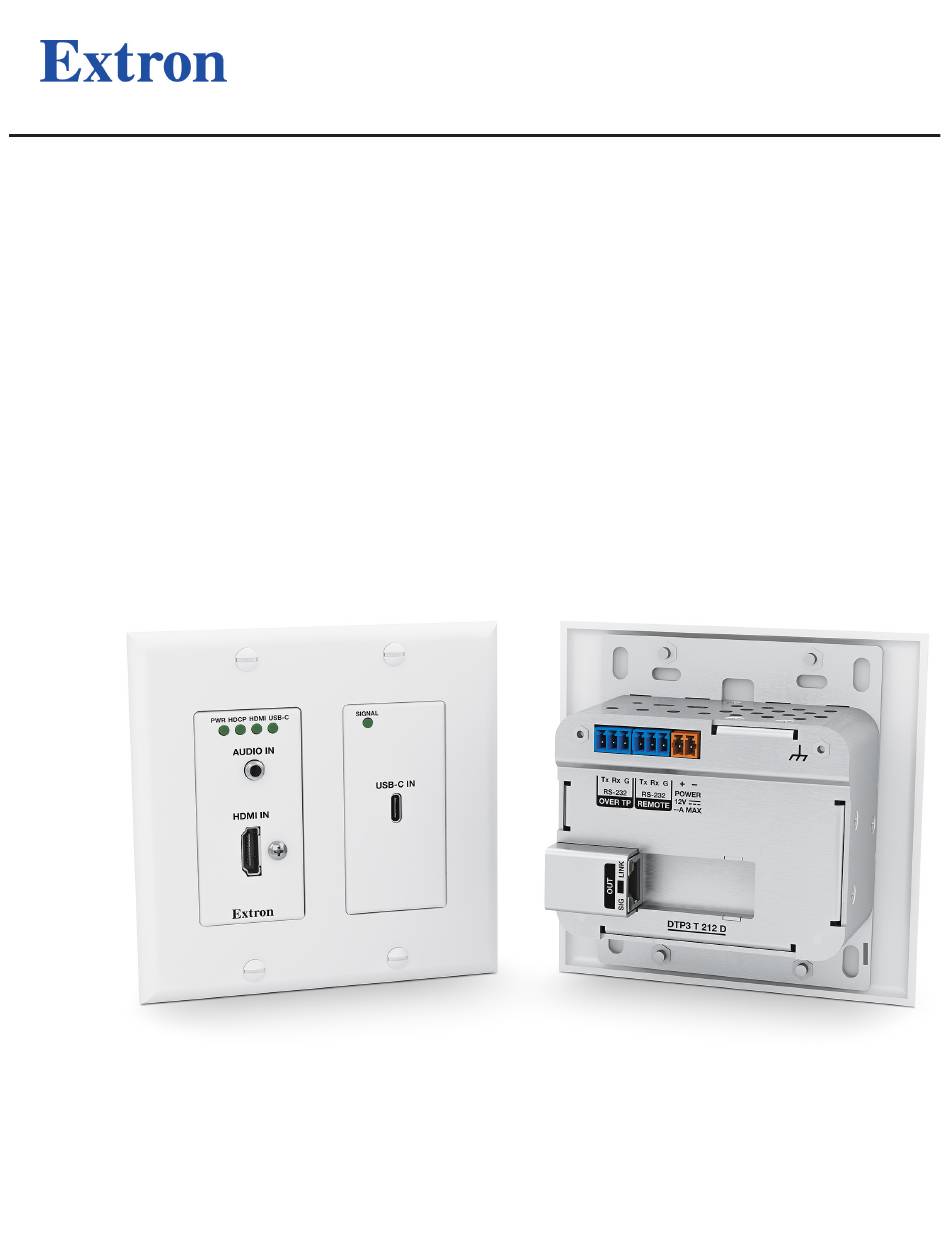

  • Page 1 DTP3 T 212 D Two Input 4K/60 DTP3 Transmitter for USB-C & HDMI with Audio Embedding – Decorator-Style Wallplate User Guide HDMI Extenders 68-3709-01, Rev. A 10 24...
  • Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, WARNING: This symbol, , when used on the product, is intended to signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une alert the user of the presence of uninsulated dangerous voltage within the tension électrique dangereuse susceptible de provoquer un choc électrique.
  • Page 3 • 安全说明 简体中文 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电 压， 有触电危险。 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 用的特性等相关内容，敬请访问 Extron 网站 , www.extron.com，参见 Extron 安全 规范指南，产品编号 68-290-01 。 安全記事 • 繁體中文 안전 지침 • 한국어 警告: 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 電壓，...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C...
  • Page 7 Product Configuration Software ....................18 Software/Firmware Installation ......................18 Connecting to PCS ..........................20 Device Discovery Panel ........................20 Offline Device Preview ........................21 Software Overview ..........................22 Software Menu ..........................22 Device Menu ..........................24 DTP3 T 212 D • Contents...
  • Page 8 Device-Initiated Power-Up Message ....................25 Error Responses ..........................26 Timeout ............................26 Unsolicited Responses ........................26 Using the Command and Response Table ..................26 Symbol Definitions .......................... 27 Command and Response Table for SIS Commands ................28 DTP3 T 212 D • Contents viii...
  • Page 9 DTP3 T 212 D. Product Description The DTP3 T 212 D is a two-input, decorator-style, multi-format transmitter consisting of HDMI and USB-C inputs as well as an analog audio input and a DTP/HDBaseT output. The transmitter supports resolutions up to 4096x2160 @ 60 Hz at 4:4:4 chroma sampling.
  • Page 10 AV devices to be controlled without the need for additional cabling. • Supports multiple embedded audio formats — The DTP3 T 212 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with connected sources. •...
  • Page 11 Application Diagram Figure 1 shows a typical application for DTP3 T 212 D. MODEL 80 FLAT PANEL 4K HDR Display Extron OCS 100C Occupancy Sensor HDMI/CEC Extron USB-C Video Laptop DIGITAL I / O +V OUT IR / S POWER HD CTL 100 0.3A MAX...
  • Page 12 Installation This section details the installation of the DTP3 T 212 D, including: • Mounting the Transmitter • Front and Top Panel Connections • Rear Panel Connections • Connection Details Mounting the Transmitter ATTENTION: • Installation and service must be performed by authorized personnel.
  • Page 13 8. Connect front panel devices (see Front and Top Panel Connections on page 7), restore the power supply, and test the transmitter and receiver system. Make cabling adjustments before final installation, as the cables are inaccessible afterwards. DTP3 T 212 D • Installation...
  • Page 14 2. Mount the transmitter into the wall box or mud ring, and attach the supplied decorator style faceplate to the unit (see figure 2 on page 5). 3. At the power outlet, reconnect the power supply. This powers up both units if the compatible receiver is connected. DTP3 T 212 D • Installation...
  • Page 15 USB‑C input — Connect a USB-C source device to the USB-C input. Configuration port — Connect a USB-C cable to a computer to update firmware via Product Configuration Software (PCS) (see the DTP3 T 212 D Help File) or the Firmware Loader software (see the Firmware Loader Help File for details).
  • Page 16 Set the toggle switch to the OFF position on the DTP3 unit receiving power. DTP3 Endpoint Connected to a DTP3 Endpoint ATTENTION: • The DTP3 T 212 D is SEND POWER Extron configured to output...
  • Page 17 --A MAX Side View DTP3 T 212 D Rear View Figure 6. DTP3 T 212 D Rear Panel Connections Power inlet — Plug the included external 12 VDC power supply into either this 2-pole connector Power (see Supply Wiring on page 11) or the power port on the receiver (see the user guide of your receiver for more information).
  • Page 18 Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. DTP3 T 212 D • Installation...
  • Page 19 Power Supply Wiring A 12 VDC power supply is provided with the DTP3 T 212 D. Follow the instructions and figure 8 on page 12 to wire the provided 2-pole captive screw connector to your power supply. CAUTION: Risk of electric shock. The wires must be kept seperate while the power supply is plugged in.
  • Page 20 Power Connection Wiring Over TP RS‑232 and Remote RS‑232 Control Wiring See figure 9 to wire the RS-232 ports. Ground (G) Receive (Rx) Do not tin the wires! Transmit (Tx) Figure 9. Remote RS‑232 Wiring DTP3 T 212 D • Installation...
  • Page 21 4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket ( 5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length ( DTP3 T 212 D • Installation...
  • Page 22 Operation This section describes the operation and configuration of the DTP3 T 212 D, including: • Front Panel Indicators • Operation Front Panel Indicators HDCP HDMI USB-C SIGNAL AUDIO IN USB-C IN HDMI IN Figure 11. DTP3 T 212 D Front Panel Features NOTE: LEDs light green.
  • Page 23 NOTE: The switcher can also be reset to its factory default settings using SIS commands (see Resets page 30) or PCS (see the DTP3 T 212 D Help File). Reset Mode Summary Activation Result...
  • Page 24 28) or PCS (see the DTP3 T 212 D PCS Help File), is for devices such as Mac computers, iPhones, iPads, and some Windows 7 sources that always encrypt their output, if the downstream sink is HDCP compliant.
  • Page 25 This allows the display to sleep if there is no signal present on the selected input. This can be changed via SIS command (see Video Mute on page 28) or PCS (see the DTP3 T 212 D Help File). NOTE: Video mute reverts to default (unmuted) after a power cycle. Auto Input Configuration If video signal is present on the selected input, the digital or analog input audio embedded within the video signal is transmitted over the TMDS channel to the receiver.
  • Page 26 Product Configuration Software The DTP3 T 212 D can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the DTP3 T 212 D Help File for detailed control information). Topics include: •...
  • Page 27 For firmware, type in the name of the device into the Search Firmware field (see figure 14), and select the desired device. The selected firmware page opens below the search. NOTE: The desired device is not listed unless a firmware update is available. Figure 14. Firmware Download Center DTP3 T 212 D • Product Configuration Software...
  • Page 28 Device Discovery panel (see figure 15). Figure 15. Device Discovery Screen 3. Select the DTP3 T 212 D device by clicking on it to highlight it in the list ( 4. Click Connect ( DTP3 T 212 D • Product Configuration Software...
  • Page 29 (see the image below) has a grayed out indicator (circle) to indicate DTP3 T 212 D that there is no device connected and the software is running in offline configuration mode. DTP3 T 212 D • Product Configuration Software...
  • Page 30 Software Overview NOTE: For details about specific software features, see the DTP3 T 212 D Help File. Software Menu The software menu contains options pertaining to PCS settings (see figure 18). Figure 18. Software Menu Show Expanded Device Tabs Selecting Show Expanded Device Tabs from the software menu displays the device IP address or connection method in the Device tab (see figure 19).
  • Page 31 2. Click the Details button ( ) for more information. 3. To display details about third-party software packages and associated licensing, click Licenses ( 4. Click OK ( ) to close the dialog box. DTP3 T 212 D • Product Configuration Software...
  • Page 32 • DTP3 T 212 D Help — Opens the DTP3 T 212 D Help File in a separate window. • About this Module — Opens the About This Module dialog box, with the module part number and firmware version of the connected device.
  • Page 33 SIS Configuration and Control Use Simple Instruction Set (SIS) commands to configure the DTP3 T 212 D. This section provides information about using those commands. The following topics are discussed: • Host Control Ports • Simple Instruction Set Control •...
  • Page 34 ASCII to Hex Conversion Table NOTE: For commands and examples of computer or device responses used in this guide, the character "0" is the number zero and "O" is the capital letter "o". DTP3 T 212 D • SIS Configuration and Control...
  • Page 35 1 = Video detected with HDCP 2 = Video detected without HDCP = Output HDCP status 0 = No active sink detected 1 = Sink detected, output not encrypted 2 = Sink detected, output encrypted DTP3 T 212 D • SIS Configuration and Control...
  • Page 36 HDCP HdcpE inputs X@•X@] View HDCP authorization EHDCP status X@•X@] Verbose mode 2/3 HdcpE KEY: = Input ( = HDMI = USB-C = Status: = Off, disable = On, enable (default) DTP3 T 212 D • SIS Configuration and Control...
  • Page 37 Set output UART port LRPT LrptO1* X1%] View output port setting O1LRPT X1%] Verbose mode 2/3 LrptO1* KEY: = Serial UART Port configuration: = Over TP Pass through (default) = Host mode DTP3 T 212 D • SIS Configuration and Control...
  • Page 38 -Thus, 14 Jul 2022 23:18 UTC> KEY: = DTP/HDBT Switch Position: = DTP mode (default) = HDBT mode = Remote Power Mode: = No remote power/off = DTP Plus 48 VDC Resets Full factory reset ZXXX DTP3 T 212 D • SIS Configuration and Control...
  • Page 39 Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
