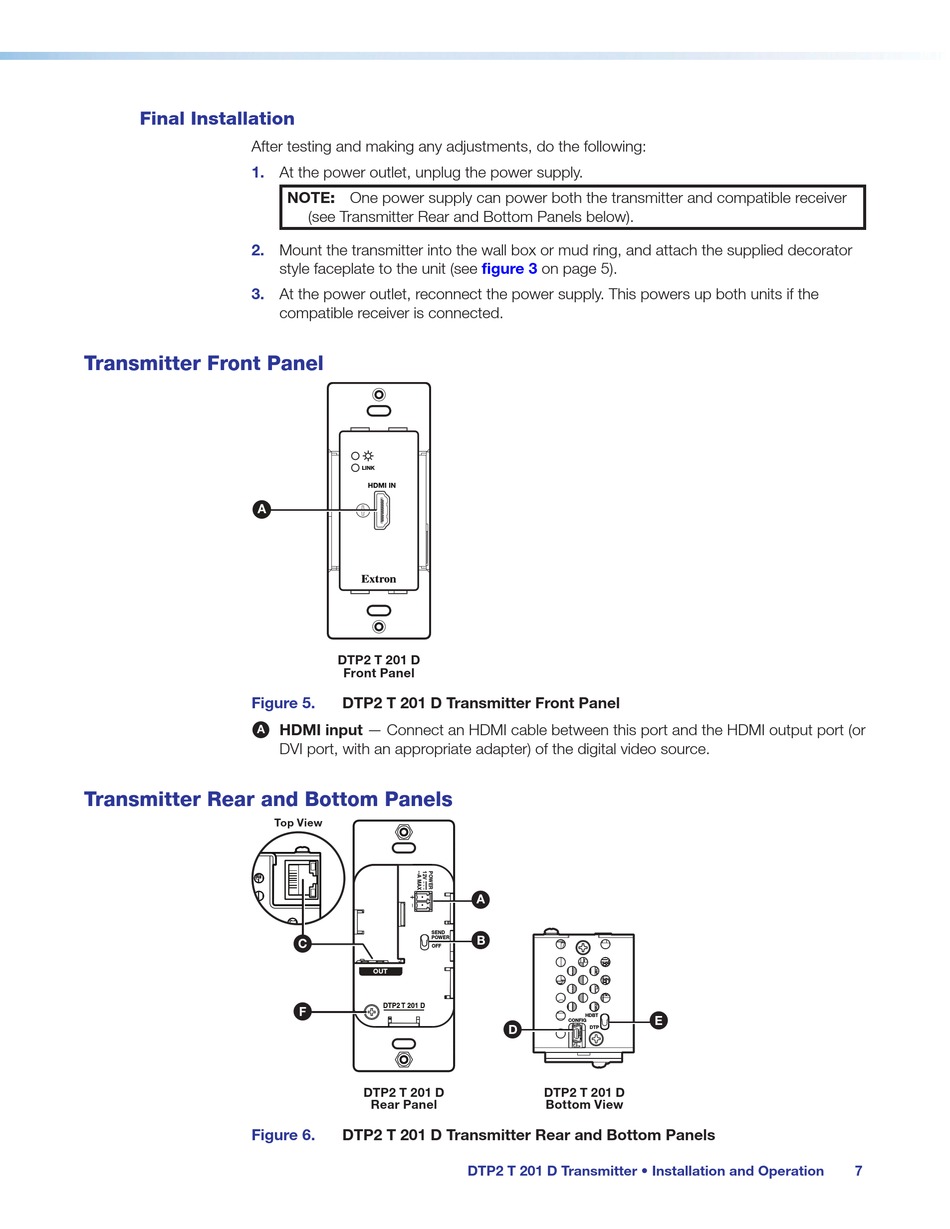

Final Installation

After testing and making any adjustments, do the following:
1.
2.
3.

Transmitter Front Panel

A
Figure 5.
A

Transmitter Rear and Bottom Panels

Figure 6.
At the power outlet, unplug the power supply.
NOTE: One power supply can power both the transmitter and compatible receiver
(see Transmitter Rear and Bottom Panels below).
Mount the transmitter into the wall box or mud ring, and attach the supplied decorator
style faceplate to the unit (see
At the power outlet, reconnect the power supply. This powers up both units if the
compatible receiver is connected.
LINK
HDMI IN
a
DTP2 T 201 D
Front Panel
DTP2 T 201 D Transmitter Front Panel
HDMI input — Connect an HDMI cable between this port and the HDMI output port (or
DVI port, with an appropriate adapter) of the digital video source.
Top View
SEND
POWER
C
OFF
OUT
DTP2 T 201 D
F
DTP2 T 201 D
Rear Panel
DTP2 T 201 D Transmitter Rear and Bottom Panels
figure 3 on page 5).
A
B
HDBT
CONFIG
D
DTP
DTP2 T 201 D
Bottom View
DTP2 T 201 D Transmitter • Installation and Operation
E
