Trim back and insulate exposed cable shields with heat shrink to reduce the chance of
short circuits.
To prevent short circuits, the outer foil shield can be cut back to the point where the
cable exits the cable clamp.
8.
Connect the cables to the rear of the unit.
9.
Connect front panel devices (see
connector details), restore the power supply, and test the transmitter and receiver
system. Make cabling adjustments before final installation, as the cables are
inaccessible afterwards.
Mud Ring Installation
1.
Using the mud ring as a guide, mark the edges and cut out the material within the
marked area.
2.
Insert the mud ring into the opening and rotate and secure the locking arms with the
supplied screws shown (see figure 4).

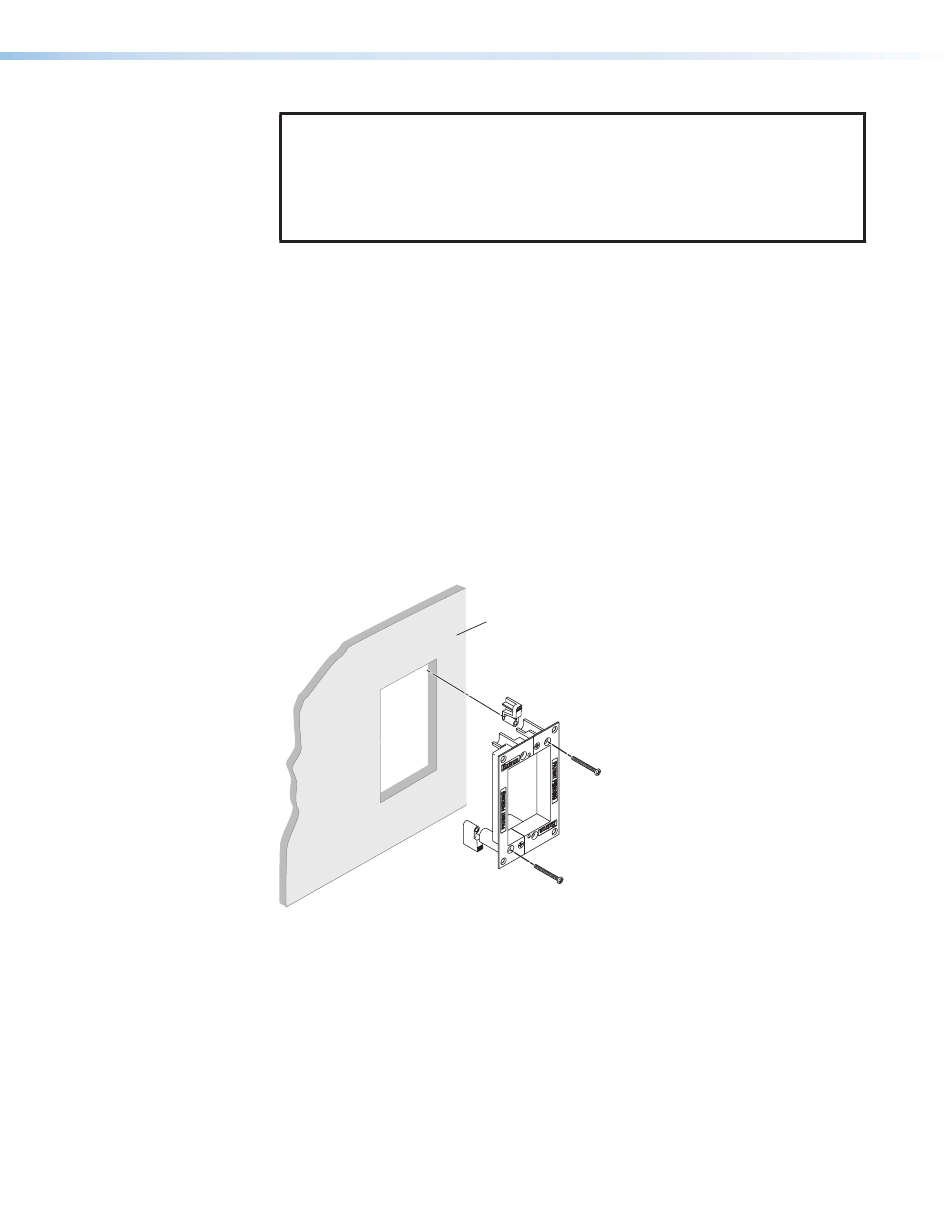

Figure 4.
3.
Follow steps 6 through 9 of
page 4, and
In order to fit in the wall box, the twisted pair cables and RJ-45 connectors
should not have a boot installed.
One power supply can power both the transmitter and compatible receiver,
so only one unit needs a power supply (see
page 11).
Transmitter Front Panel
Wall
Wall Mounting
Bracket
Installing the Mud Ring
Site Preparation and Wall Box Installation
Final Installation
on the next page.
DTP2 T 201 D Transmitter • Installation and Operation
Power Supply Wiring
on
on the next page for
starting on
6
