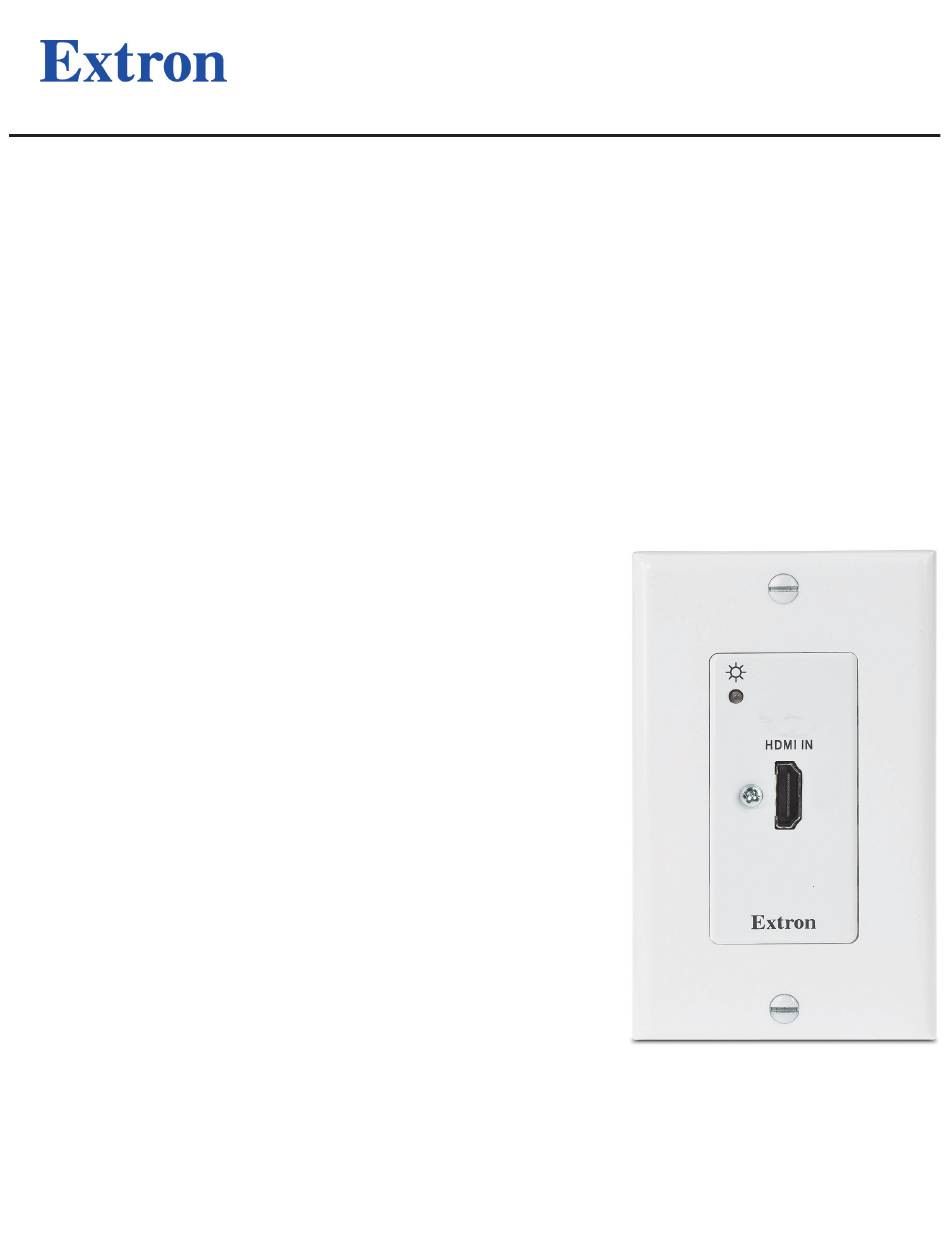

- Page 1 DTP2 T 201 D HDMI Twisted Pair Extender Transmitter User Guide DTP Systems 68-3339-01, Rev. C 06 24...
- Page 2 Safety Instructions...
- Page 3 Copyright www.extron.com © 2021-2024 Extron. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ® ), registered service marks( ), and trademarks( ) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the Terms of Use page at www.extron.com):...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C...
-
Page 7: Table Of Contents
Contents Introduction ............................. 1 About this Guide ..............................1 About the DTP2 T 201 D Extenders ........................1 Twisted Pair Cable Advantages ........................2 Transmission Distance ...........................2 Features ................................2 Installation and Operation ........................4 Mounting the Transmitter ............................4 UL and Safety Guidelines..........................4 Site Preparation and Wall Box Installation .....................4 Mud Ring Installation ............................6... - Page 8 DTP2 T 201 D • Contents viii...
-
Page 9: Introduction
About the DTP2 T 201 D Extenders The Extron DTP2 T 201 D is a one-gang decorator-style transmitter for sending HDMI signals up to 330 feet (100 meters) over a shielded CATx cable to an Extron DTP-enabled product. It supports video resolutions up to 4K/60 at 4:4:4 chroma sampling and complies with HDCP 2.3. -
Page 10: Twisted Pair Cable Advantages
(100 meters). Features • Transmits HDMI up to 330 feet (100 meters) over a shielded CATx cable — The DTP2 T 201 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure. • Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 chroma sampling requires connection to matching DTP2 products. - Page 11 DTP2 output is compatible with HDBaseT-enabled devices — The DTP2 T 201 D can be configured to send video and embedded audio to an HDBaseT-enabled display. • Supports multiple embedded audio formats — The DTP2 T 201 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources. •...
-
Page 12: Installation And Operation
• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement. The DTP2 T 201 D transmitters can be installed in a one-gang electrical wall box, or with a mud ring, with a decorator-style wallplate cover (supplied). The installation must conform to national and local building, electrical, and safety codes and to the size requirements of the wall plate. - Page 13 Transmitter Front Panel on the next page for connector details), restore the power supply, and test the transmitter and receiver system. Make cabling adjustments before final installation, as the cables are inaccessible afterwards. DTP2 T 201 D • Installation and Operation...
-
Page 14: Mud Ring Installation
2. Mount the transmitter into the wall box or mud ring, and attach the supplied decorator style faceplate to the figure 3 unit (see on page 5). 3. At the power outlet, reconnect the power supply. This powers up both units if the compatible receiver is connected. DTP2 T 201 D • Installation and Operation... -
Page 15: Transmitter Front Panel
CONFIG DTP2 T 201 D DTP2 T 201 D Rear Panel Bottom View Figure 6. DTP2 T 201 D Transmitter Rear and Bottom Panels DC power input Configuration port Send Power toggle switch HDBaseT/DTP toggle switch DTP output Grounding screw... - Page 16 ATTENTION: • The DTP2 T 201 D device is configured to output power to DTP2 models only. If connected to a Legacy DTP device, set the toggle switch to the OFF position. Failure to turn the power Off will damage the connected Legacy DTP device.
- Page 17 SEND SEND POWER INPUT POWER LINK CONFIG OUTPUT DTP2 R 211 CATx Cable up to 330' (100 m) DTP2 T 201 D Local Power Supply Figure 7. Send Power Toggle Switch Configuration DTP2 T 201 D • Installation and Operation...
-
Page 18: Connection Details
Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable Wire color or STP201 cable to link the XTP products or with DTP transmitters or White-orange receivers. The DTP2 T 201 D does not work properly with these Orange cables. White-green •... -
Page 19: Power Supply Wiring
Power Supply Wiring A 12 VDC, 1.8 A power supply is provided with the DTP2 T 201 D. Follow the instructions and figure 9 on page 12 to wire the provided 2-pole captive screw connector to your power supply. CAUTION: Risk of electric shock. - Page 20 4. To verify the power cord polarity before connecting the plug, connect the power supply with no load and check the output with a voltmeter. 5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector. Figure 9. Power Connection Wiring DTP2 T 201 D • Installation and Operation...
-
Page 21: Operation
If all other devices are not turned on before the video source, the image may not appear. Resetting Reset Use the SIS command to reset the transmitter to its factory default settings (see on page 16). DTP2 T 201 D • Installation and Operation... -
Page 22: Sis Configuration And Control
SIS Configuration and Control Use Simple Instruction Set (SIS) commands to configure the DTP2 T 201 D. This section provides information about using those commands. The following topics are discussed: • Host Control Ports • Simple Instruction Set Control •... -
Page 23: Using The Command And Response Table
First character must be a letter and the last character cannot be a hyphen = Firmware version to the second decimal place = Remote power 0 = No remote power (Off) 1 = DTP2 48 VDC (On) DTP2 T 201 D • SIS Configuration and Control... -
Page 24: Command And Response Table For Sis Commands
Inf01*DTP2 • • • • • Query model description 2I/i DTP2 T 201 D DTP2 Wall Plate Verbose mode 2/3 • • • • • Inf02*DTP2 Wall Plate Reset Reset ZXXX DTP2 T 201 D • SIS Configuration and Control... -
Page 25: Software/Firmware Installation
Software/Firmware Installation Firmware for the DTP2 T 201 D can be upgraded using Extron Firmware Loader and a PC. Both Extron Firmware Loader and upgraded firmware for the DTP2 T 201 D can be downloaded from the Extron website. NOTES: •... - Page 26 Double-click the executable file and follow the on-screen directions to install the software. For firmware: a. To install via Firmware Loader, see the Install Firmware topic in the Firmware Loader Help File. DTP2 T 201 D • SIS Configuration and Control...
- Page 27 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
