To install a new wall box, perform steps 1 through 9. If a suitable wall box is already
installed, perform steps 6 through 9, starting below. UL-listed wall boxes are required.
1.
If a wall box is not available to use for a template, use the
Template Dimensions
furniture, cut out the center portion of the template.
2. Place the wall box (or the full-sized template) against the installation surface, and mark
the opening guidelines.
3. Cut out the material from the marked area.
4. Insert the wall box into the opening (see figure 3). The rear connectors on the box or
wall plate should fit easily into the opening. Enlarge or smooth the edges of the opening
as required.
Wall Stud
Signal
Output
Cable
Screws
or Nails

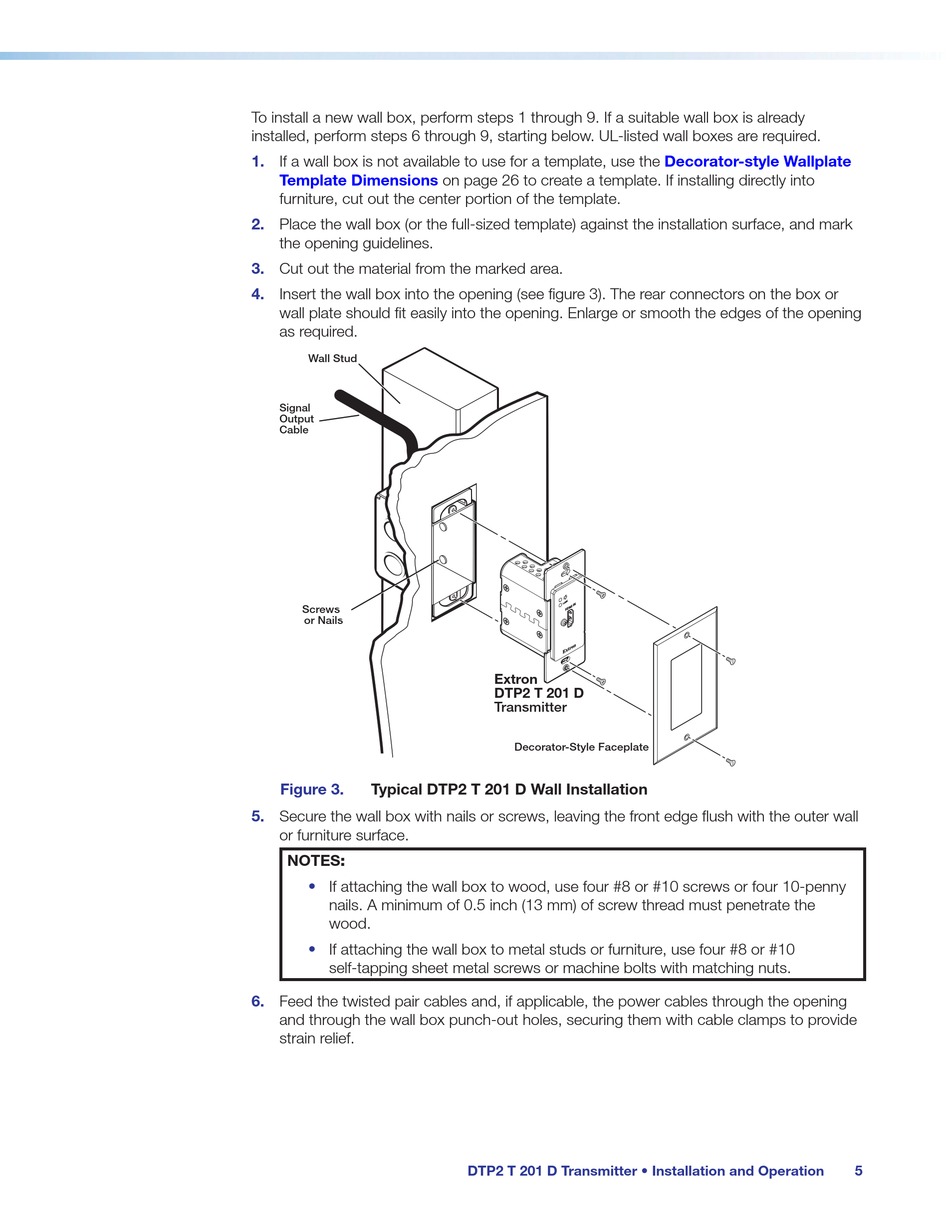

Figure 3. Typical DTP2 T 201 D Wall Installation
5.
Secure the wall box with nails or screws, leaving the front edge flush with the outer wall
or furniture surface.
NOTES:
• If attaching the wall box to wood, use four #8 or #10 screws or four 10-penny
nails. A minimum of 0.5 inch (13 mm) of screw thread must penetrate the
wood.
• If attaching the wall box to metal studs or furniture, use four #8 or #10
self-tapping sheet metal screws or machine bolts with matching nuts.
6.
Feed the twisted pair cables and, if applicable, the power cables through the opening
and through the wall box punch-out holes, securing them with cable clamps to provide
strain relief.
on page 26 to create a template. If installing directly into
K
L IN
M I IN
H D
a
Extron
DTP2 T 201 D
Transmitter
Decorator-Style Faceplate
DTP2 T 201 D Transmitter • Installation and Operation
Decorator-style Wallplate
5
