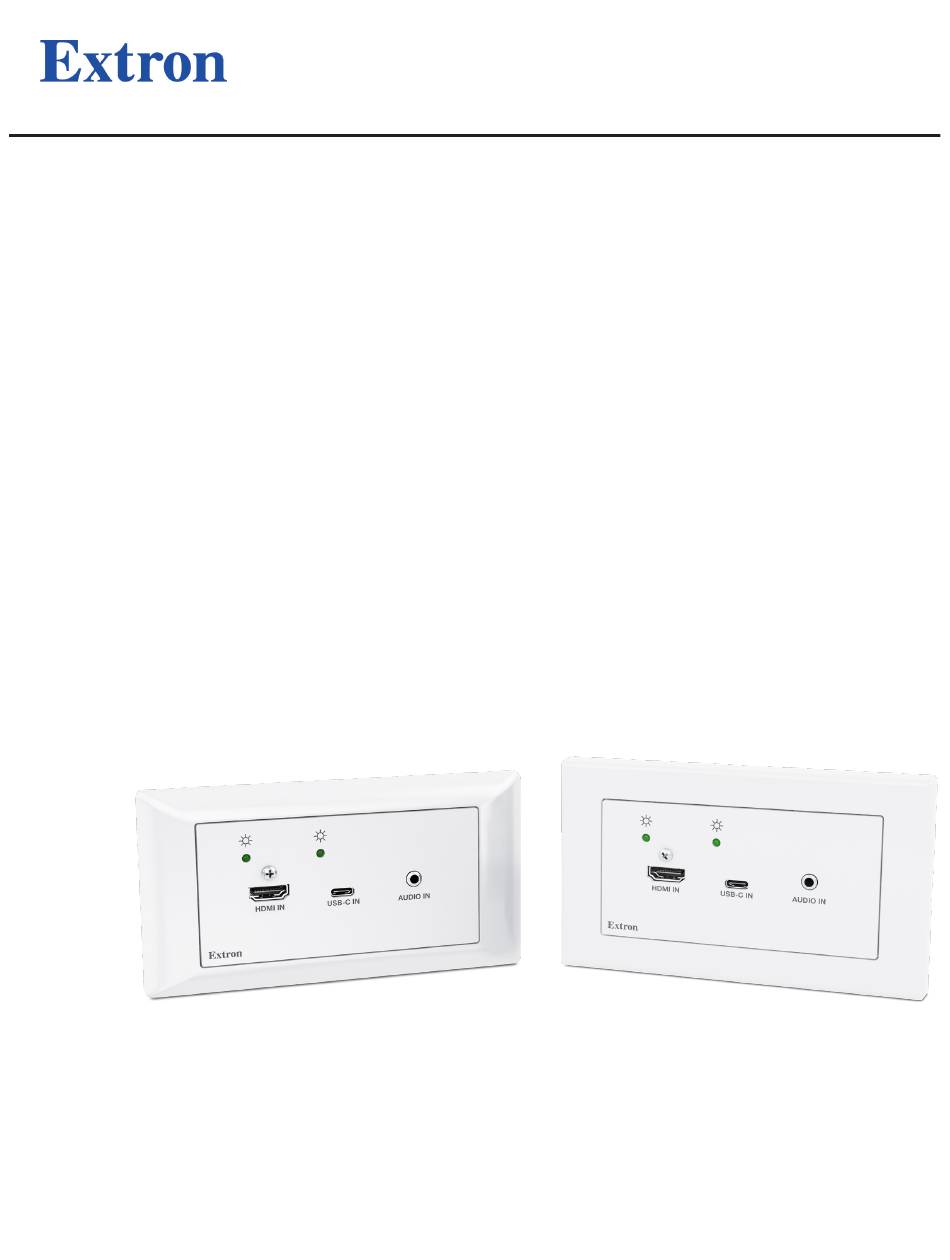

DTP3 T 202 EU/MK Two Input 4K/60 DTP3 Transmitter for USB-C and HDMI - for Flex55 and EU/MK Junction Boxes User Guide DTP Systems 68-3302-01, Rev. A 10 24...
Page 2
Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, WARNING: This symbol, , when used on the product, is intended to signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une alert the user of the presence of uninsulated dangerous voltage within the tension électrique dangereuse susceptible de provoquer un choc électrique.
Page 3
• 安全说明 简体中文 警告: 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电 压, 有触电危险。 注意: 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 用的特性等相关内容,敬请访问 Extron 网站 , www.extron.com,参见 Extron 安全 规范指南,产品编号 68-290-01 。 安全記事 • 繁體中文 안전 지침 • 한국어 警告: 若產品上使用此符號, 是為了提醒使用者, 產品機殼內存在未隔離的危險 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 電壓,...
Page 4
FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 5
Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0...
Page 7
Audio Mute ..............................18 Input Audio Format ............................19 Product Configuration Software ......................20 Software/Firmware Installation ..........................20 Connecting to PCS ............................22 Device Discovery Panel ..........................22 Offline Device Preview ..........................23 Software Overview ............................24 Software Menu .............................24 Device Menu ...............................26 DTP3 T 202 EU/MK • Contents...
Page 8
Host-to-Unit Instructions ..........................27 Device-Initiated Power-Up Message ......................27 Error Responses ............................28 Time out ...............................28 Unsolicited Responses ..........................28 Using the Command and Response Table ....................28 Symbol Definitions ............................29 Command and Response Table for SIS Commands ..................30 DTP3 T 202 EU/MK • Contents viii...
Page 9
RS-232 extension for remote device control. The DTP3 T 202 EU/MK supports HDMI 2.0b signals at data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, embedded HD lossless audio formats. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS-232 signals, to an HDBaseT™-enabled display.
Page 10
Compatible with CAT 6A shielded twisted pair cable • Support for HDR – High Dynamic Range video — The DTP3 T 202 EU/MK enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
Page 11
DTP3 T 202 EU/MK MLC 62 RS EU Receiver MediaLink Controller USB-C Video Laptop Figure 1. DTP3 T 202 EU/MK Typical Application Diagram (Meeting Room with Control) 4K Display with HDBaseT Input MODEL 80 Ethernet Extron IPL Pro S3 IPL PRO S3...
Page 12
HDMI IN USB-C IN AUDIO IN CAT 6A Cable Laptop up to 330' (100 m) Extron DTP3 T 202 EU/MK Transmitter Figure 3. DTP3 T 202 EU/MK Typical Application Diagram (Simple Automated 4K Meeting Space) DTP3 T 202 EU/MK • Introduction...
Page 13
Installation This section details the mounting and installation of the DTP3 T 202 EU/MK. Topics include: • Installation Overview • Site Preparation • Rear and Side Panel Features • Installing the Device • Front Panel Features • Connection Details Installation Overview To mount and connect the transmitter: 1.
Page 14
Afin d’éviter les court circuits, le blindage en aluminium extérieur peut être réduit jusqu’à ce que le câble sorte de la cosse de câble. Le blindage tressé et le blindage en aluminium devraient être connectés à la masse d’un équipement à l’autre bout du câble. DTP3 T 202 EU/MK • Installation...
Page 15
DTP3 T 202 EU/MK CONFIG Front Rear TP output Power inlet Configuration port DTP/HDBT toggle switch Over TP RS‑232 port Reset button Send Power toggle switch Remote RS‑232 port Figure 6. Rear and Side Panel Features DTP3 T 202 EU/MK • Installation...
Page 16
OFF position on the DTP3 unit receiving power. ATTENTION: • The DTP3 T 202 EU/MK is configured to output power to DTP3 models only. If connected to a non-DTP3 device, set the Send Power toggle switch to the OFF position. Failure to turn the power figure 7 off will damage the connected non-DTP3 device (see on page 9).
Page 17
Resetting the transmitter is running or while it is being powered up (see on page 18 for details). DTP3 T 202 EU/MK • Installation...
Page 18
• Use the included pry tool to extract the device D IO D IO from the mounting bracket. B -C B -C Mounting Frame DTP3 T 202 EU/MK Figure 10. Wall or Furniture Installation DTP3 T 202 EU/MK • Installation...
Page 19
A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring, and sleeve. Sleeve ( ) 3.5 mm Stereo Plug Connector (balanced) DTP3 T 202 EU/MK • Installation...
Page 20
RJ‑45 Pin Assignment for DTP Communication Supported cables The DTP3 T 202 EU/MK is compatible with shielded twisted pair (STP) and unshielded twisted pair (U/UTP) cable. However, Extron strongly recommends that you use STP cable to achieve best performance. ATTENTION: •...
Page 21
Power Supply Wiring figure 13 A 12 VDC, 2.0 A power supply is provided with the DTP3 T 202 EU/MK . Follow the instructions and page 14 to wire the provided 2-pole captive screw connector to your power supply. CAUTION: Risk of electric shock.
Page 22
Figure 13. Power Connection Wiring Over TP RS‑232 and Remote RS‑232 Wiring See figure 14 to wire the RS-232 ports. Ground (G) Receive (Rx) Transmit (Tx) Do not tin the wires! Figure 14. RS‑232 Wiring DTP3 T 202 EU/MK • Installation...
Page 23
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket ( 5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length ( DTP3 T 202 EU/MK • Installation...
Page 25
Operation This section describes the operation of the DTP3 T 202 EU/MK. Topics include: • Front and Rear Panel Indicators • Operation Front and Rear Panel Indicators SEND Tx Rx G Tx Rx G HDBT HDMI IN USB-C IN AUDIO IN...
Page 26
NOTE: The transmitter can also be reset to its factory default settings using SIS commands (see Reset page 33) or PCS (see the DTP3 T 202 EU/MK Help File). Reset Mode Summary Activation Result...
Page 27
The HDCP Authorized setting, configurable via SIS commands (see on page 31) or PCS (see the DTP3 T 202 EU/MK Help File), is for devices such as Mac computers, iPhones, iPads, and some Windows 7 sources that always encrypt their output, if the downstream sink is HDCP compliant.
Page 28
TMDS channel to the Tx. Select the audio on the input of the transmitter via SIS Input Audio Format command (see on page 32) or PCS (see the DTP3 T 202 EU/MK Help File). The audio input selections are: •...
Page 29
Product Configuration Software The DTP3 T 202 EU/MK can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the DTP3 T 202 EU/MK Help File for detailed control information). Topics include: •...
Page 30
For firmware, type in the name of the device into the Search Firmware field (see figure 19), and select the desired device. The selected firmware page opens below the search. NOTE: The desired device is not listed unless a firmware update is available. Figure 19. Firmware Download Center DTP3 T 202 EU/MK • Product Configuration Software...
Page 31
Device Discovery panel (see figure 20). Figure 20. Device Discovery Screen 3. Select the device by clicking on it to highlight it in the list ( 4. Click Connect ( DTP3 T 202 EU/MK • Product Configuration Software...
Page 32
(see the image below) has a grayed out indicator (circle) to indicate DTP3 T 202 EU that there is no device connected and the software is running in offline configuration mode. DTP3 T 202 EU/MK • Product Configuration Software...
Page 33
2. Click the Re-enable Confirmation Dialog button ( ). The dialog box closes and the re-enable is complete. Alternatively, click the Close button ( ) to close the dialog box without re-enabling the confirmation dialogs. DTP3 T 202 EU/MK • Product Configuration Software...
Page 34
2. Click the Details button ( ) for more information. 3. To display details about third-party software packages and associated licensing, click Licenses ( 4. Click OK ( ) to close the dialog box. DTP3 T 202 EU/MK • Product Configuration Software...
Page 35
• DTP3 T 202 EU/MK Help — Open the DTP3 T 202 EU/MK Help File in a separate window. • About this Module — Open the About This Module dialog box, with the module part number and firmware version of the connected device.
Page 36
SIS Configuration and Control Use Simple Instruction Set (SIS) commands to configure the DTP3 T 202 EU/MK. This section provides information about using those commands. The following topics are discussed: • Host Control Ports • Simple Instruction Set Control •...
Page 37
ASCII to Hex Conversion Table NOTE: For commands and examples of computer or device responses used in this guide, the character "0" is the number zero and "O" is the capital letter "o". DTP3 T 202 EU/MK • SIS Configuration and Control...
Page 38
2 = Analog = Output HDCP Mode 0 = Encrypt as required by input. Continuous trials for HDMI and DVI sinks (default). 1 = Always encrypt. Continuous trials for HDMI and DVI sinks. DTP3 T 202 EU/MK • SIS Configuration and Control...
Page 39
Set HDCP authorization both HDCP HdcpE inputs X@•X@] View HDCP authorization EHDCP status X@•X@] Verbose mode 2/3 HdcpE KEY: = Input ( = HDMI = USB-C = Status: = Disabled = Enabled (default) DTP3 T 202 EU/MK • SIS Configuration and Control...
Page 40
Set output UART port LRPT LrptO1* X1&] View output port setting O1LRPT X1&] Verbose mode 2/3 LrptO1* X1& KEY: = Serial UART Port configuration: = Over TP Pass through (default) = Host mode DTP3 T 202 EU/MK • SIS Configuration and Control...
Page 41
KEY: = DTP/HDBT Switch: = DTP mode = HDBT mode = Remote Power: = No remote power/off = DTP PLUS 48 VDC Reset Full Factory Reset ZXXX DTP3 T 202 EU/MK • SIS Configuration and Control...
Page 42
Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
