Reference Information

This section includes decorator-style wallplate template dimensions for installation of the
DTP2 T 201 D transmitters.

Decorator-style Wallplate Template Dimensions

Print this

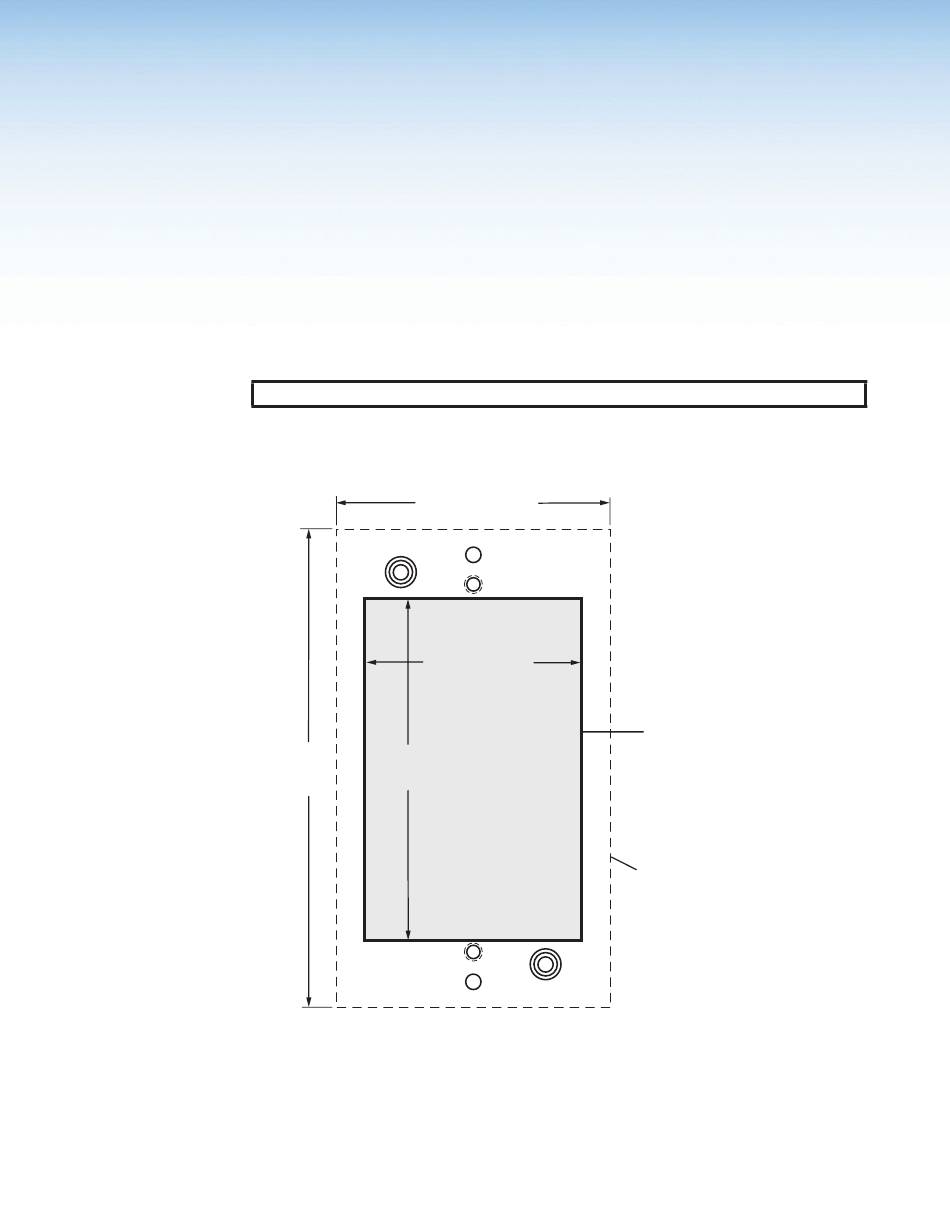

template To create a template, use the dimensions shown on figure 28.
NOTE: Full size templates are available online at www.extron.com.
at 100%
(10.87 cm)
Figure 28.
Please measure the printed template before cutting.
Template for the 1-gang
mounting bracket
2.45" (6.22 cm)
1.94" (4.93 cm)
4.28" 3.06"
(7.78 cm)
CUT-OUT AREA
FOR WALL MOUNT
Decorator-style Wallplate Template Dimensions
SURFACE
DTP2 T 201 D Transmitter • Reference Information
Recommended
cut-out area
for the installation
surface.
Top Panel
