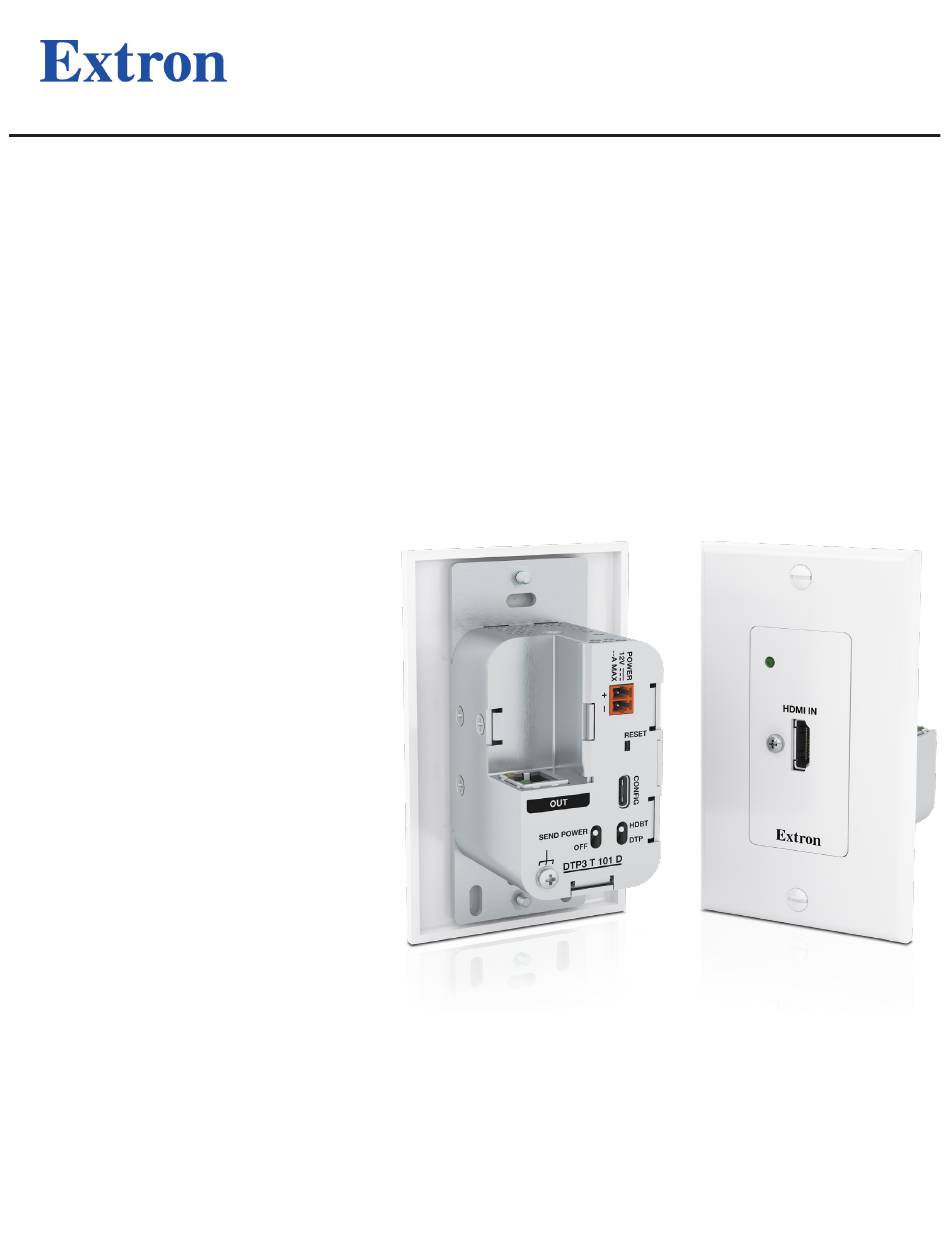

- Page 1 DTP3 T 101 D 4K/60 DTP3 Transmitter for HDMI — Decorator-Style Wallplate User Guide HDMI Extender 68-3706-01, Rev. A 01 24...
- Page 2 Safety Instructions...
- Page 3 Copyright © 2024 Extron. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ® , registered service marks( ), and trademarks( ) are the property of RGB Systems, Inc. or Extron Terms of Use page at www.extron.com): (see the current list of trademarks on the...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0...
-
Page 7: Table Of Contents
Product Configuration Software ....... 16 Software/Firmware Installation ......16 Connecting to PCS ..........18 Device Discovery Panel ........18 Offline Device Preview ........19 Software Overview ..........20 Software Menu ..........20 Device Menu ............ 22 DTP3 T 101 D • Contents... - Page 8 DTP3 T 101 D • Contents...
-
Page 9: Introduction
CATx cable to an Extron DTP‑enabled product. It supports video resolution up to 4096x2160 @ 60 Hz at 4:4:4 chroma sampling and complies with HDMI 2.0 and HDCP 2.3. The DTP3 T 101 D provides reliable transmission of HDMI signals. The one‑gang wall‑mountable design of the DTP3 T 101 D offers the convenience of placing input connections precisely where they are needed. - Page 10 Extron Everlast™ power supply included, replacement part # (70‑1259‑01) — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption. • Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty DTP3 T 101 D • Introduction...
-
Page 11: Application Diagram
Application Diagram The following diagram shows a typical application for a DTP3 T 101 D. Figure 1. Typical Application of the DTP3 T 101 D DTP3 T 101 D • Introduction... -
Page 12: Installation
Installation This section details the installation of the DTP3 T 101 D, including: • Mounting the Transmitter • Front and Rear Panel Connections • Conntection Details Mounting the Transmitter ATTENTION: • Installation and service must be performed by authorized personnel. - Page 13 Faceplate Figure 2. Typical DTP3 T 101 D Wall Installation 6. Feed the twisted pair cables and, if applicable, the power cables through the opening and through the wall box punch‑out holes, securing them with cable clamps to provide strain relief.
-
Page 14: Mud Ring Installation
2. Mount the transmitter into the wall box or mud ring, and attach the supplied decorator style faceplate to the unit (see figure 2 on page 5). 3. At the power outlet, reconnect the power supply. This powers up both units if the compatible receiver is connected. DTP3 T 101 D • Installation... -
Page 15: Front And Rear Panel Connections
TP output Reset button Figure 4. DTP3 T 101 D Front and Rear Panel Connections HDMI input — Connect an HDMI cable between this port and the HDMI output port of the digital video source (see LockIt HDMI Lacing Bracket Installation on page 12 to use the included Extron Lock‑It Lacing... - Page 16 ATTENTION: • The DTP3 T 101 D is configured to output power to DTP3 models only. If connected to a non‑ DTP3 device, set the SEND POWER toggle switch to the down (OFF) position. Failure to turn the power off will damage the connected non‑DTP3 device (see figure 5 on page 9).
- Page 17 Remote Power SEND RESET SIGNAL CONFIG HDCP CATx Cable DTP3 R 201 up to 330' (100 m) SEND POWER HDBT DTP3 T 101 D SEND POWER Local Power Supply Figure 5. Send Power Configuration DTP3 T 101 D • Installation...
-
Page 18: Conntection Details
Do not comb the cable for the first 65 feet (20 meters), where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook‑and‑loop fasteners. • Separate twisted pair cables from AC power cables. DTP3 T 101 D • Installation... -
Page 19: Power Supply Wiring
Power Supply Wiring Connect the provided 12 VDC, 1.5 A power supply to the DTP3 T 101 D. Follow the instructions and figure 7 page 12 to wire the provided 2-pole captive screw connector to your power supply. CAUTION: The DC output cables must be kept separate from each other while the power supply is plugged in. -
Page 20: Lockit Hdmi Lacing Bracket Installation
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket ( 5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length ( DTP3 T 101 D • Installation... -
Page 21: Operation
After the transmitter and the connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all cables are routed and connected properly. NOTE: The transmitter can be configured via PCS (see the DTP3 T 101 D Help File) and SIS commands (see SIS Configuration and Control on page 23). - Page 22 27). again at 6 sec., again at 9 sec.). Then release and press Reset momentarily (for <1 sec.) within 1 second. NOTE: Nothing happens if the momentary press does not occur within 1 second. DTP3 T 101 D • Operation...
-
Page 23: Hdcp
Input HDCP Authorized Device on page 26) or PCS (see the DTP3 T 101 D Help File), is for devices such as Mac computers, iPhones, iPads, and some Windows sources that always encrypt their output, if the downstream sink is HDCP compliant. -
Page 24: Product Configuration Software
Product Configuration Software The DTP3 T 101 D can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the DTP3 T 101 D PCS Help File for detailed control information). Topics include: •... - Page 25 To install via PCS, see Update Firmware in the Device Menu on page 22. b. To install via Firmware Loader, see the Install Firmware topic in the Firmware Loader Help File. DTP3 T 101 D • Proudct Configuration Sotware...
-
Page 26: Connecting To Pcs
Device Discovery panel (see figure 13). Figure 13. Device Discovery Screen 3. Select the DTP3 T 101 D device by clicking on it to highlight it in the list ( 4. Click Connect ( DTP3 T 101 D • Proudct Configuration Sotware... -
Page 27: Offline Device Preview
(see the image below) has a grayed out indicator (circle) to indicate DTP3 T 101 D that there is no device connected and the software is running in offline configuration mode. DTP3 T 101 D • Proudct Configuration Sotware... -
Page 28: Software Overview
Software Overview NOTE: For details about specific software features, see the DTP3 T 101 D Help File. Software Menu The software menu contains options pertaining to PCS settings (see figure 16). Figure 16. Software Menu Show Expanded Device Tabs Selecting Show Expanded Device Tabs from the software menu displays the device IP address or connection method in the Device tab (see figure 17). - Page 29 2. Click the Close Session(s) and Exit button ( ) to disconnect the software from connected devices, close all offline device tabs, and close the software. Alternatively, click the Cancel button ( ) to leave the software open. DTP3 T 101 D • Proudct Configuration Sotware...
-
Page 30: Device Menu
NOTE: The connected devices must be connected via LAN. • DTP3 T 101 D Help — Open the DTP3 T 101 D Help File in a separate window. • About this Module — Open the About This Module dialog box, with the module part number and firmware version of the connected device. -
Page 31: Sis Configuration And Control
SIS Configuration and Control Use Simple Instruction Set (SIS) commands to configure the DTP3 T 101 D. This section provides information about using those commands. The following topics are discussed: • Host Control Port • Simple Instruction Set Control •... -
Page 32: Unsolicited Responses
1 = No video detected with HDCP 2 = Video detected without HDCP Output HDCP status 0 = No active sink detected 1 = Sink detected, output not encrypted 2 = Sink detected, output encrypted DTP3 T 101 D • SIS Configuration and Control... - Page 33 (‑). No blank or space characters are permitted as part of a name. The first letter must be a letter, and the last character must nto be a minus sign/hyphen. The factory default is "DTP3‑T‑101‑D." Part Number: 60-1902-52, 60-1902-53 EDID Minder 1 = Input 1 (HDMI) DTP3 T 101 D • SIS Configuration and Control...
-
Page 34: Command And Response Table For Sis Commands
Audio Mute Mute embedded audio X& X&] X&] View mute status Verbose mode 2/3 X&] X& KEY: = Audio mute: = Off, disabled, or unmute (default) = On, enabled, or muted DTP3 T 101 D • SIS Configuration and Control... - Page 35 -Thus, 14 Jul 2022 23:18 UTC> KEY: = Status: = Disable = Enable = DTP/HDBT switch status: = DTP mode = HDBT mode 60-1902-52 60-1902-53 = Part number: Reset Total factory reset ZXXX DTP3 T 101 D • SIS Configuration and Control...
-
Page 36: Reference Information
Reference Information This section incldues decorator‑style wallplate template dimensions for installation of the DTP3 T 101 D. Decorator‑Style Wallplate Template Dimensions To create a template, use the dimensions shown on figure 23. NOTE: Figure 23 is not full size or to scale. Do not scale up or print to use as a template. Full size templates are available online at www.extron.com. - Page 37 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
