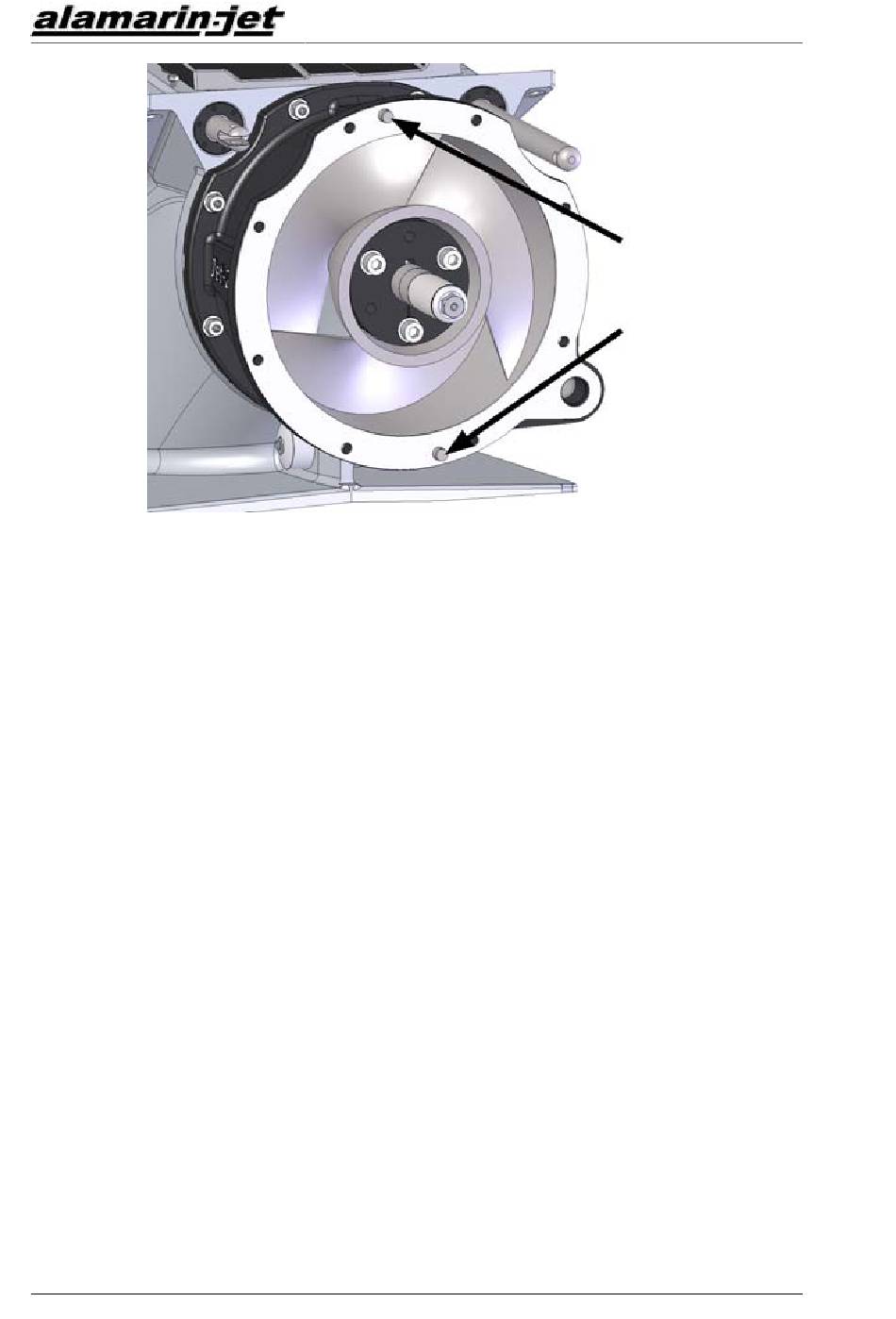

Figure 94. Installing the stator
2. Clean the end of the impeller shaft and push the stator into place so that
the shaft end enters the rear bearing housing and the dowel pins enter the
holes that are intended for them.
3. Tighten the screws evenly to a torque of 46 Nm.
4. Finish the installation by connecting the rear bearing lubrication hose to
the stator angle fitting.
70
Stator
Repair manual
KM/285/EN/1.1.0
