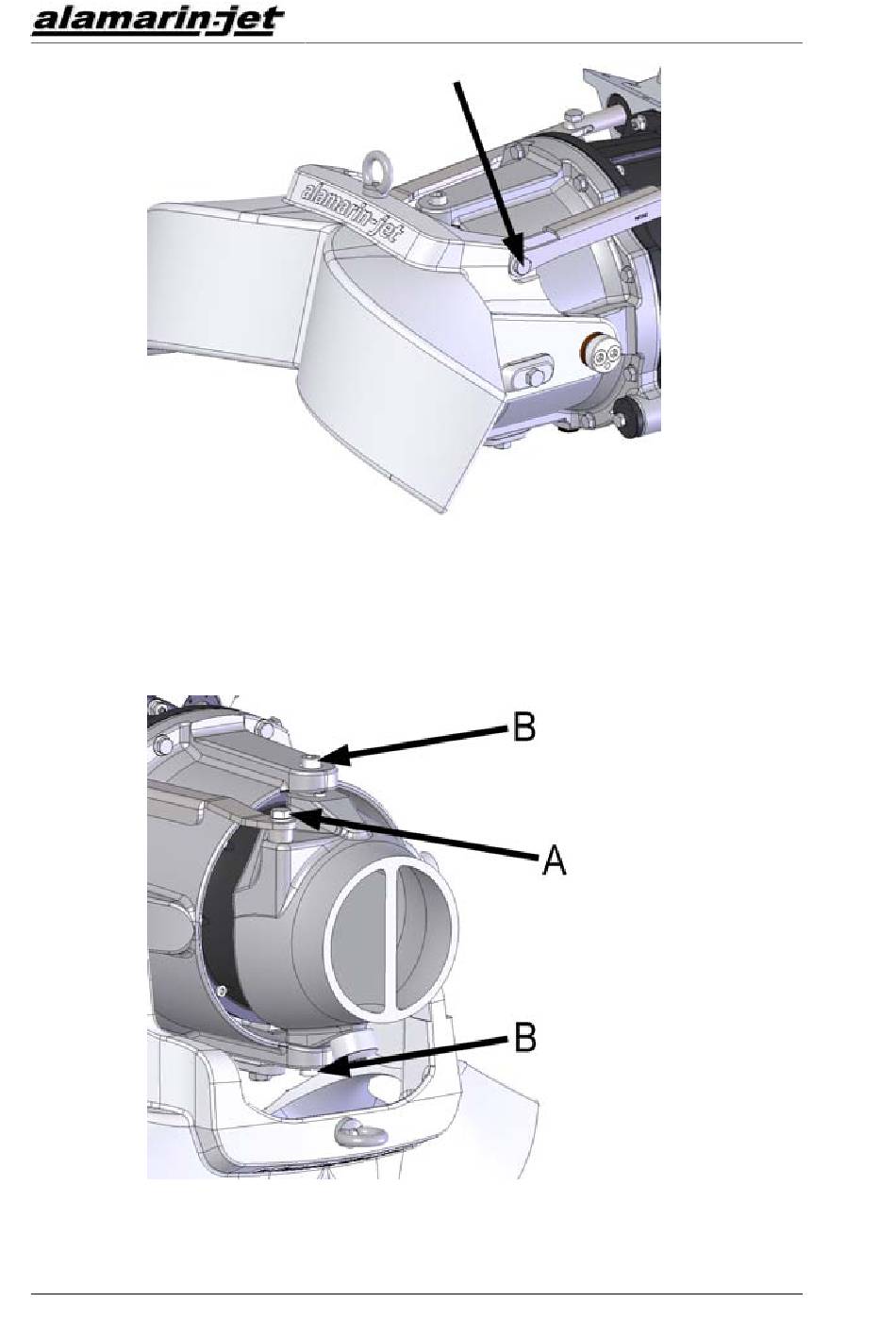

Figure 82. Reversing deflector intermediate bar connection
2. Detach the steering cylinder connection from the steering nozzle (figure
83, point A).
3. Open the steering nozzle joint screws (figure 83, point B).
Figure 83. Removing the steering nozzle
60
Steering nozzle and actuating cylinder
KM/285/EN/1.1.0
Repair manual
