Repairing The Cylinder - Alamarin Jet COMBI-FRAME AJ 285 Repair Manual

Reversing deflector and operating hydraulics
Repair manual

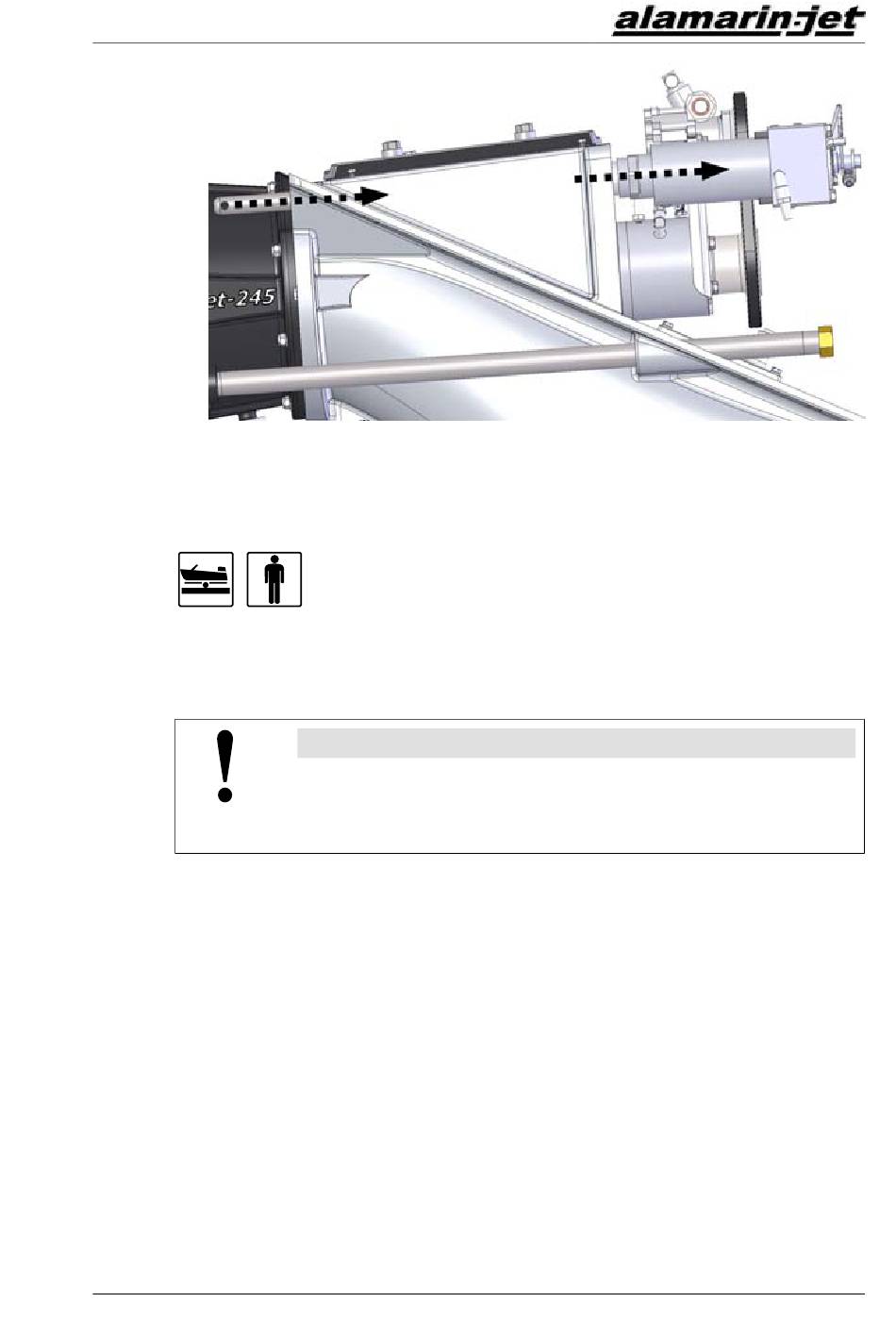

Figure 60. Pushing the cylinder
4.2.2. Repairing the cylinder
Worn or damaged parts of the cylinder can be replaced.
The product code for the sealing kit is P9904.
The cylinder rear end seal (figure 61, point A) is a wearing part and must be
replaced regularly. The replacement can be performed with the cylinder in
place.
The seal sleeve must be replaced as an assembly as disconnecting the seal
damages the seal groove. The sleeve is also subjected to wear when the
cylinder is operated.
The code for the seal sleeve kit is P9909.
Replacing the cylinder rear end seal:
1. Open the cylinder's intermediate bar joint screw if the cylinder is closed
(figure 61, point B).
KM/285/EN/1.1.0
NOTE!
Only a person with appropriate training is allowed to open the
cylinder or carry out the maintenance and repair operations of
the cylinder.
45
