Reversing deflector and operating hydraulics
Repair manual

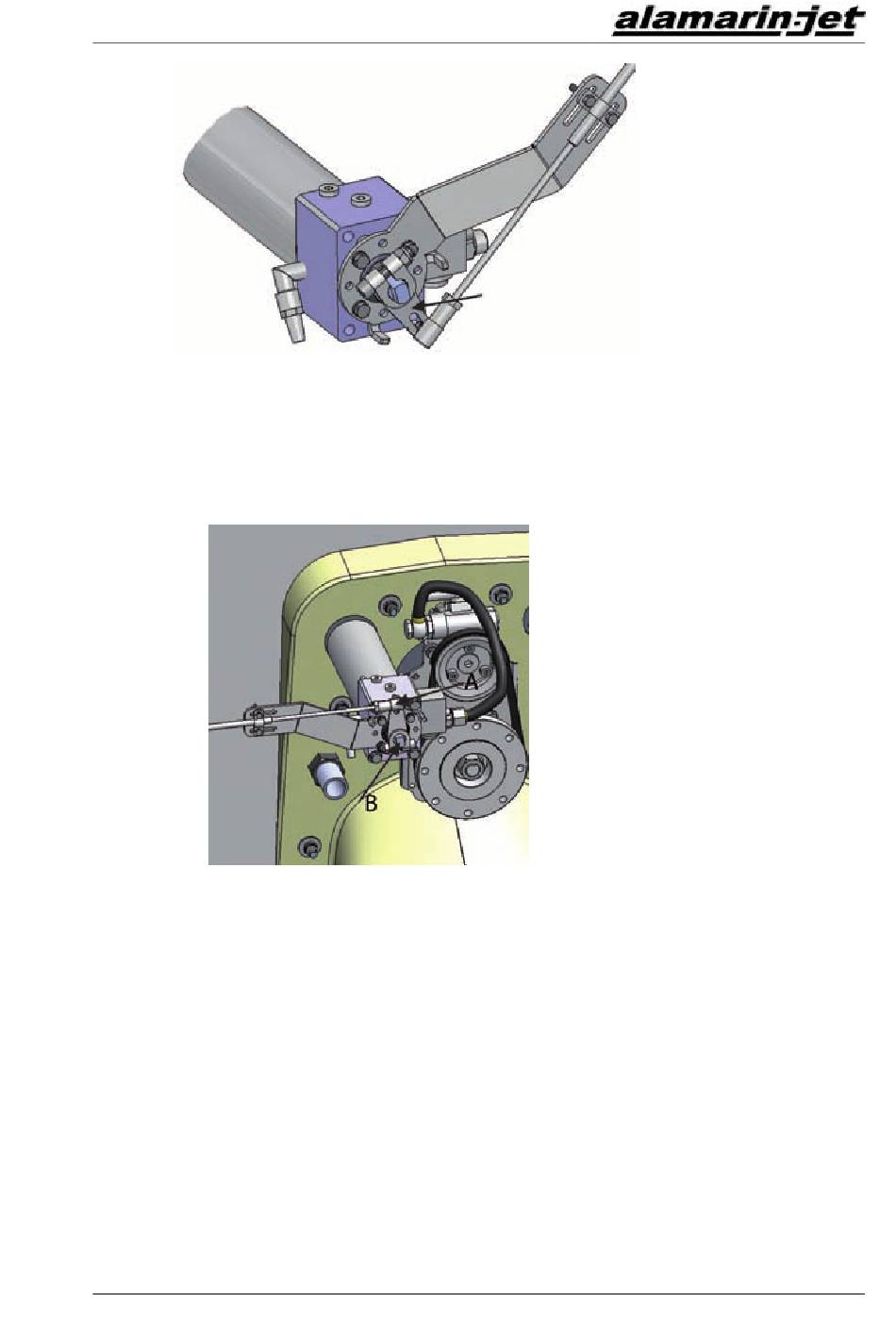

Figure 67. Operating lever
Adjusting the cylinder:
1. Detach the control cable from the end of the cylinder operating lever
(figure 68, point A).
Figure 68. Removing the control cable
2. Loosen the operating lever screw (figure 68, point B) but do not pull the
lever off the shaft yet.
3. Place the lever against the limiter on the shaft (figure 69, point A).
