2. Make sure the seal is tight by spreading sealing compound (such as
Sikaflex 291i) on the shoulder (figure 25) at the o-ring.

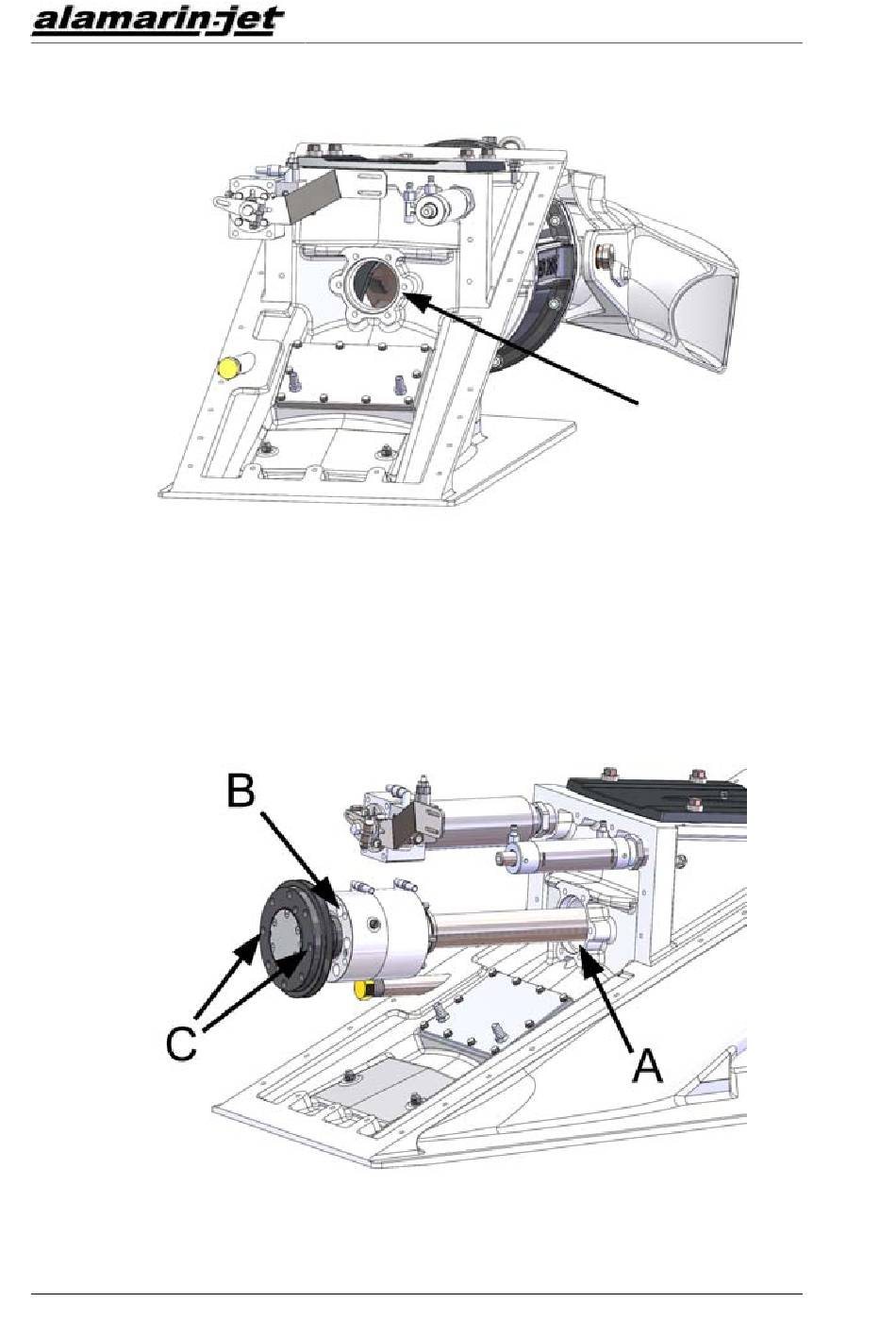

Figure 25. Shoulder
3. Push the shaft bearing into place through the hole in the jet's frame (figure
26, point A) and tighten the bearing housing fastening screws (6 pcs,
figure 26, point B) through the holes in the drive flange using a long Allen
wrench (figure 26, point C). Use a thread locking compound (such as
Loctite 242).
The tightening torque of the screws is 46 Nm.
Figure 26. Attaching the bearing housing
4. Install the impeller (section 3.4.
18
Installing the impeller
Main shaft and bearing
Repair manual
, page 30).
