Steering nozzle and actuating cylinder
Repair manual

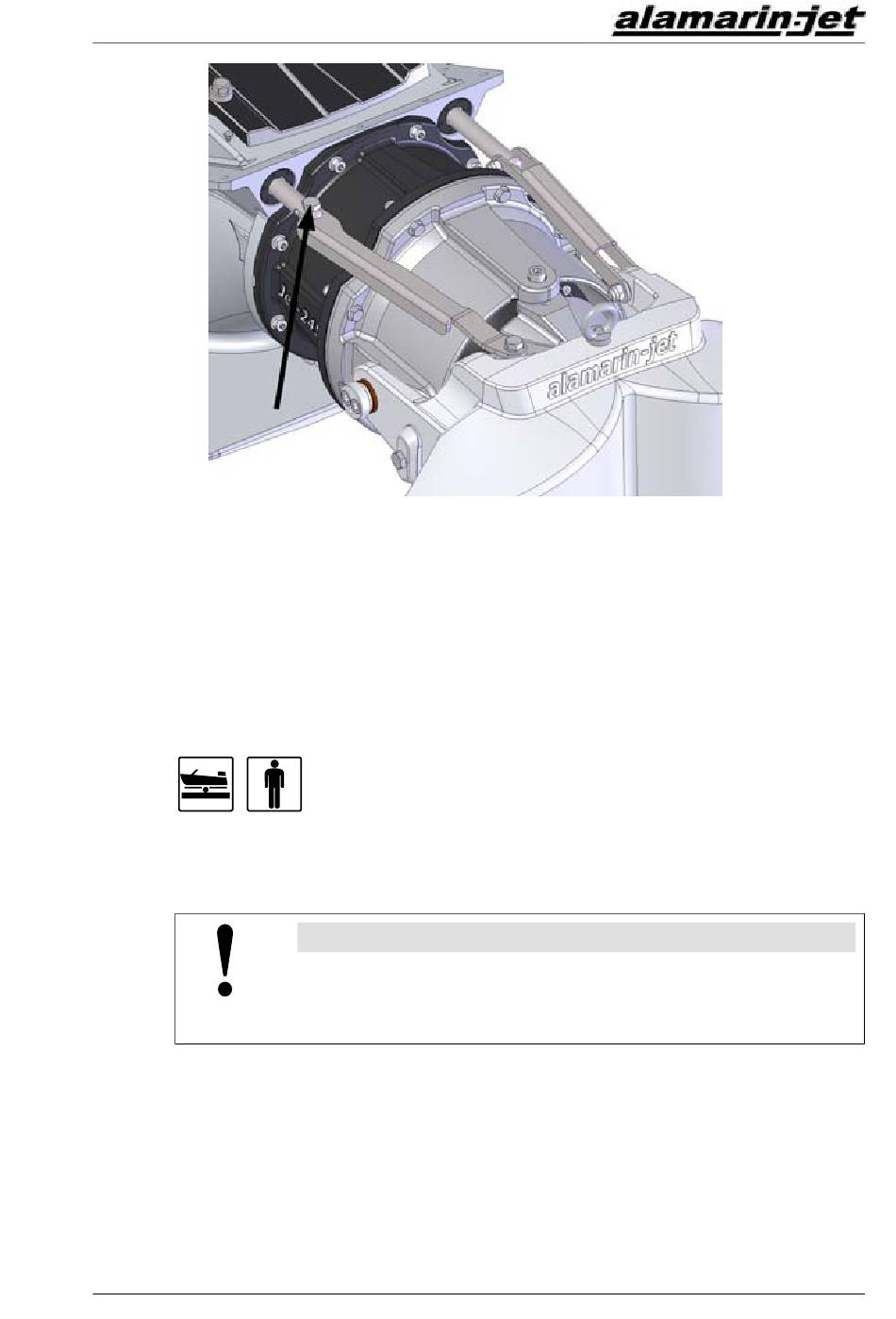

Figure 86. Connection between the steering cylinder intermediate
bar and piston rod
3. Open the fastening nut of the cylinder (figure 85, point B).
If the opening is not possible with normal tools, you can use special tool
10718.
4. Unscrew the cylinder from the jet's frame towards the engine room.
5.2.2. Repairing the control cylinder
Worn or damaged parts of the cylinder can be replaced.
The product code for the sealing kit is P9908.
The cylinder rear end seal (figure 61, point A) is a wearing part and must be
replaced regularly. The replacement can be performed with the cylinder in
place.
The seal sleeve must be replaced as an assembly as disconnecting the seal
damages the seal groove. The sleeve is also subjected to wear when the
cylinder is operated.
The code for the seal sleeve kit is P9909.
KM/285/EN/1.1.0
NOTE!
Only a person with appropriate training is allowed to open the
cylinder or carry out the maintenance and repair operations of
the cylinder.
63
